5i25+7i76 Spindle and Encoder Setup

More
22 Jan 2015 11:26 - 22 Jan 2015 11:27 #55258 by PCW
Yuck thats pretty ugly.
If you have a way to disable the spindle,
it should be possible using the scale component
Last edit: 22 Jan 2015 11:27 by PCW.

Please Log in or Create an account to join the conversation.

More

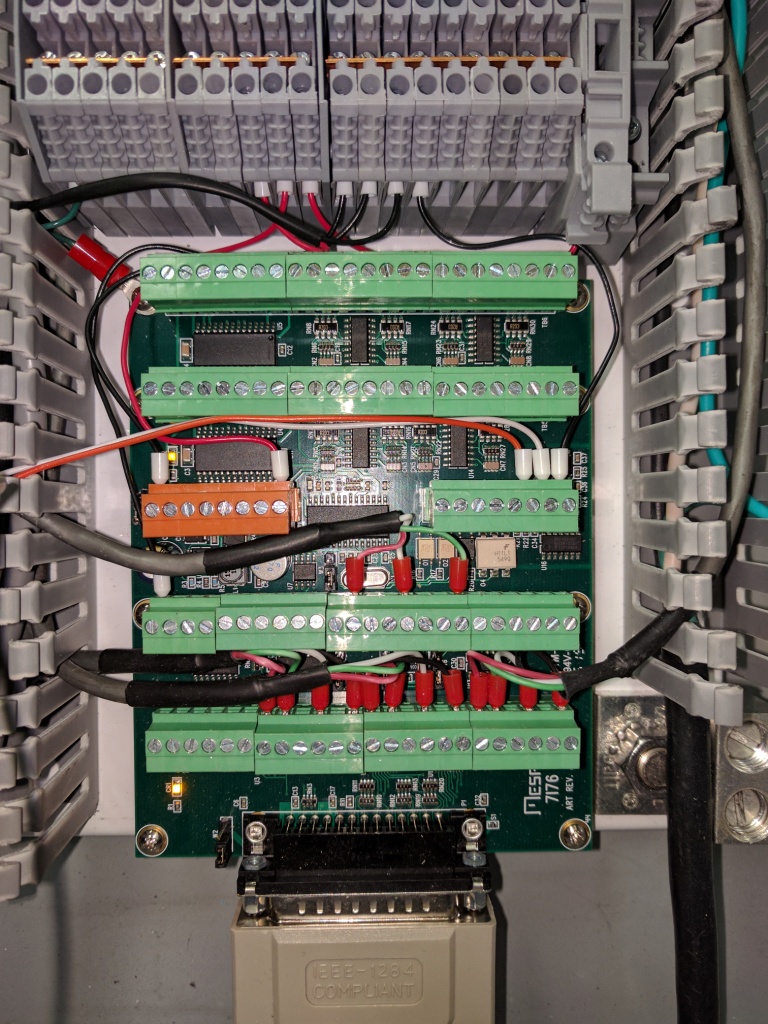

02 Jan 2017 15:23 #85076 by sg
Hello,
I'm relatively new to Mesa Cards and LinuxCNC so I'd appreciate any help. I'm trying to resolve issues setting up the 5i25 + 7i76 boards for spindle control and encoder feedback. I've put together a HAL and INI files using both PNCconfig and manually updating the files based on what I've been able to find on the forums here. The encoders are single ended, A, B, and Index on a 100 count pulse wheel. I've attached below the error message I receive from LinuxCNC when I try to run. Corresponding HAL and INI files are also attached below.

Regards,

Error Message
Print file information:
RUN_IN_PLACE=no
LINUXCNC_DIR=
LINUXCNC_BIN_DIR=/usr/bin
LINUXCNC_TCL_DIR=/usr/lib/tcltk/linuxcnc
LINUXCNC_SCRIPT_DIR=
LINUXCNC_RTLIB_DIR=/usr/realtime-3.4-9-rtai-686-pae/modules/linuxcnc
LINUXCNC_CONFIG_DIR=
LINUXCNC_LANG_DIR=/usr/share/linuxcnc/tcl/msgs
INIVAR=inivar
HALCMD=halcmd
LINUXCNC_EMCSH=/usr/bin/wish8.5
LINUXCNC - 2.7.0
Machine configuration directory is '/home/steven/linuxcnc/configs/my_LinuxCNC_machine'
Machine configuration file is 'my_LinuxCNC_machine.ini'
INIFILE=/home/steven/linuxcnc/configs/my_LinuxCNC_machine/my_LinuxCNC_machine.ini
PARAMETER_FILE=linuxcnc.var
TASK=milltask
HALUI=halui
DISPLAY=axis
Starting LinuxCNC...
Starting LinuxCNC server program: linuxcncsvr
Loading Real Time OS, RTAPI, and HAL_LIB modules
Starting LinuxCNC IO program: io
Starting HAL User Interface program: halui
Found file(REL): ./my_LinuxCNC_machine.hal
Shutting down and cleaning up LinuxCNC...
Running HAL shutdown script
Killing task linuxcncsvr, PID=5348
Removing HAL_LIB, RTAPI, and Real Time OS modules
Removing NML shared memory segments

Debug file information:
.
HAL: ERROR: function 'abs.spindle_output' not found
./my_LinuxCNC_machine.hal:22: addf failed
5348
