7i92 cnc motion controller from aliexpress?
- Reyes
- Offline
- New Member
-
Less
More
- Posts: 5
- Thank you received: 0
12 Nov 2025 11:22 #338240
by Reyes

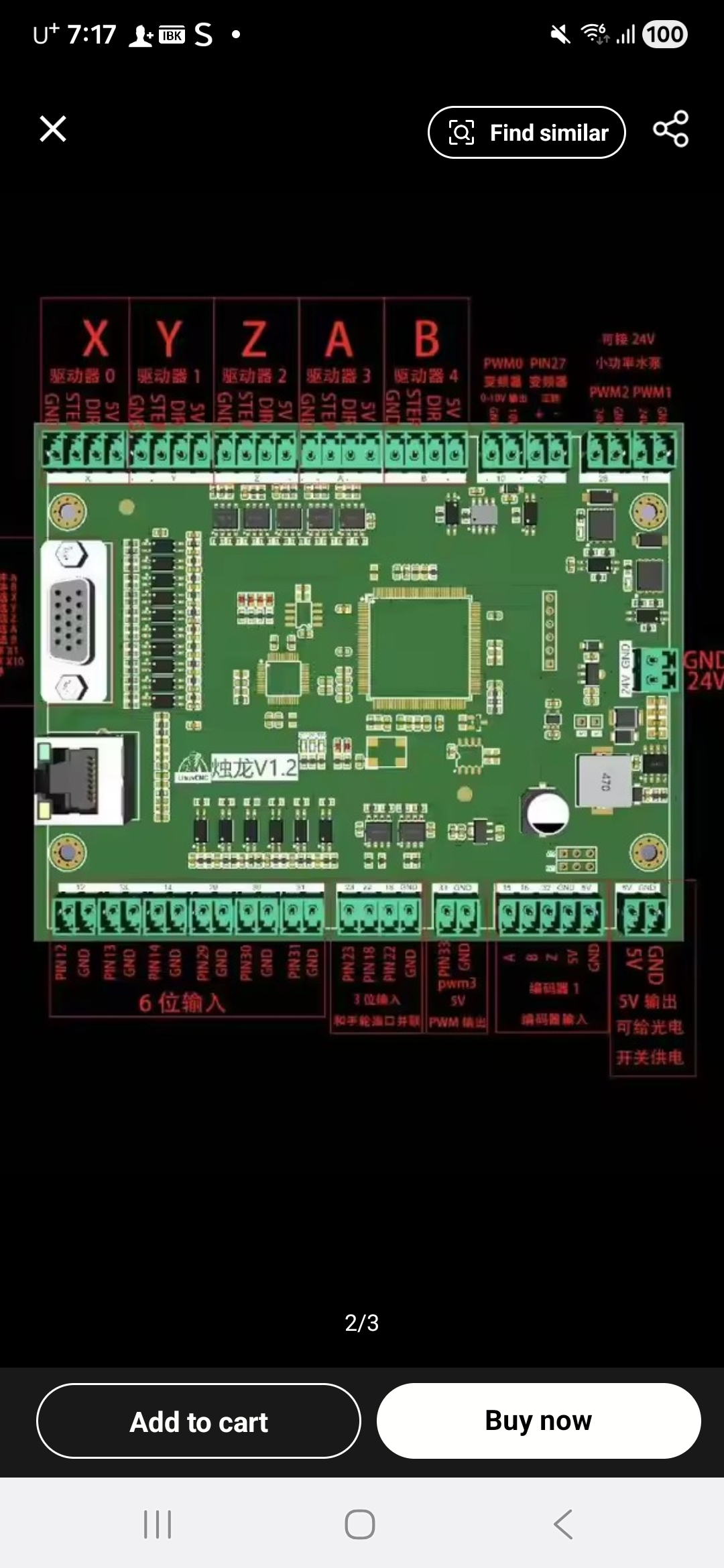

7i92 cnc motion controller from aliexpress? was created by Reyes
Attachments:
Please Log in or Create an account to join the conversation.
- andypugh
-
- Away
- Moderator
-
Less
More
- Posts: 19697
- Thank you received: 4565
12 Nov 2025 13:50 #338248
by andypugh
Replied by andypugh on topic 7i92 cnc motion controller from aliexpress?
Do you have a link? I have no idea what that is (it isn't a 7i92) but I do see a little "LinuxCNC" logo so possibly it is a clone.
Except to be a clone there would need to be an FPGA chip in that big pad array in the middle.
The "real" 7i92 is here:
store.mesanet.com/index.php?route=produc...t_id=378&search=7i92
or here:
eusurplus.com/index.php?route=product/pr...t_id=168&search=7i92
Is it this one?
www.aliexpress.com/item/1005010164851154.html
I would probably pay the extra for Mesa support and warranty.
Except to be a clone there would need to be an FPGA chip in that big pad array in the middle.
The "real" 7i92 is here:
store.mesanet.com/index.php?route=produc...t_id=378&search=7i92
or here:
eusurplus.com/index.php?route=product/pr...t_id=168&search=7i92
Is it this one?
www.aliexpress.com/item/1005010164851154.html
I would probably pay the extra for Mesa support and warranty.
Please Log in or Create an account to join the conversation.
- bevins
-
- Offline
- Platinum Member
-
Less
More
- Posts: 1942
- Thank you received: 338
12 Nov 2025 17:19 #338262
by bevins
Replied by bevins on topic 7i92 cnc motion controller from aliexpress?
It is cheaper to get the real ones from Mesa.
Please Log in or Create an account to join the conversation.
- unknown
- Offline
- Platinum Member
-
Less
More
- Posts: 790
- Thank you received: 261
12 Nov 2025 19:46 #338279
by unknown
Replied by unknown on topic 7i92 cnc motion controller from aliexpress?
Depends where you live in this big old world. I've seen 7i92 clones boards on AliExpress that are the same as the original 7i92. To get one Down Under is more or less 80 - 100 AUD, which is more or less the postage alone.
Now here's comes what would be done hypocrisy on my part. Whilst I have built a 7c81 / 7i90 clone using a Spartan 6 Dev board and some custom PCBs, I wouldn't buy a clone from AliExpress, due to the Mesa cards I've bought being solid and reliable and PCW being so supportive to all and the help he gave with my endeavours. I know it sounds strange.
I feel these boards and people asking for support may be a topic that could be divisive.
Now here's comes what would be done hypocrisy on my part. Whilst I have built a 7c81 / 7i90 clone using a Spartan 6 Dev board and some custom PCBs, I wouldn't buy a clone from AliExpress, due to the Mesa cards I've bought being solid and reliable and PCW being so supportive to all and the help he gave with my endeavours. I know it sounds strange.
I feel these boards and people asking for support may be a topic that could be divisive.
Please Log in or Create an account to join the conversation.
- Reyes
- Offline
- New Member
-
Less
More
- Posts: 5
- Thank you received: 0
12 Nov 2025 22:03 #338290
by Reyes
Replied by Reyes on topic 7i92 cnc motion controller from aliexpress?
Yes sir this one from aliexpress
www.aliexpress.com/item/1005010164851154.html
www.aliexpress.com/item/1005010164851154.html
Please Log in or Create an account to join the conversation.
- Reyes
- Offline
- New Member
-
Less
More
- Posts: 5
- Thank you received: 0
12 Nov 2025 22:05 #338291
by Reyes
Replied by Reyes on topic 7i92 cnc motion controller from aliexpress?
Yes that one sir
Please Log in or Create an account to join the conversation.
- unknown
- Offline
- Platinum Member
-
Less
More
- Posts: 790
- Thank you received: 261
12 Nov 2025 22:13 #338292
by unknown
Replied by unknown on topic 7i92 cnc motion controller from aliexpress?
Can you not message the vendor for any documents ?
Unless someone else has one and is willing to share their experiences, you're venturing into unknown territory.
If it does run 7i92 firmware any threads relating to 7i92 setup should suffice.
Unless someone else has one and is willing to share their experiences, you're venturing into unknown territory.
If it does run 7i92 firmware any threads relating to 7i92 setup should suffice.
Please Log in or Create an account to join the conversation.
- langdons
-
- Offline
- Platinum Member
-
Less
More
- Posts: 734
- Thank you received: 82
13 Nov 2025 17:32 #338322
by langdons
Replied by langdons on topic 7i92 cnc motion controller from aliexpress?
Can you post a picture of the actual board.
(A picture you took)
Pictures on aliexpress are not known for being trustworthy, though sometimes they actually are.
(A picture you took)
Pictures on aliexpress are not known for being trustworthy, though sometimes they actually are.
Please Log in or Create an account to join the conversation.
- unknown
- Offline
- Platinum Member
-
Less
More
- Posts: 790
- Thank you received: 261
14 Nov 2025 01:35 #338336
by unknown
Replied by unknown on topic 7i92 cnc motion controller from aliexpress?
One thing to look out for in Mesa's design of the 7i92 fet bus switches were used for translation between 3.3 to 5v. I think I can recall PCW saying that they were never intended to drive any loads directly but through at the least a buffer or more likely through a breakout board.
Another thing is, if the vendor has changed any pin assignments and have not provided a ucf file the only way to find out pin assignments would be via JTAG, the easier method of via direct probing of pins, which isn't a lot of fun with the pin spacing of the FPGA. Not knowing the in assignments would make modifying the firmware somewhat difficult at best.
So there could be some gotchas for new players.
Another thing is, if the vendor has changed any pin assignments and have not provided a ucf file the only way to find out pin assignments would be via JTAG, the easier method of via direct probing of pins, which isn't a lot of fun with the pin spacing of the FPGA. Not knowing the in assignments would make modifying the firmware somewhat difficult at best.
So there could be some gotchas for new players.
