AFAIK the pocket routine is finished and working. Testing would be nice.

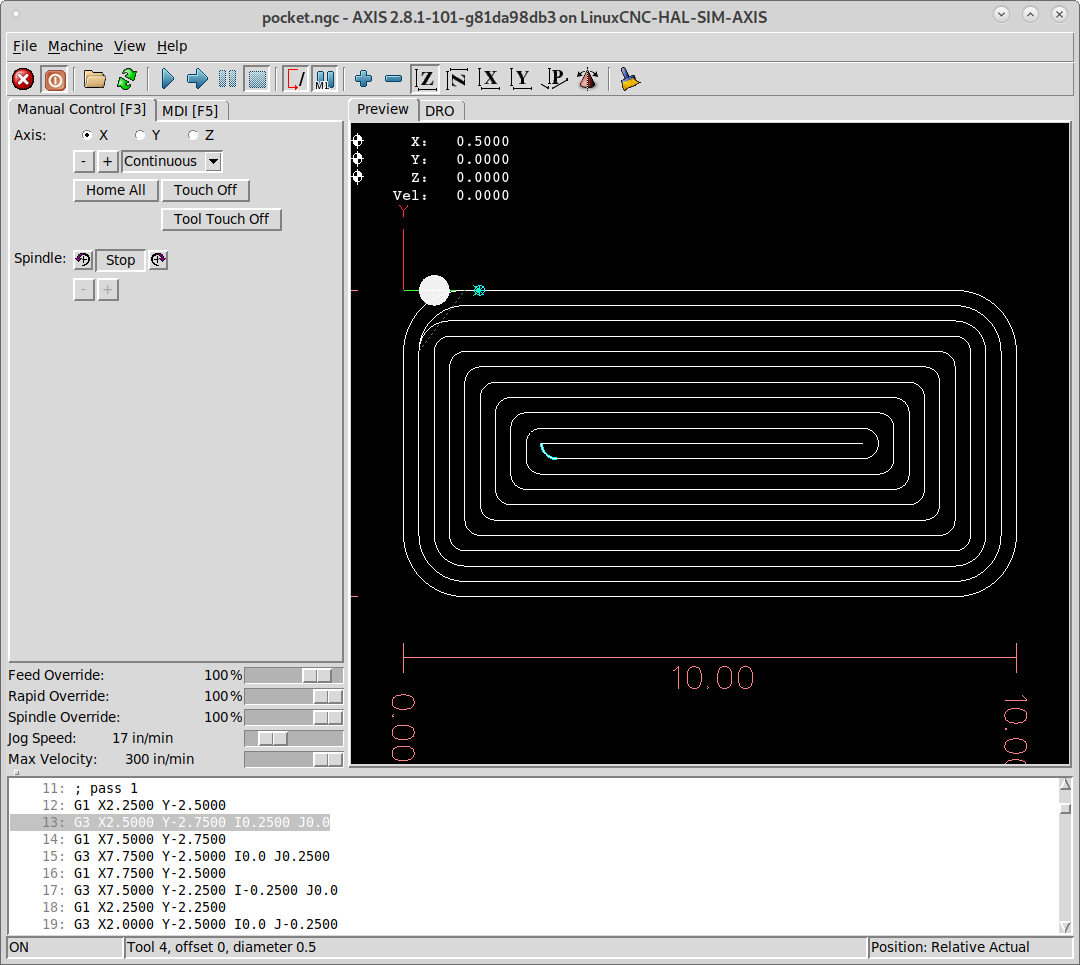

The path is rapid to safe z then rapid to the start point then feed down to the top of the material and then ramp down to the first z depth then keeping the cutter fully engaged in the material by using arcs on the corners cut the pocket. As the cutter gets to the point where larger arcs are needed to finish up the pocket the arcs start to increase.

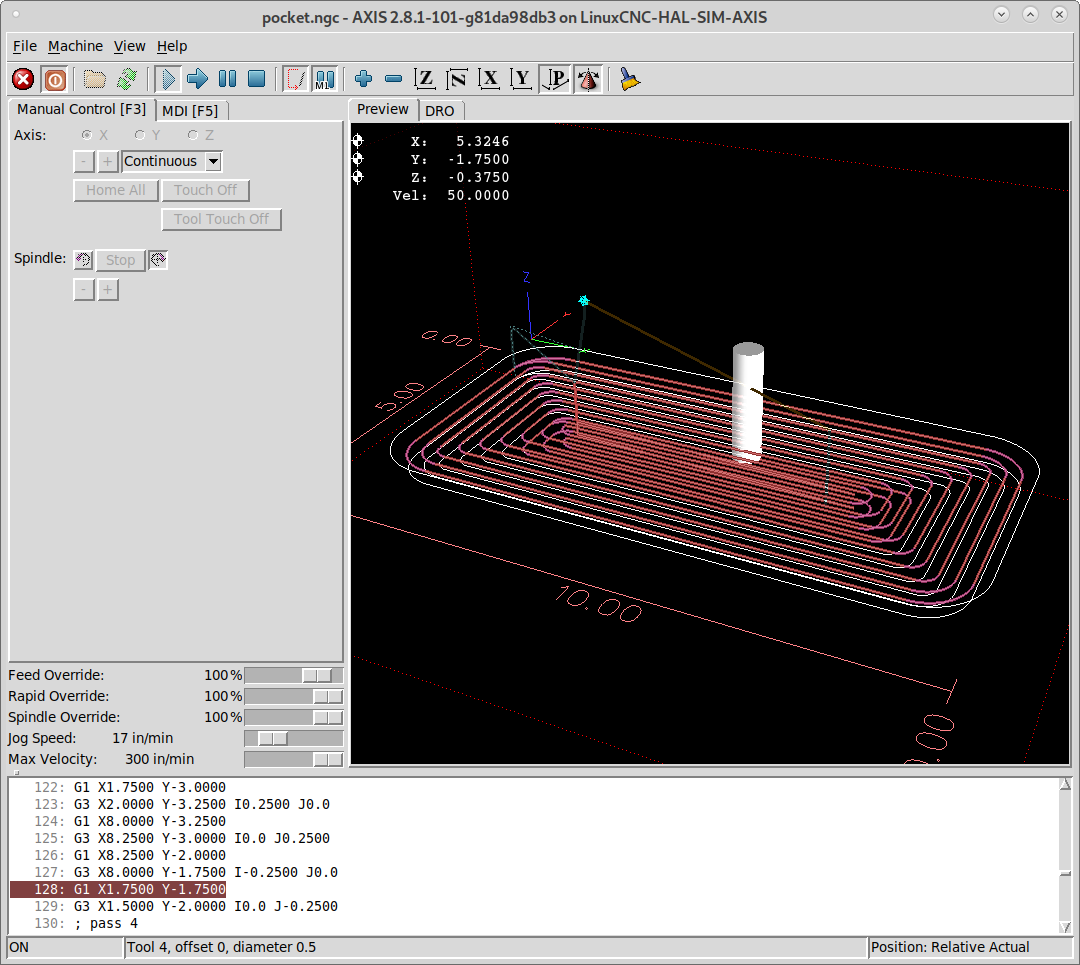

While testing I also put the finished pocket path so I can see that the pocket is cut properly and that's why you see the outer path.
JT
The path is rapid to safe z then rapid to the start point then feed down to the top of the material and then ramp down to the first z depth then keeping the cutter fully engaged in the material by using arcs on the corners cut the pocket. As the cutter gets to the point where larger arcs are needed to finish up the pocket the arcs start to increase.
While testing I also put the finished pocket path so I can see that the pocket is cut properly and that's why you see the outer path.
JT
Attachments:
Last edit: 07 Jun 2021 07:39 by BigJohnT.
The following user(s) said Thank You: tommylight, itsme
Please Log in or Create an account to join the conversation.
- BigJohnT
-
Topic Author
- Offline
- Administrator
-
Less
More
- Posts: 3981
- Thank you received: 994
11 Jun 2021 06:33 - 11 Jun 2021 06:35 #211799
by BigJohnT
Replied by BigJohnT on topic G code Generators

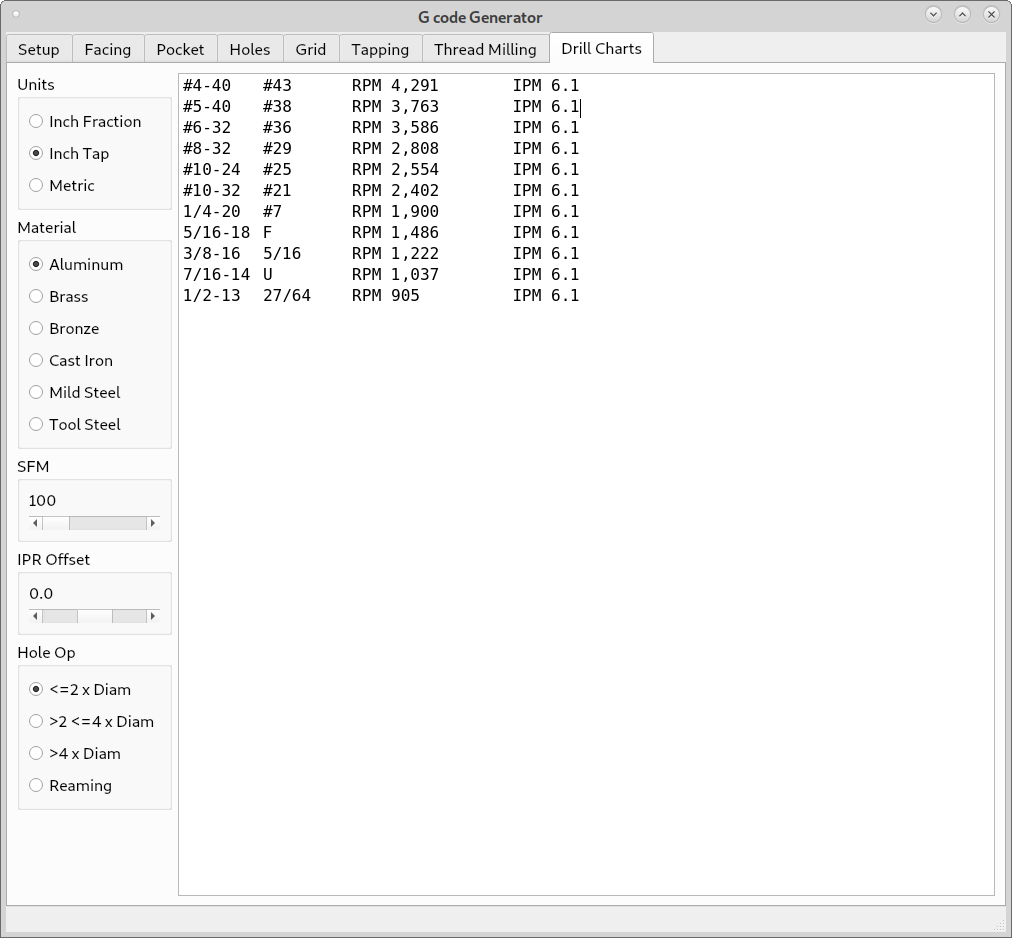

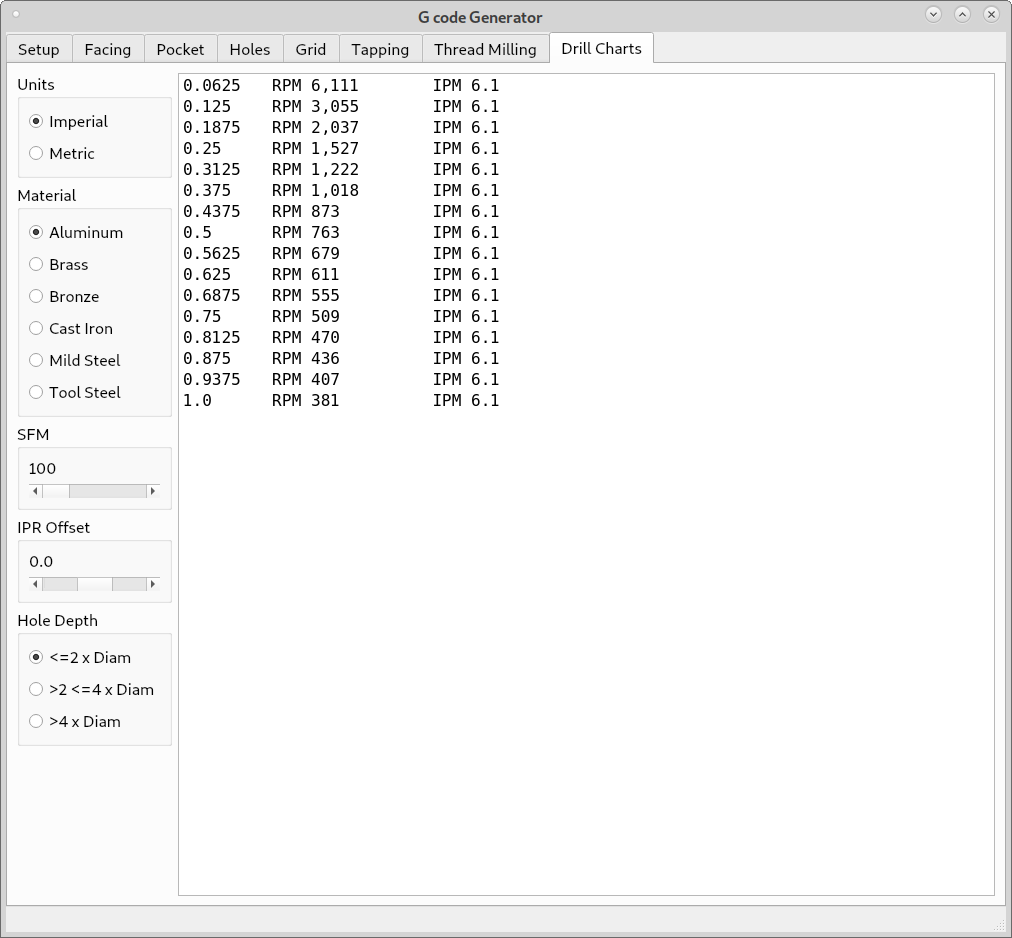

I added drilling speed and feed calculators. In the past my speed and feed calculators while correct were clunky and required typing in numbers. I wanted to change that and make an easier way to get rpm and feed for drilling ops. So this one you select units and material and adjust the sliders for SFM or SMM you want and IPR (still need to fix MPR) offset for feed and lastly you can pick the depth of the hole times the diameter for a reduction in speed and feed for deeper holes. I'm not really sure how to offset the feed per rev on metric, for imperial it's 0.001" per 1/16" +- 0.001" on the total.
JT
JT
Attachments:
Last edit: 11 Jun 2021 06:35 by BigJohnT.
