15 Jan 2021 21:19 #195488 by mooser
I currently have my screen and keyboard on a semi-articulated arm that is bolted to the wall near the tailstock end of the lathe (SM series 2000)

That location tends to work better for me than when I had it up on the headstock end.

I need to move the wall mount and I'm thinking I'd like to see what others have for their setup incase something jumps out at me rather than what I have now

So post up whatever/however you have your monitor/keypad/mpg for your lathes
M

Please Log in or Create an account to join the conversation.

More
19 Jan 2021 10:28 #195877 by rodw

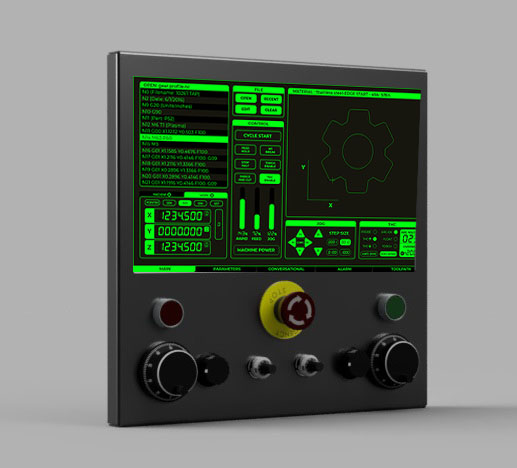

This is my concept

And how far as I've got.

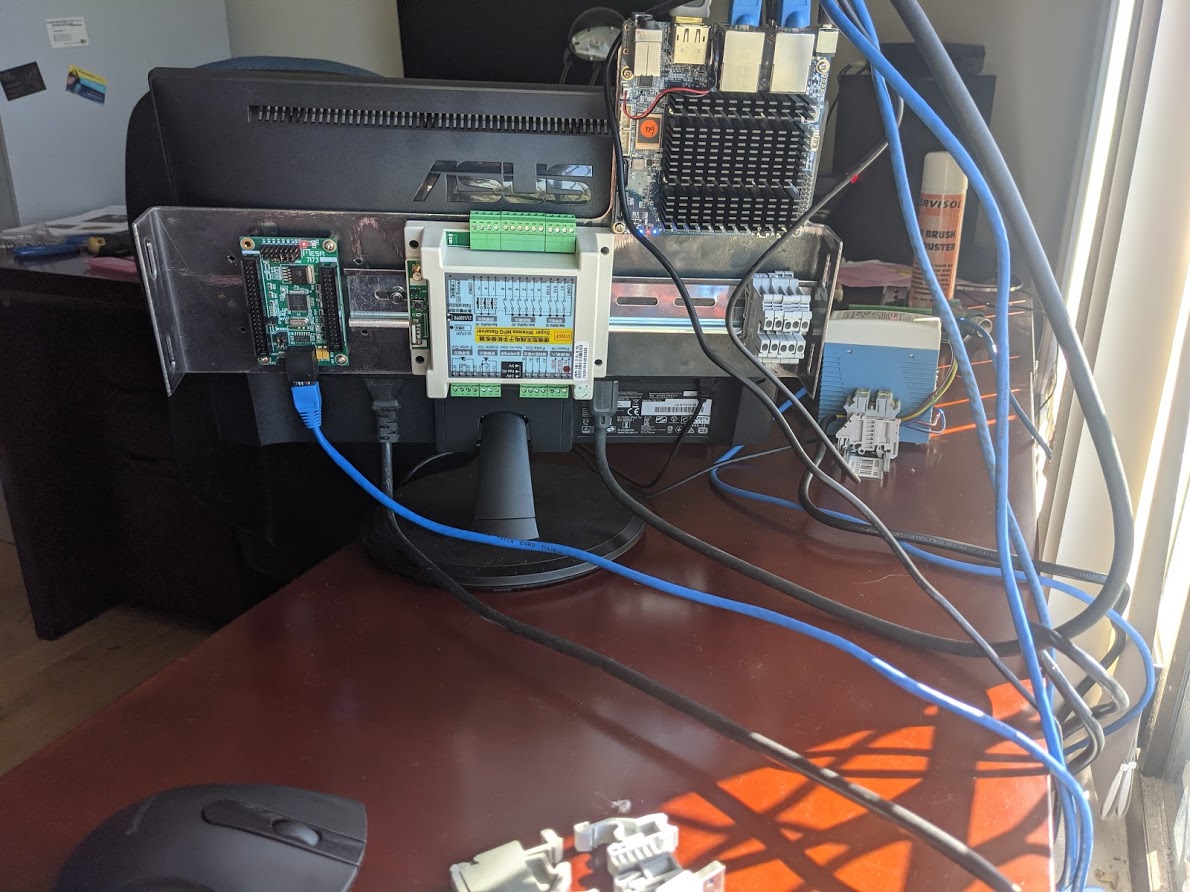

All the hardware attached to the monitor mount so there are no weld marks on the enclosure
Attachments:

Please Log in or Create an account to join the conversation.

More
19 Jan 2021 16:18 #195900 by mooser
How are you planning on mounting?
I'm just using a normal screen/keyboard (nowhere near as nice a setup as you've got going there) but need to find a different arm or something to hold it since I needed to remove my old setup (fairly barbaric)
M

Please Log in or Create an account to join the conversation.

More
19 Jan 2021 21:05 #195917 by aleksamc
Just use your imagination
Attachments:

Please Log in or Create an account to join the conversation.

More
19 Jan 2021 21:39 #195923 by tommylight
LOL, damn that is a nice one! :)

Please Log in or Create an account to join the conversation.

More
19 Jan 2021 21:56 #195924 by rodw

How are you planning on mounting?
I'm just using a normal screen/keyboard (nowhere near as nice a setup as you've got going there) but need to find a different arm or something to hold it since I needed to remove my old setup (fairly barbaric)
M


I will just have 4 holes on the back and use a VESA mount. Another option might be to hang it from above. There are commercially available HMI mounting systems that do this and let it swivel

I have thought about having a seperate keyboard tray that mounts to the bottom and use a combo keyboard and trackball. It would just bolt on.

Please Log in or Create an account to join the conversation.

More
19 Jan 2021 22:36 #195931 by mooser

Just use your imagination


If I sat my butt on that I'd probably come up with better g-code than I normally do...
M

Please Log in or Create an account to join the conversation.

More
19 Jan 2021 23:54 - 19 Jan 2021 23:56 #195947 by andypugh
photos.app.goo.gl/DRi4Aa37nc7xg97a6

VESA arm mount bolted to a panel on the back of the headstock.
MPGs mounted on the saddle.

(Ignore the keyboard, that lives in the house and is brought into the workshop only as needed)
Last edit: 19 Jan 2021 23:56 by andypugh.
The following user(s) said Thank You: rodw, CORBETT

Please Log in or Create an account to join the conversation.

More
20 Jan 2021 00:05 #195949 by rodw

photos.app.goo.gl/DRi4Aa37nc7xg97a6

VESA arm mount bolted to a panel on the back of the headstock.
MPGs mounted on the saddle.

(Ignore the keyboard, that lives in the house and is brought into the workshop only as needed)


Every time you share that photo, I just have to look at it to admire your handiwork Andy!
The following user(s) said Thank You: CORBETT

Please Log in or Create an account to join the conversation.

More
20 Jan 2021 00:22 #195955 by tommylight

photos.app.goo.gl/DRi4Aa37nc7xg97a6

VESA arm mount bolted to a panel on the back of the headstock.
MPGs mounted on the saddle.

(Ignore the keyboard, that lives in the house and is brought into the workshop only as needed)


Every time you share that photo, I just have to look at it to admire your handiwork Andy!

+1
The following user(s) said Thank You: CORBETT
