19 Oct 2018 22:01 #119089 by Dean
Power Supply Connectors was created by Dean

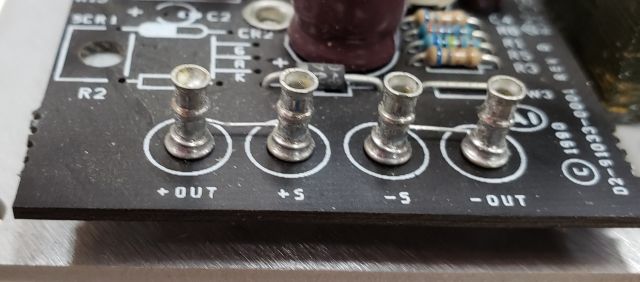

I know this is a little off-topic, but I wasn't sure where to place the post. I'm moving from software step generation to a Mesa 5i25/7i76 on my gantry CNC. I have a new (old) Condor 24 V power supply that I want to use for field voltage, but can't figure out what type of terminal connectors to use on its output terminals. I've attached a photo of the terminals. Maybe someone here can give me an idea. The posts are 0.138" in dia and 0.320" tall. Maybe its just a hard solder connection.

Thanks,
Dean

Attachments:

Please Log in or Create an account to join the conversation.

More
19 Oct 2018 22:49 #119091 by PCW
Replied by PCW on topic Power Supply Connectors
Those look like solder posts for direct soldered connections

If you solder, dont disturb the connections to the sense (S+, S-) pins.
The following user(s) said Thank You: Dean

Please Log in or Create an account to join the conversation.

More
20 Oct 2018 07:24 #119104 by Dean
Replied by Dean on topic Power Supply Connectors
Can I use the +-5V for field logic or is that there strictly to balance the 24V output of the power supply?

Please Log in or Create an account to join the conversation.

More
20 Oct 2018 07:41 #119105 by tecno
Replied by tecno on topic Power Supply Connectors
It is S not 5 S for sense
The following user(s) said Thank You: Dean, Rm501!

Please Log in or Create an account to join the conversation.

More
20 Oct 2018 08:45 #119109 by Dean
Replied by Dean on topic Power Supply Connectors
OH!........Don't I feel silly!

Thanks tecno.

Please Log in or Create an account to join the conversation.
