7i76e breakaway switch configuration in wizzard possible?

More
21 Feb 2020 20:27 - 21 Feb 2020 20:30 #158153 by CNCFred

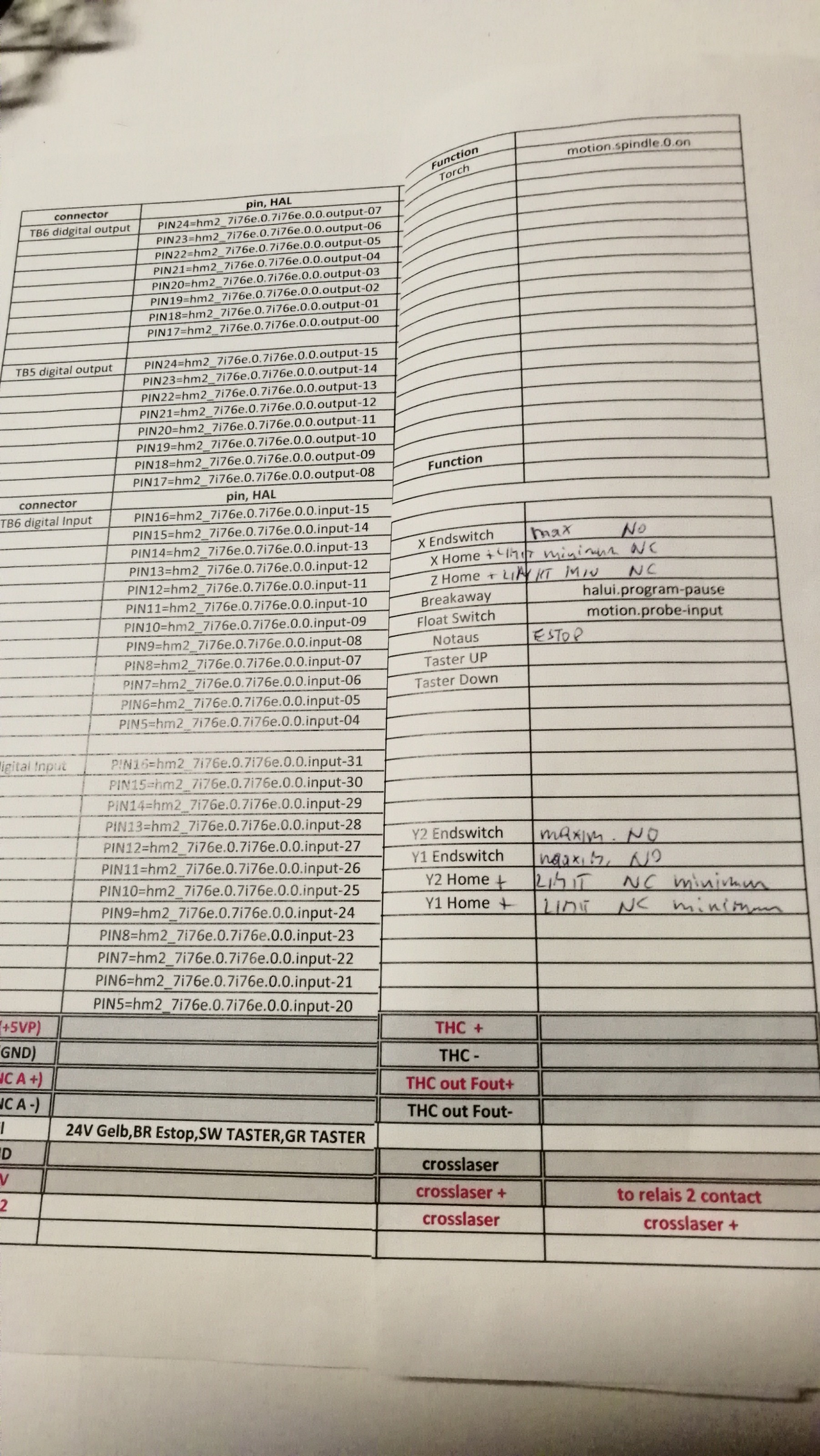

As in the subject...and I would like to know if I am right limit switches NC need to be inverted?
Thank you!
Attachments:
Last edit: 21 Feb 2020 20:30 by CNCFred.

Please Log in or Create an account to join the conversation.

More
21 Feb 2020 23:03 #158163 by PCW
Yes NC switches will read true when off limit so must be inverted for use with 7I76 inputs
The following user(s) said Thank You: CNCFred

Please Log in or Create an account to join the conversation.

More
22 Feb 2020 07:47 #158175 by CNCFred
I think breakaway switch is Plasmac configuration.

Please Log in or Create an account to join the conversation.

More
22 Feb 2020 08:52 #158181 by tommylight
Look at the " floating switch" LED in the GUI you are using, move the torch up by hand until it trips the switch, the LED should be ON when the torch triggers the switch.
If it is not, invert it in hal.
The following user(s) said Thank You: CNCFred

Please Log in or Create an account to join the conversation.

More
22 Feb 2020 09:54 #158186 by bbsr_5a
he asked on the breakaway for pausing the cut
There i got a Quetion can i give PlasmaC a incremental pos to move like G91 X50 Y 50 Z15
to get the cutout that somtimes make a problem remove
and will it return to the last pos where i triggerd Brekaway Pause

Is there a Video online that showes this behavior

Please Log in or Create an account to join the conversation.

More
22 Feb 2020 12:00 - 22 Feb 2020 12:08 #158196 by CNCFred
Bbsr_da: maybe that helps. forum.linuxcnc.org/38-general-linuxcnc-q...routines-in-linuxcnc

You would need to use variables for storage... To return to where you started I guess...

Maybe that's it at 16:30
Last edit: 22 Feb 2020 12:08 by CNCFred.
