15 Apr 2021 13:48 #206006 by andypugh
New (to me) Pick and Place was created by andypugh

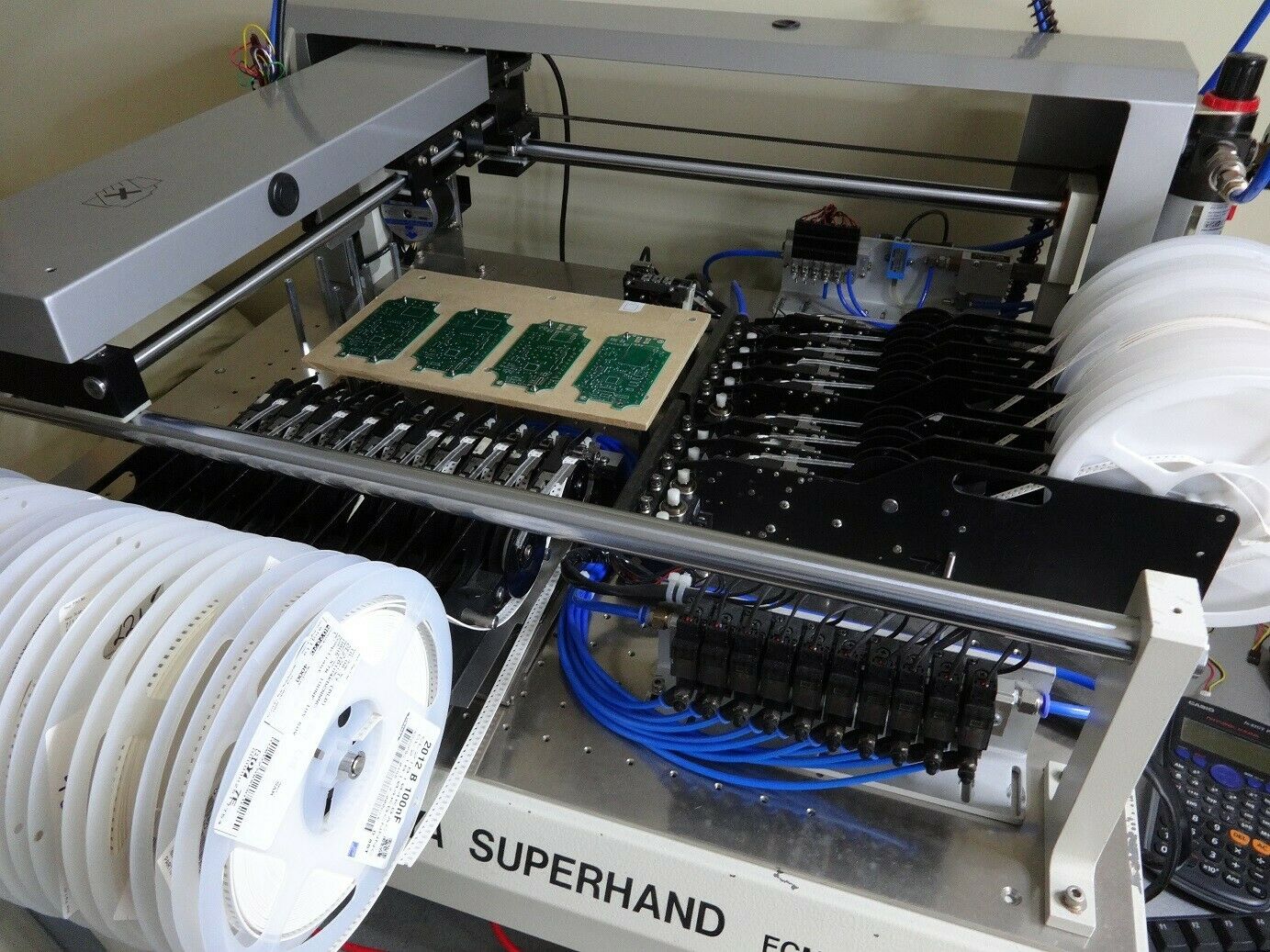

I found a Pick and Place machine on eBay for what I considered a bargain price.



I am hoping to get it working under LinuxCNC, probably under the overall control of OpenPnP. Mainly as a project in its own right.

I have no experience of PnP at all, so would appreciate pointers.
Attachments:
The following user(s) said Thank You: tommylight, anfänger, J Green, my1987toyota

Please Log in or Create an account to join the conversation.

More
15 Apr 2021 19:58 #206040 by aleksamc
Replied by aleksamc on topic New (to me) Pick and Place
May be this topic will help you.

Please Log in or Create an account to join the conversation.

More
02 May 2021 16:06 - 02 May 2021 16:11 #207648 by my1987toyota
Replied by my1987toyota on topic New (to me) Pick and Place
who was the manufacturer ? I know the Manncorp EMC93 was originally a servo driven model. At least on the X and Y axis anyway.
I will have to ask my boss about the feeders because there were some that were double width for bigger parts.
does yours have a multi position rack like in this video?
Last edit: 02 May 2021 16:11 by my1987toyota. Reason: added a video link

Please Log in or Create an account to join the conversation.

More
03 May 2021 22:41 #207758 by andypugh
Replied by andypugh on topic New (to me) Pick and Place
Mine was made by Mamiya. It has 5-phase stepper motors.
Unlike the one in the video it has one cylinder for each feeder, for a total of 20 cylinders.
The following user(s) said Thank You: my1987toyota

Please Log in or Create an account to join the conversation.

More
04 May 2021 10:37 #207814 by my1987toyota
Replied by my1987toyota on topic New (to me) Pick and Place
Yours will be able to cycle faster because it won't have to wait for a rack to get into position. Does it have a down looking camera
for faducial alignment?

Please Log in or Create an account to join the conversation.

More
04 May 2021 11:09 #207819 by andypugh
Replied by andypugh on topic New (to me) Pick and Place
Yes, there is a down-looking camera. I intend to swap it for a USB one to tidy up the wiring, and to add an up-looking one, probably. Though I need to check focal lengths and such for that.
The following user(s) said Thank You: my1987toyota

Please Log in or Create an account to join the conversation.

More
06 May 2021 13:20 #208102 by my1987toyota
Replied by my1987toyota on topic New (to me) Pick and Place
Nice. As I understand OpenCV can be integrated in so linuxcnc can automatically align everything.
However for just getting the machine up and running just hook the downlooking camera to the computer and use
VLC media player to see where the camera is looking . You could then use the camera as an X Y offset for faducials.
That's the theory anyway.
I hope this helps.

Please Log in or Create an account to join the conversation.

More
15 Feb 2023 23:21 #264588 by my1987toyota
Replied by my1987toyota on topic New (to me) Pick and Place
Hey Andy did you ever get your pick and place operational ?

Please Log in or Create an account to join the conversation.

More
21 Feb 2023 00:33 #264927 by andypugh
Replied by andypugh on topic New (to me) Pick and Place

Hey Andy did you ever get your pick and place operational ?

Not yet, it is way behind lots of other projects.
The following user(s) said Thank You: my1987toyota

Please Log in or Create an account to join the conversation.

More
22 Feb 2023 01:36 #265002 by my1987toyota
Replied by my1987toyota on topic New (to me) Pick and Place
I can certainly understand that . The project lists can become mountainous very quickly.
