Mesa THCAD Model
- robertspark
- Offline
- Platinum Member
-
Less
More
- Posts: 915
- Thank you received: 216
11 Sep 2017 21:37 #98853
by robertspark
Mesa THCAD Model was created by robertspark
I do this with all my hardware and create models which I can then use to plan out and lay out my CNC drive case, hence you'll find a few other models listed there too that I've done (I tend to post only the ones that look any good, hence I've a few rough ones which would need improving graphically before uploading them)
Hence as I'm now in posession of a THCAD-10, I thought I'd draw it in inventor as a solid part.
I mainly do this so that I can setout my mounting hole spacing for a backplate which allows me to either plasma drill, mark or dimple the holes for later manual drilling in the correct location along with the standoffs.
I will post the 7i76e model when it's available.
A coloured pinout is also available which I find is easier on the eyes than the manual (not a lot to this one, more on the 7i76e which I've completed already)
grabcad.com/library/mesa-thcad-1
Pinout here (also available from the grabcad link):
d2t1xqejof9utc.cloudfront.net/screenshot...0500cd502e/large.png
Pinout is done in LibreOffice Draw, model done in inventor as a solid object, and expoted to various other formats in case anyone is interested / wondering, including IPT, STL, DWG, DXF, IGS, STP, etc.
Hence as I'm now in posession of a THCAD-10, I thought I'd draw it in inventor as a solid part.
I mainly do this so that I can setout my mounting hole spacing for a backplate which allows me to either plasma drill, mark or dimple the holes for later manual drilling in the correct location along with the standoffs.
I will post the 7i76e model when it's available.
A coloured pinout is also available which I find is easier on the eyes than the manual (not a lot to this one, more on the 7i76e which I've completed already)
grabcad.com/library/mesa-thcad-1
Pinout here (also available from the grabcad link):
d2t1xqejof9utc.cloudfront.net/screenshot...0500cd502e/large.png
Pinout is done in LibreOffice Draw, model done in inventor as a solid object, and expoted to various other formats in case anyone is interested / wondering, including IPT, STL, DWG, DXF, IGS, STP, etc.
The following user(s) said Thank You: jtc
Please Log in or Create an account to join the conversation.
12 Sep 2017 05:21 #98861
by rodw
Replied by rodw on topic Mesa THCAD Model
Very nice Robert. I'm looking forward to you 7i76e model now ![:) :)](/media/kunena/emoticons/smile.png)
I should have a mounting base plate file for the 7i76e and THCAD somewhere so I'll try and post it here.
![:) :)](/media/kunena/emoticons/smile.png)
I should have a mounting base plate file for the 7i76e and THCAD somewhere so I'll try and post it here.
Please Log in or Create an account to join the conversation.
- robertspark
- Offline
- Platinum Member
-
Less
More
- Posts: 915
- Thank you received: 216
12 Sep 2017 06:48 #98862
by robertspark
Replied by robertspark on topic Mesa THCAD Model

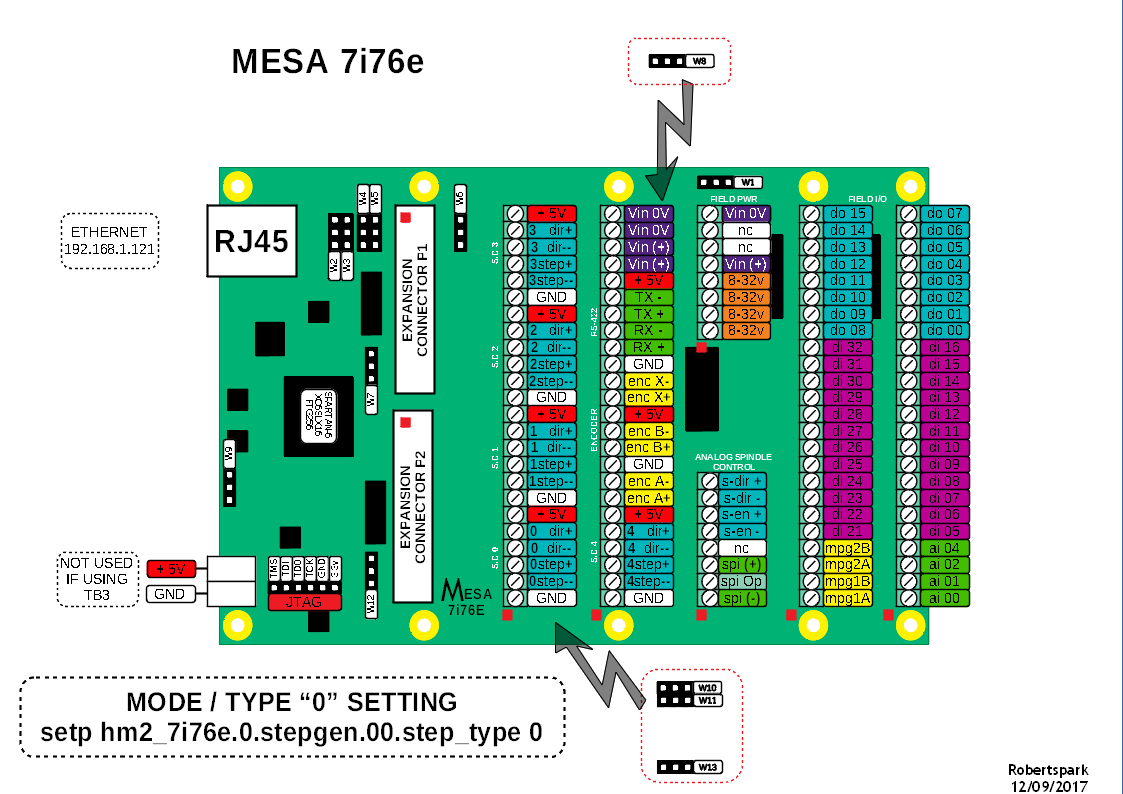

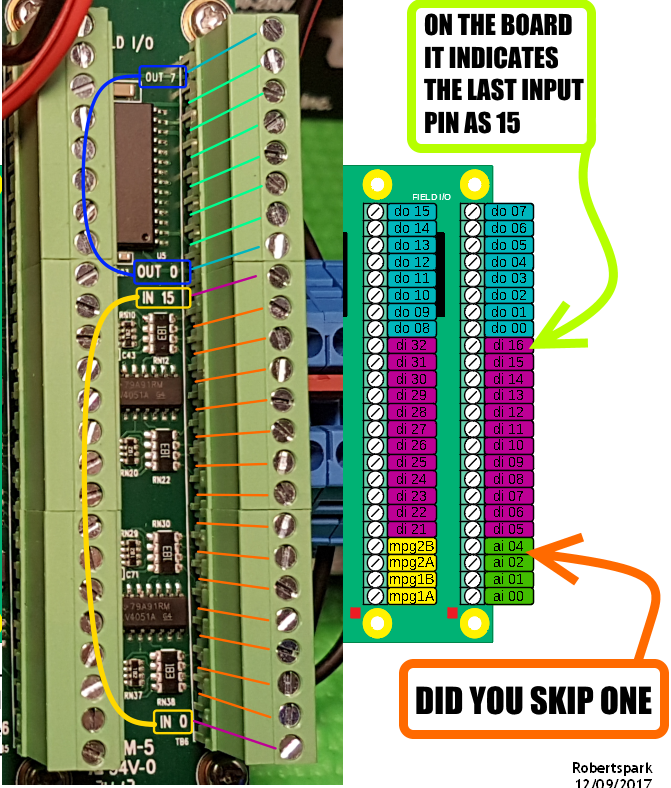

7i76e pinout here:
(I'll add it to a seperate thread post for the 7i76e along with the model link once complete)
[note this is meant for my file, hence it's setup for step & direction configuration as per the pinout I require and the jumper settings accordingly, mainly for my quick reference.... colour works better for me to see things]
(I'll add it to a seperate thread post for the 7i76e along with the model link once complete)
[note this is meant for my file, hence it's setup for step & direction configuration as per the pinout I require and the jumper settings accordingly, mainly for my quick reference.... colour works better for me to see things]
Please Log in or Create an account to join the conversation.
21 Jun 2018 19:48 #112738
by Omnis
Replied by Omnis on topic Mesa THCAD Model
