12 Sep 2017 21:54 #98901
by robertspark
MESA 7I76 / 7i76e Model was created by robertspark
As per the title, link to a GradCad model of the MESA 7i76e board.
The files are available to download in many file formats, a pinout is also included.
grabcad.com/library/mesa-7i76e-7i76e-1
Please note that this is provided for the purposes of laying out my control cabinet and for marking / plasma cutting or dimpling the mounting hole centres.
The model is provided as a solid part and was designed in inventor (as an assmebly, simplified and exported as a solid part) and exported to a number of file formats including DWG, DXF, STL, IGS, and IPT etc.
The pinout is provided in colour and matches my proposed application which is for stepper motors [although it may not be obcious the jumpers are set according to the location of the tags adjacent the 3 pins, i.e. tag on the left of the 3-pins, jumper the two pins to the LHS and visa-versa for the RHS tag location.
The default IP address is denoted as given within the manual.
The pinout is provided for my easy access as I like to be able to see things in colour as it allows (in my opinion) for quick checking of cabling etc.
d2t1xqejof9utc.cloudfront.net/screenshot...674c0a5f46/large.png
Rob
The files are available to download in many file formats, a pinout is also included.
grabcad.com/library/mesa-7i76e-7i76e-1
Please note that this is provided for the purposes of laying out my control cabinet and for marking / plasma cutting or dimpling the mounting hole centres.
The model is provided as a solid part and was designed in inventor (as an assmebly, simplified and exported as a solid part) and exported to a number of file formats including DWG, DXF, STL, IGS, and IPT etc.
The pinout is provided in colour and matches my proposed application which is for stepper motors [although it may not be obcious the jumpers are set according to the location of the tags adjacent the 3 pins, i.e. tag on the left of the 3-pins, jumper the two pins to the LHS and visa-versa for the RHS tag location.
The default IP address is denoted as given within the manual.
The pinout is provided for my easy access as I like to be able to see things in colour as it allows (in my opinion) for quick checking of cabling etc.
d2t1xqejof9utc.cloudfront.net/screenshot...674c0a5f46/large.png
Rob
Please Log in or Create an account to join the conversation.
15 Sep 2017 02:40 #98979
by calvin.d
Replied by calvin.d on topic MESA 7I76 / 7i76e Model
Thank you for making this, it just saved me a bunch of time
Calvin
Calvin
Please Log in or Create an account to join the conversation.
- robertspark
- Offline
- Platinum Member
-
Less
More
- Posts: 915
- Thank you received: 216
15 Sep 2017 04:28 #98981
by robertspark
Replied by robertspark on topic MESA 7I76 / 7i76e Model
No probs, I enjoy doing them.
One thing I didn't do the I will and normally do is 1:1 A4 and letter paper drawings
I do these so you can print the models, cut out the paper models and space plan old school.... Plus you can centre punch the hole centres for marking and drilling the mounting holes.
A4 and letter seem to be the norm in paper sizes for printers world wide.
I'm happy to do others but need the critical dims of the hole centres and the non critical dims of the other bits for visualisation (Andrew with the neuron gave me his PCB overlay which made it a whole lot quicker...)
One thing I didn't do the I will and normally do is 1:1 A4 and letter paper drawings
I do these so you can print the models, cut out the paper models and space plan old school.... Plus you can centre punch the hole centres for marking and drilling the mounting holes.
A4 and letter seem to be the norm in paper sizes for printers world wide.
I'm happy to do others but need the critical dims of the hole centres and the non critical dims of the other bits for visualisation (Andrew with the neuron gave me his PCB overlay which made it a whole lot quicker...)
Please Log in or Create an account to join the conversation.
15 Sep 2017 04:36 #98982
by calvin.d
Replied by calvin.d on topic MESA 7I76 / 7i76e Model

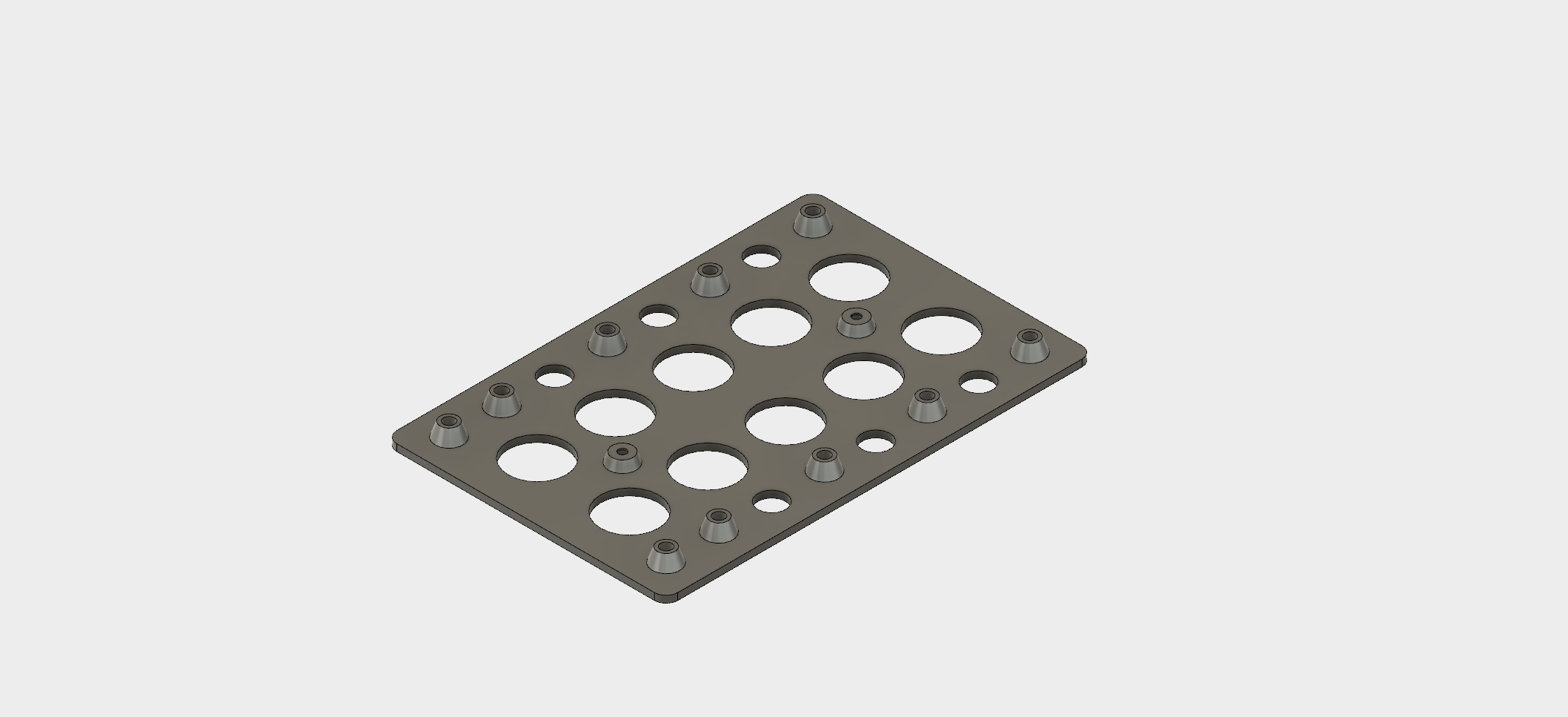

I tend to 3d print mounting hardware for stuff like this to, make to has proper isolation. I use heated threaded inserts for the mount screw. I also can put it into place and transfer punch the mounting holes for it.
you model made making this one super, easy
should be done printing an an the next hour or so![:) :)](/media/kunena/emoticons/smile.png)
Thanks
Calvin
you model made making this one super, easy
should be done printing an an the next hour or so
![:) :)](/media/kunena/emoticons/smile.png)
Thanks
Calvin
Please Log in or Create an account to join the conversation.
15 Sep 2017 08:33 #98984
by Diederik
Replied by Diederik on topic MESA 7I76 / 7i76e Model
Very Cool of you! Thanks.
Please Log in or Create an account to join the conversation.
- robertspark
- Offline
- Platinum Member
-
Less
More
- Posts: 915
- Thank you received: 216
15 Sep 2017 08:44 #98986
by robertspark
Replied by robertspark on topic MESA 7I76 / 7i76e Model
Nice idea, never thought of using something such as that, always just use standard plastic standoffs (3mm)
Please Log in or Create an account to join the conversation.
01 Nov 2017 07:27 #101102
by newbynobi
Replied by newbynobi on topic MESA 7I76 / 7i76e Model
Hallo Robert,
is there a way to get the step file, without the need to create an account?
Can you just post them here as zip file?
Norbert
is there a way to get the step file, without the need to create an account?
Can you just post them here as zip file?
Norbert
Please Log in or Create an account to join the conversation.
- robertspark
- Offline
- Platinum Member
-
Less
More
- Posts: 915
- Thank you received: 216
01 Nov 2017 09:28 #101111
by robertspark
Replied by robertspark on topic MESA 7I76 / 7i76e Model
Yes, I can but not until Sunday, I am abroad without a laptop or PC, if you can wait until then.
A kind sole who has downloaded it may be able to upload it in the short term here
A kind sole who has downloaded it may be able to upload it in the short term here
Please Log in or Create an account to join the conversation.
01 Nov 2017 11:19 #101121
by newbynobi
Replied by newbynobi on topic MESA 7I76 / 7i76e Model
Thanks, I will be patient and wait.
Norbert
Norbert
Please Log in or Create an account to join the conversation.
- robertspark
- Offline
- Platinum Member
-
Less
More
- Posts: 915
- Thank you received: 216
05 Nov 2017 20:07 #101368
by robertspark
Replied by robertspark on topic MESA 7I76 / 7i76e Model
STP attached
Please Log in or Create an account to join the conversation.
