Error: "Insmod for DRIVER failed, returned -1"

More
10 Dec 2017 02:26 - 10 Dec 2017 17:12 #102857 by AndrewHsasku
After a long time, I have finally succeeded in compiling my driver with halcompile.

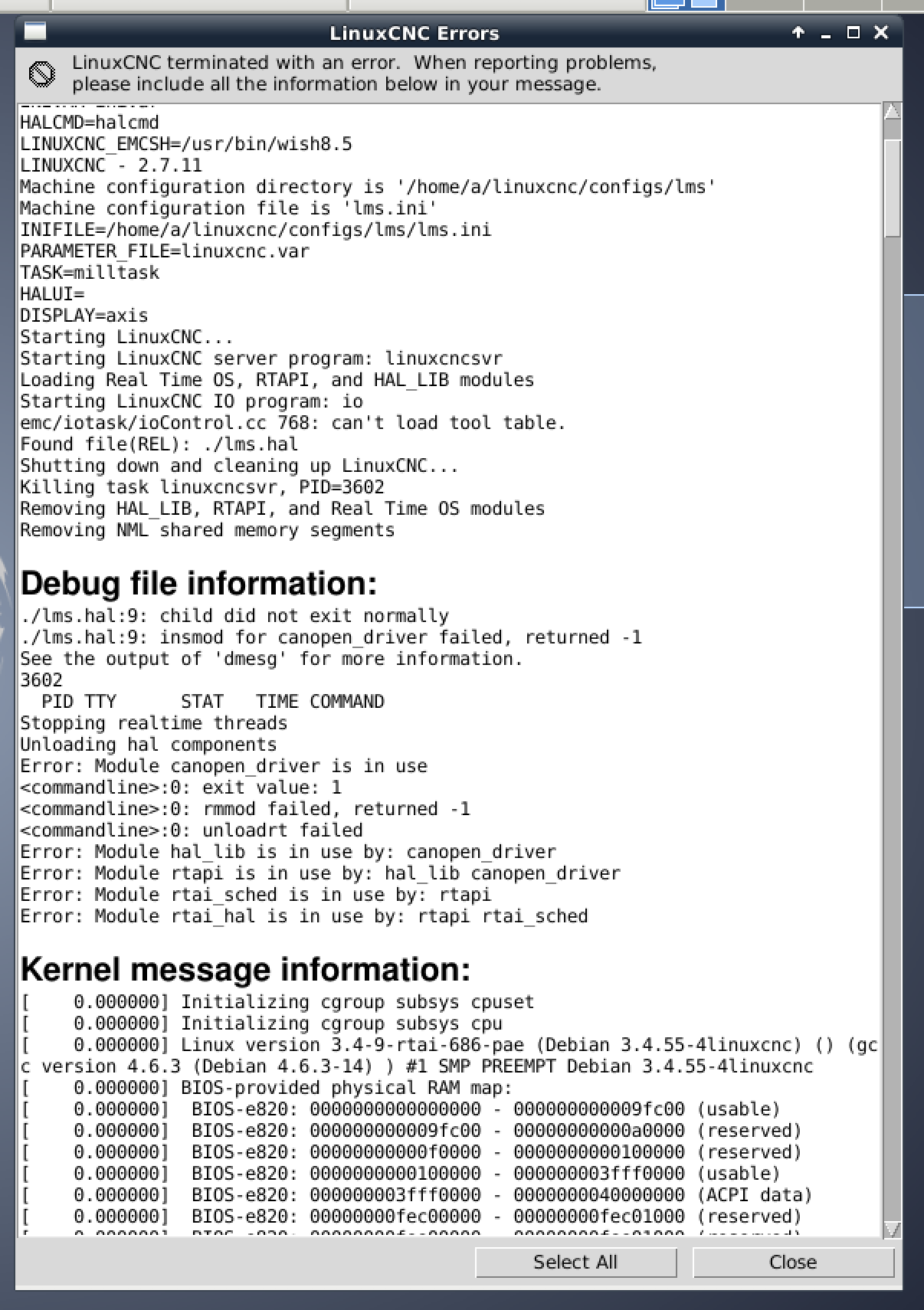

While starting LinuxCNC, I've got an error like below:
Print file information
RUN_IN_PLACE=no
LINUXCNC_DIR=
LINUXCNC_BIN_DIR=/usr/bin
LINUXCNC_TCL_DIR=/usr/lib/tcltk/linuxcnc
LINUXCNC_SCRIPT_DIR=
LINUXCNC_RTLIB_DIR=/usr/realtime-3.4-9-rtai-686-pae/modules/linuxcnc
LINUXCNC_CONFIG_DIR=
LINUXCNC_LANG_DIR=/usr/share/linuxcnc/tcl/msgs
INIVAR=inivar
HALCMD=halcmd
LINUXCNC_EMCSH=/usr/bin/wish8.5
LINUXCNC - 2.7.11
Machine configuration directory is '/home/a/linuxcnc/configs/lms'
Machine configuration file is 'lms.ini'
INIFILE=/home/a/linuxcnc/configs/lms/lms.ini
PARAMETER_FILE=linuxcnc.var
TASK=milltask
HALUI=
DISPLAY=axis
Starting LinuxCNC...
Starting LinuxCNC server program: linuxcncsvr
Loading Real Time OS, RTAPI, and HAL_LIB modules
Starting LinuxCNC IO program: io
emc/iotask/ioControl.cc 768: can't load tool table.
Found file(REL): ./lms.hal
Shutting down and cleaning up LinuxCNC...
Killing task linuxcncsvr, PID=3832
Removing HAL_LIB, RTAPI, and Real Time OS modules
Removing NML shared memory segments
Debug file information
./lms.hal:9: child did not exit normally
./lms.hal:9: insmod for lms_canopen_driver failed, returned -1
See the output of 'dmesg' for more information.
3832
  PID TTY      STAT   TIME COMMAND
Stopping realtime threads
Unloading hal components
Error: Module lms_canopen_driver is in use
<commandline>:0: exit value: 1
<commandline>:0: rmmod failed, returned -1
<commandline>:0: unloadrt failed
Error: Module hal_lib is in use by: lms_canopen_driver
Error: Module rtapi is in use by: hal_lib lms_canopen_driver
Error: Module rtai_sched is in use by: rtapi
Error: Module rtai_hal is in use by: rtapi rtai_sched
