How to configure the tool position in 5axis kinematics?

More
16 Oct 2020 10:45 - 16 Oct 2020 11:23 #186273 by bladekel
Hello to all.

I'm very new to 5axiskinematics. I have a machine like "XYZBC 5 axis bridge mill".

The difference of my machine from the sample one is the length of the axis-B and axis-C.

I can change the 5axisgui for my needs and catch the view of my real machine.

But the problem is I couldnt adjust the kinematic ( I dont know how).

How can I adjust the length ( or position) of the axis-B and axis-C ?

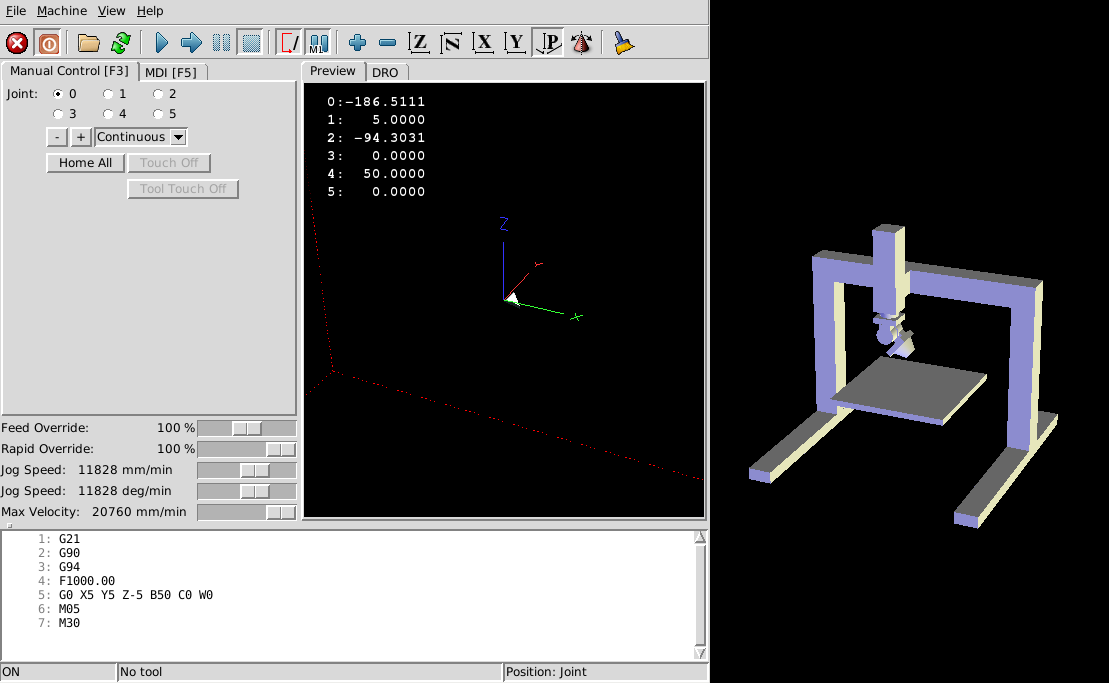

Here is the ss of the emc;

File Attachment:


File Attachment:


The gcode program file is the same for two configuration.

In my opinion after running the machine the 1st joint (x axis) positions have to be different for each configuration, but they are not.

How to solve this problem?
Attachments:
Last edit: 16 Oct 2020 11:23 by bladekel.

Please Log in or Create an account to join the conversation.

More
16 Oct 2020 11:27 #186274 by Grotius
Hi,

I don't know anything about linuxcnc 5 axis, but wiki.linuxcnc.org/cgi-bin/wiki.pl?FiveAxisGantry

It looks like the file wiki.linuxcnc.org/uploads/5axesgantry.tbl has a tool lenght input. I would supsect this is the
way to configure your tool position, but i am not sure.
The following user(s) said Thank You: bladekel

Please Log in or Create an account to join the conversation.

More
16 Oct 2020 13:31 #186284 by Aciera
The kinematic creates a hal pin "5axiskins.pivot-length". Its preset to 250 but you can set it to another value in your hal.

For example 123:

setp 5axiskins.pivot-length 123
The following user(s) said Thank You: bladekel

Please Log in or Create an account to join the conversation.

More
16 Oct 2020 13:36 #186285 by dgarrett
The 5axis brigemill sim config has been extensively
updated recently in the *master* branch.
(configs/sim/axis/vismach/5axis/bridgemill/5axis.ini)

The updated sim config demonstrates how to compute the
kinematics pivot-length (5axiskins.pivot-length) based
on the current tool length (motion.tooloffset.z) and the
machine's pivot length (5axisgui.pivot_len for the
simulation)

Related video:
The following user(s) said Thank You: tommylight, rodw, bladekel, Aciera
