Need help for 7I73 IO

yrsiddhapura
Offline
Premium Member

21 Sep 2022 15:51 #252521 by yrsiddhapura

Replied by yrsiddhapura on topic Need help for 7I73 IO

Do you have hal example for mesa 5i24+7i52s+7i52

Please Log in or Create an account to join the conversation.

HansU
Offline
Platinum Member

21 Sep 2022 17:35 - 21 Sep 2022 17:36 #252528 by HansU

Replied by HansU on topic Need help for 7I73 IO

BigJohnT wrote:

HansU wrote:
Sorry to drift a bit away from the original topic, but this fits here also I think.

I made an overview of the pin names in the different modes and I would like to include it somewhere in the LinuxCNC docs.

Peter, can you have a quick look at this if it looks reasonable for you? Thanks!

I'd like to add this to the Mesa Configuration Tool.

JT

As a PDF document like the other manuals? Then I'll make it fit to a normal paper format.

Last edit: 21 Sep 2022 17:36 by HansU.

Please Log in or Create an account to join the conversation.

JT
Away
Administrator

21 Sep 2022 22:25 #252538 by JT

Replied by JT on topic Need help for 7I73 IO

HansU wrote:

BigJohnT wrote:

HansU wrote:
Sorry to drift a bit away from the original topic, but this fits here also I think.

I made an overview of the pin names in the different modes and I would like to include it somewhere in the LinuxCNC docs.

Peter, can you have a quick look at this if it looks reasonable for you? Thanks!

I'd like to add this to the Mesa Configuration Tool.

JT

As a PDF document like the other manuals? Then I'll make it fit to a normal paper format.

Yes that will be great!

Thanks
JT

Please Log in or Create an account to join the conversation.

HansU
Offline
Platinum Member

22 Sep 2022 14:24 #252571 by HansU

Replied by HansU on topic Need help for 7I73 IO

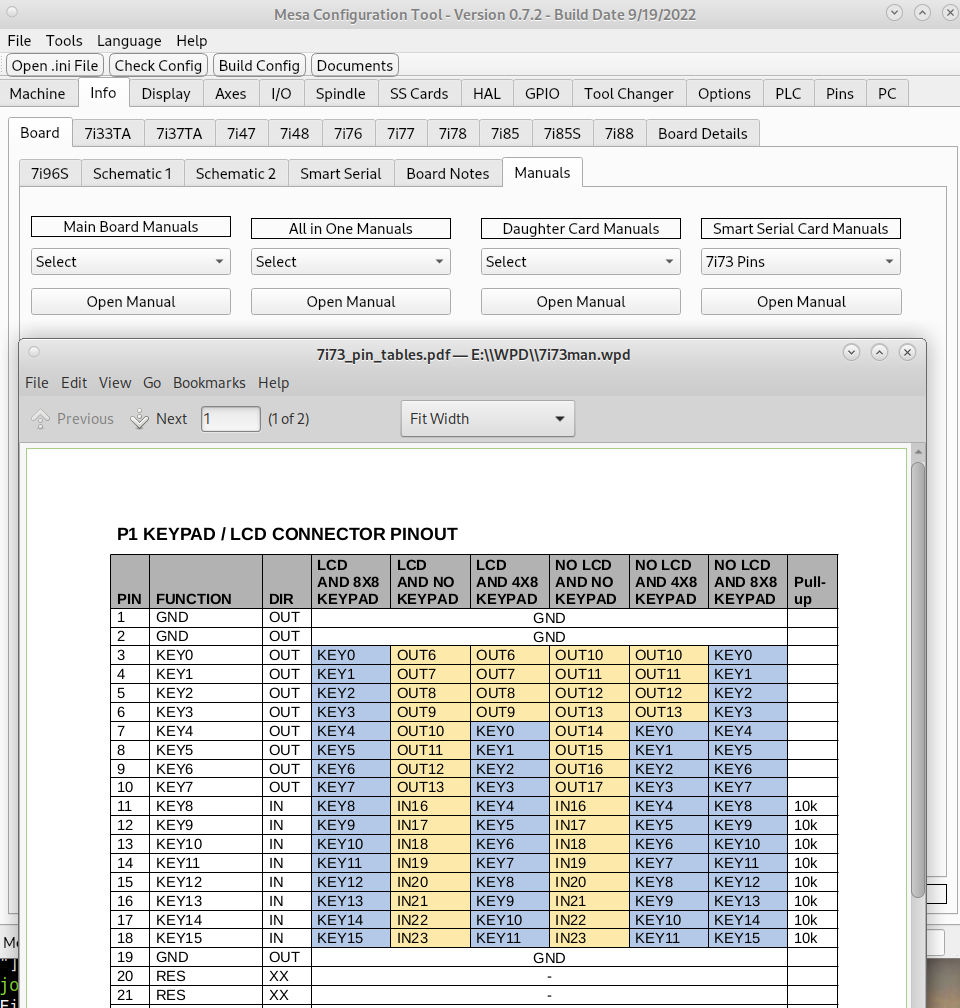

Ok here one version coloured and one in b/w.

The following user(s) said Thank You: tommylight, JT

Please Log in or Create an account to join the conversation.

JT
Away
Administrator

22 Sep 2022 21:10 #252587 by JT

Replied by JT on topic Need help for 7I73 IO

HansU wrote:
Ok here one version coloured and one in b/w.

Thanks

The following user(s) said Thank You: tommylight, besriworld
