Help with identifying sinking or sourcing inputs,outputs.

Start
Prev
1
Next
End

Loafer
Offline
New Member

13 Dec 2018 02:20 #122345 by Loafer

Help with identifying sinking or sourcing inputs,outputs. was created by Loafer

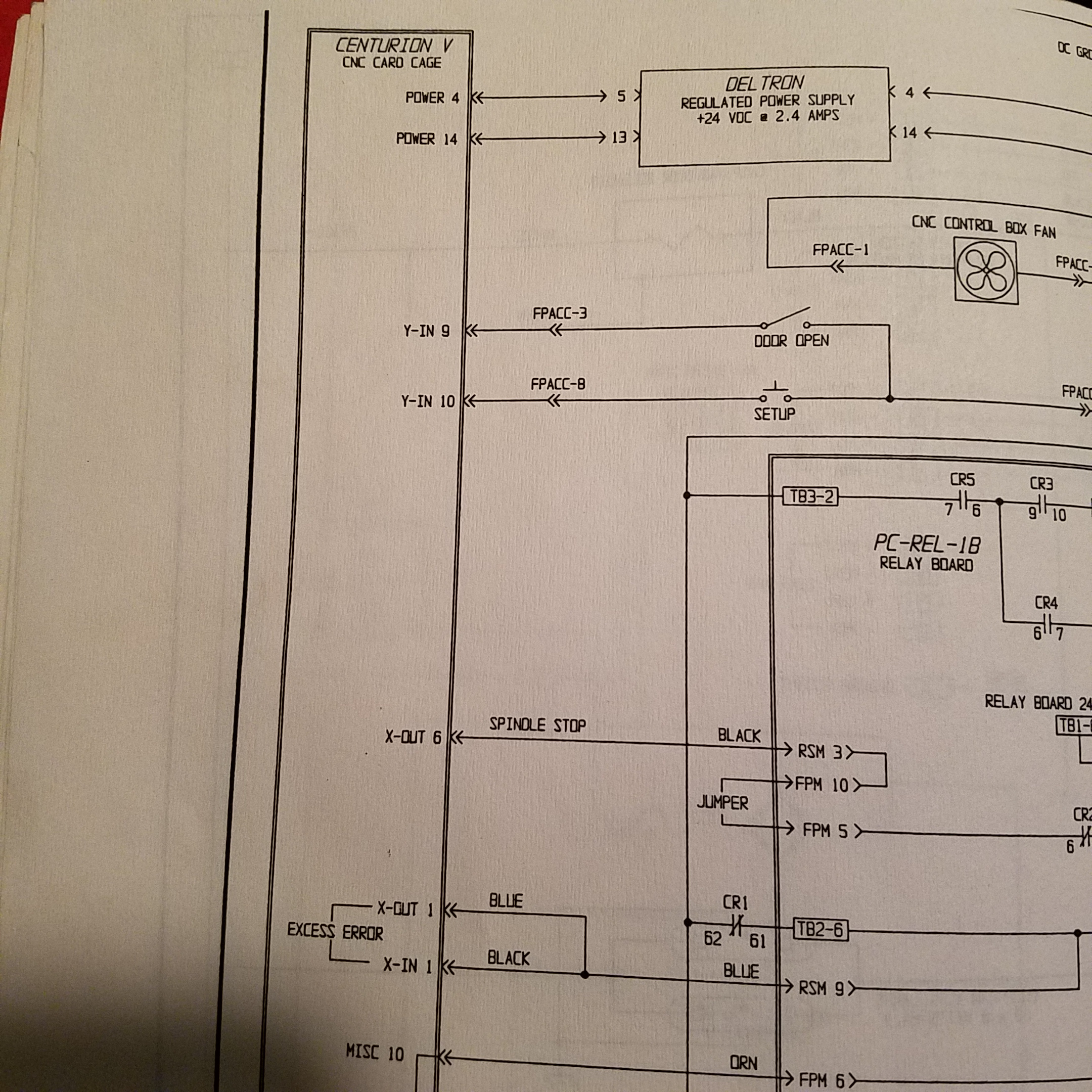

I am retrofiting 1997 Milltronics VM17 to Linuxcnc using Mesa. I am trying to match the Mesa board correctly. Can you tell by these schematic pictures?

Please Log in or Create an account to join the conversation.

tommylight
Away
Moderator

13 Dec 2018 12:07 #122364 by tommylight

Replied by tommylight on topic Help with identifying sinking or sourcing inputs,outputs.

It looks like active low inputs.

Please Log in or Create an account to join the conversation.

Loafer
Offline
New Member

14 Dec 2018 02:02 #122407 by Loafer

Replied by Loafer on topic Help with identifying sinking or sourcing inputs,outputs.

Thank you.
