21 Mar 2019 12:02 - 21 Mar 2019 12:03 #129157 by bevins

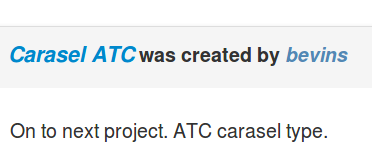

Carasel ATC was created by bevins
On to next project. ATC carasel type.

Can I use the carasel component for this machine? It has 21 pockets. IT has a weird encoder that gives pulses for each pocket. I put an index on it at pocket 1.

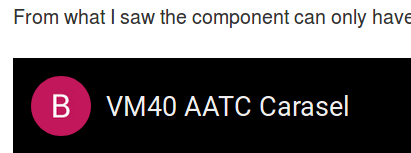

From what I saw the component can only have 8 pockets?

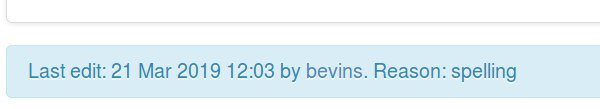

Last edit: 21 Mar 2019 12:03 by bevins. Reason: spelling

Please Log in or Create an account to join the conversation.

More
21 Mar 2019 12:57 - 21 Mar 2019 12:58 #129159 by tommylight
Replied by tommylight on topic Carasel ATC
LOL, sorry but i had to....







Carousel!
That should work, quite easily but i am not sure where you got the 8 tool limit.
I am sure i used carousel comp for a 16 pocket tool changer and it worked perfectly.
Attached is a config that was used while testing the functionality of the tool changer, will try to upload the end result whenever i can.
Attachments:
Last edit: 21 Mar 2019 12:58 by tommylight.

Please Log in or Create an account to join the conversation.

More
21 Mar 2019 13:19 #129163 by bevins
Replied by bevins on topic Carasel ATC
AH, that's good to know. I quickly glanced at the comp docs and read 10, 10,8, anyway I assumed 8.

Thanks for the configs.

Bob

Please Log in or Create an account to join the conversation.

More
21 Mar 2019 13:33 #129165 by Todd Zuercher
Replied by Todd Zuercher on topic Carasel ATC
The limit of 8 mentioned in the documents is saying that you can only have 8 carousel components, not 8 pockets.
The following user(s) said Thank You: tommylight

Please Log in or Create an account to join the conversation.

More
21 Mar 2019 13:45 - 21 Mar 2019 13:46 #129168 by bevins
Replied by bevins on topic Carasel ATC
I went back and read it more carefully.

I think I will do this is python also. After the last one I did, this should be a piece of cake.

Thanks,

Bob
Last edit: 21 Mar 2019 13:46 by bevins.

Please Log in or Create an account to join the conversation.

More
21 Mar 2019 21:54 #129223 by Henk
Replied by Henk on topic Carasel ATC
I have used carousel component on a 30 pocket tool changer and I would never use anything else for this type of thing. Truly a very helpful piece of work. Thanks to andypugh.

The one that comes with the standard install is not the latest version of I recall correctly. You may need to download the latest version and install using halcompile.

Henk

Please Log in or Create an account to join the conversation.

More
16 Apr 2019 04:37 #130964 by nkp
Replied by nkp on topic Carasel ATC
I want to try to slow down the carousel before stopping:

pin out bit motor-slow

case 2: // moving
if ((abs(current_position - pocket_number) > 1) && enable) return;
motor_slow = 1;
if ((current_position != pocket_number) && enable) return;
motor_fwd = 0;
motor_rev = 0;
motor_slow = 0;
state = 3;
active = 0;
if (enable) ready = 1;

have not tried on the machine)
