Rotary A axis mesa 5i25 7i77
- Artur_1617
- Topic Author
- Away
- Premium Member
Less
More
- Posts: 146
- Thank you received: 5
02 Apr 2021 11:22 #204480
by Artur_1617
Rotary A axis mesa 5i25 7i77 was created by Artur_1617
Hi,
I have problem with setup my rotary A axis.
The rotary axis is servo 50w 3000rpm setup in speed control and setup 1 volt of input from mesa give 300rpm(max speed of motor 3000rpm)
The servo motor is conected to harmonic drive with reduction ratio 50-1
Servo encoder is 2500 count
When setup in my ini file encoder scale to 2500 my A axis turn 360 deegres but on the screen apeard only 200
For me i must put encoder scale to 125000 2500x50 but after one full tourn of axis on screen se only 4degree
Wathing encoder count in hall meter and turn 360degrees counter go from 0 to 500000 ( like encoder 5000x100 ?)
The drive didint have setup for output encoder signal.
I have problem with setup my rotary A axis.
The rotary axis is servo 50w 3000rpm setup in speed control and setup 1 volt of input from mesa give 300rpm(max speed of motor 3000rpm)
The servo motor is conected to harmonic drive with reduction ratio 50-1
Servo encoder is 2500 count
When setup in my ini file encoder scale to 2500 my A axis turn 360 deegres but on the screen apeard only 200
For me i must put encoder scale to 125000 2500x50 but after one full tourn of axis on screen se only 4degree
Wathing encoder count in hall meter and turn 360degrees counter go from 0 to 500000 ( like encoder 5000x100 ?)
The drive didint have setup for output encoder signal.
Please Log in or Create an account to join the conversation.
- PCW
- Away
- Moderator
Less
More
- Posts: 17976
- Thank you received: 4831
02 Apr 2021 11:43 - 02 Apr 2021 11:43 #204482
by PCW
Replied by PCW on topic Rotary A axis mesa 5i25 7i77
If you have a 2500 line encoder, that would be 10000 counts per turn,
so 10000x50= 500,000 counts-per-turn on A axis.
500,000 counts-per-turn/360 = 1388.888888889 counts per degree.
so encoder scale should be1388.888888889
so 10000x50= 500,000 counts-per-turn on A axis.
500,000 counts-per-turn/360 = 1388.888888889 counts per degree.
so encoder scale should be1388.888888889
Last edit: 02 Apr 2021 11:43 by PCW.
Please Log in or Create an account to join the conversation.
- Artur_1617
- Topic Author
- Away
- Premium Member
Less
More
- Posts: 146
- Thank you received: 5
02 Apr 2021 12:16 #204490
by Artur_1617
Replied by Artur_1617 on topic Rotary A axis mesa 5i25 7i77
for one turn 360degrees the closes results was with about 1900scale
something is wrong....
something is wrong....
Please Log in or Create an account to join the conversation.
- andypugh
- Offline
- Moderator
Less
More
- Posts: 23178
- Thank you received: 4860
02 Apr 2021 23:30 #204575
by andypugh
Replied by andypugh on topic Rotary A axis mesa 5i25 7i77
The maths should be very simple. Are you 100% sure about the encoder counts and the harmonic drive ratio?
Is there any gearing between the motor and the HD?
Is there any gearing between the motor and the HD?
Please Log in or Create an account to join the conversation.
- Artur_1617
- Topic Author
- Away
- Premium Member
Less
More
- Posts: 146
- Thank you received: 5
21 Apr 2021 18:32 #206694
by Artur_1617
Replied by Artur_1617 on topic Rotary A axis mesa 5i25 7i77

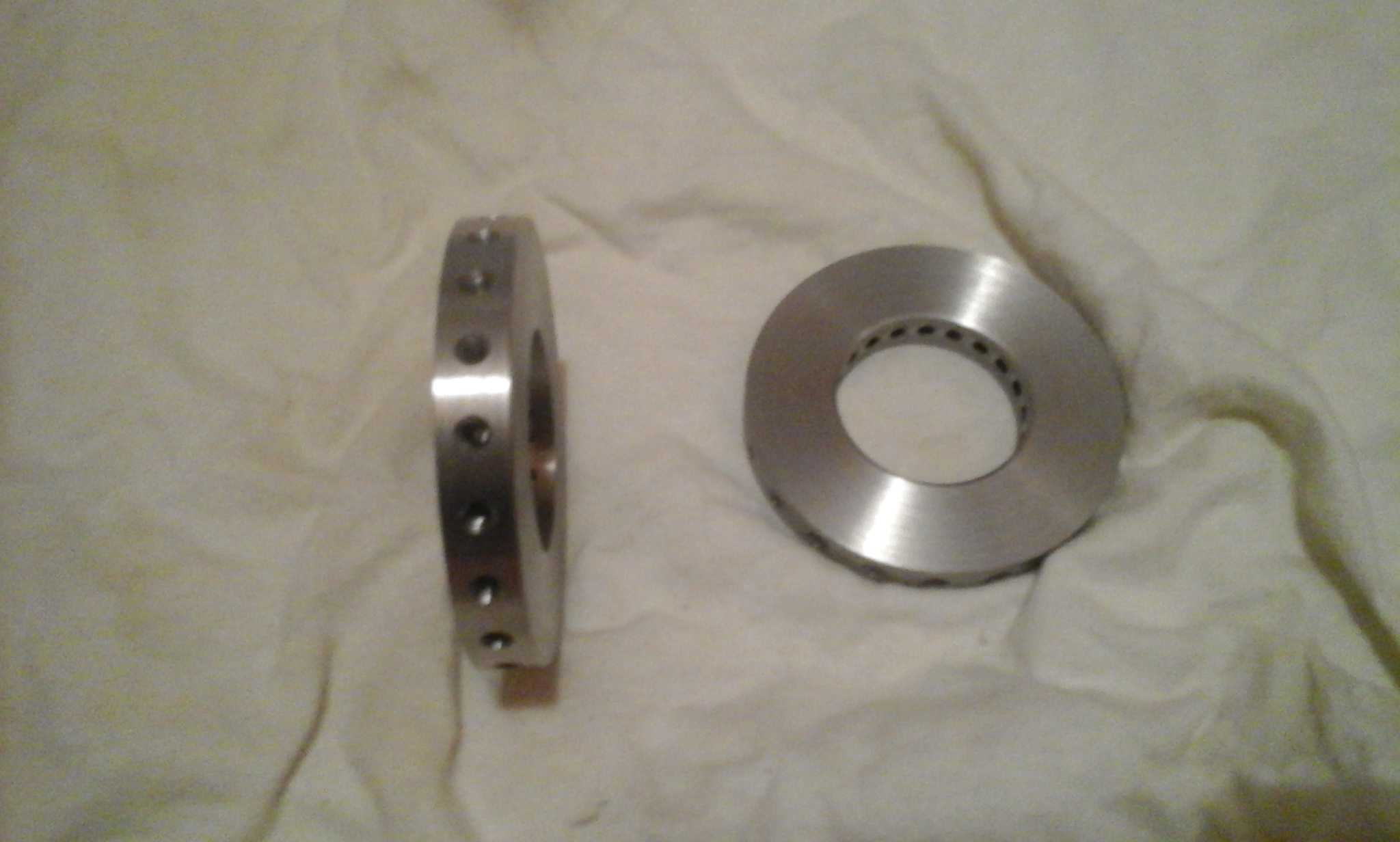

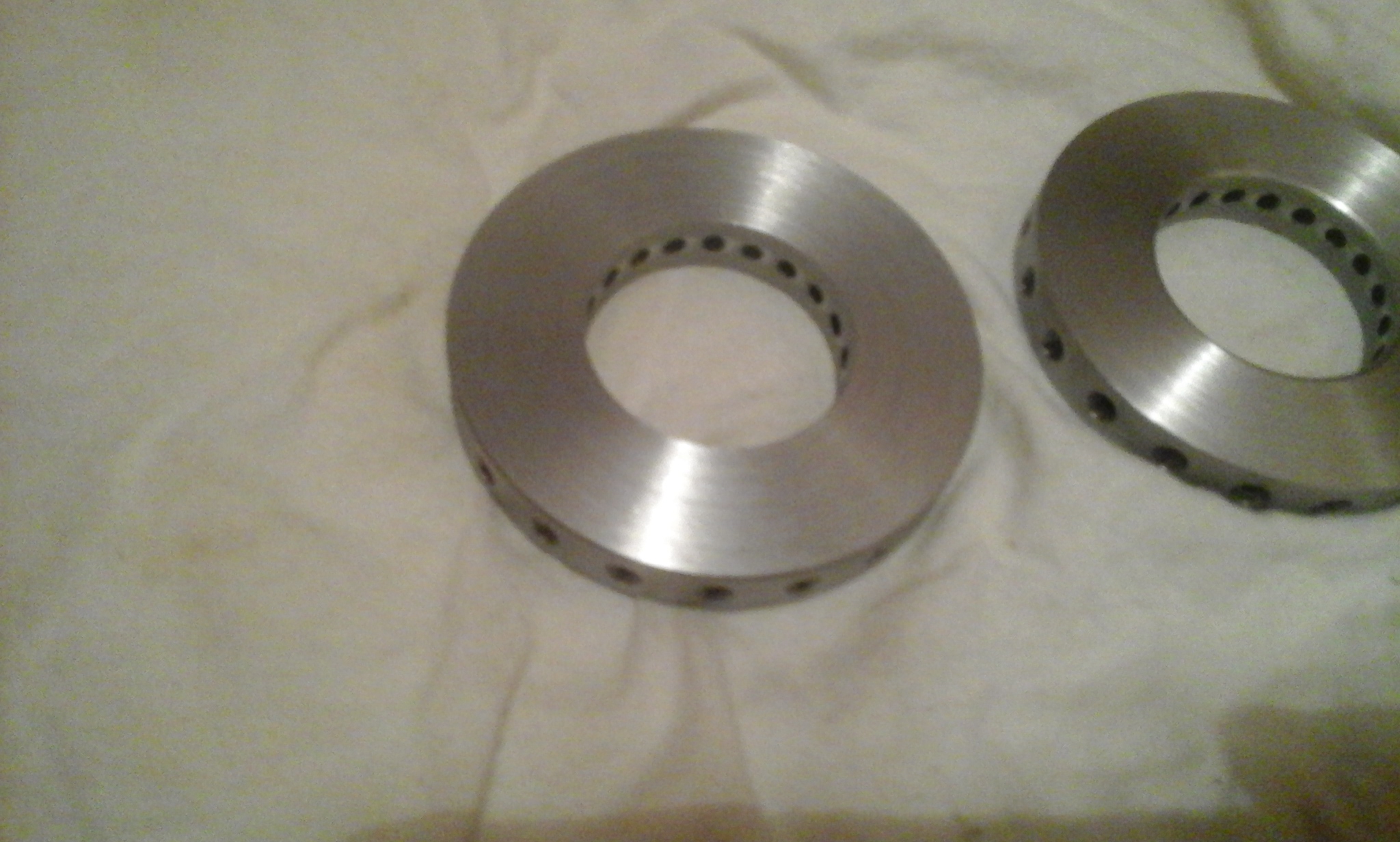

The following user(s) said Thank You: tommylight
