Schematics for 7c81
14 Jun 2023 17:08 #273546
by Donno
Schematics for 7c81 was created by Donno
Is there any mesa guys willing to share the schematics for the 7c81 ? Pretty Pretty PLEASE
I want to buy three but the lady cam told me they will have to redesign because of part shortage 3-6 months. I have a few Spartan 6 LX9 and want to try build one for my production machine.
I want to buy three but the lady cam told me they will have to redesign because of part shortage 3-6 months. I have a few Spartan 6 LX9 and want to try build one for my production machine.
Please Log in or Create an account to join the conversation.
14 Jun 2023 20:18 - 14 Jun 2023 21:06 #273550
by PCW
Replied by PCW on topic Schematics for 7c81
Its a bit of a nuisance for me to pdf-ize the 7C81 schematics with all the
mixed sheet sizes, but you can get most of the wiring from the 7c81.ucf file
in the source.
mixed sheet sizes, but you can get most of the wiring from the 7c81.ucf file
in the source.
Last edit: 14 Jun 2023 21:06 by PCW. Reason: format better
The following user(s) said Thank You: Donno
Please Log in or Create an account to join the conversation.
15 Jun 2023 07:14 #273577
by Donno
Replied by Donno on topic Schematics for 7c81
Thanks for the reply. That helped a bit what IC's do you use to interface with RS-422/RS-485 and FGPA ?
Please Log in or Create an account to join the conversation.
15 Jun 2023 16:25 #273627
by PCW
Replied by PCW on topic Schematics for 7c81
The RS-485 chips are SP491 or equivalent
I think there's a 74LCX04 use to convert
the RX out from the SP491s to 3.3V
and invert the DE signal (though this inversion can also be
done in the firmware)
The port bus switches for 5V compatibility are 74CBT16211Cs
I think there's a 74LCX04 use to convert
the RX out from the SP491s to 3.3V
and invert the DE signal (though this inversion can also be
done in the firmware)
The port bus switches for 5V compatibility are 74CBT16211Cs
The following user(s) said Thank You: Donno
Please Log in or Create an account to join the conversation.
15 Jun 2023 16:25 #273628
by Donno
Replied by Donno on topic Schematics for 7c81

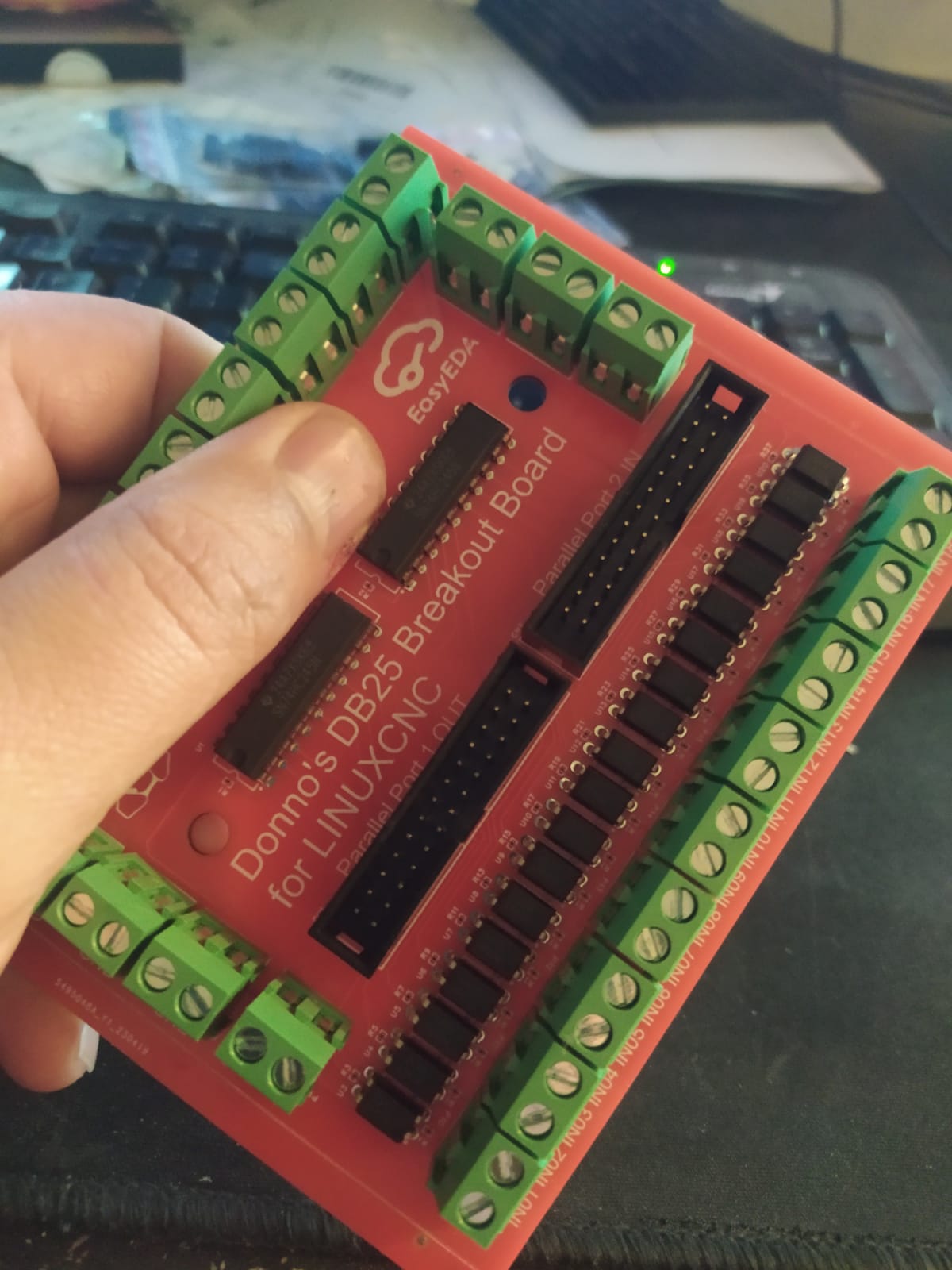

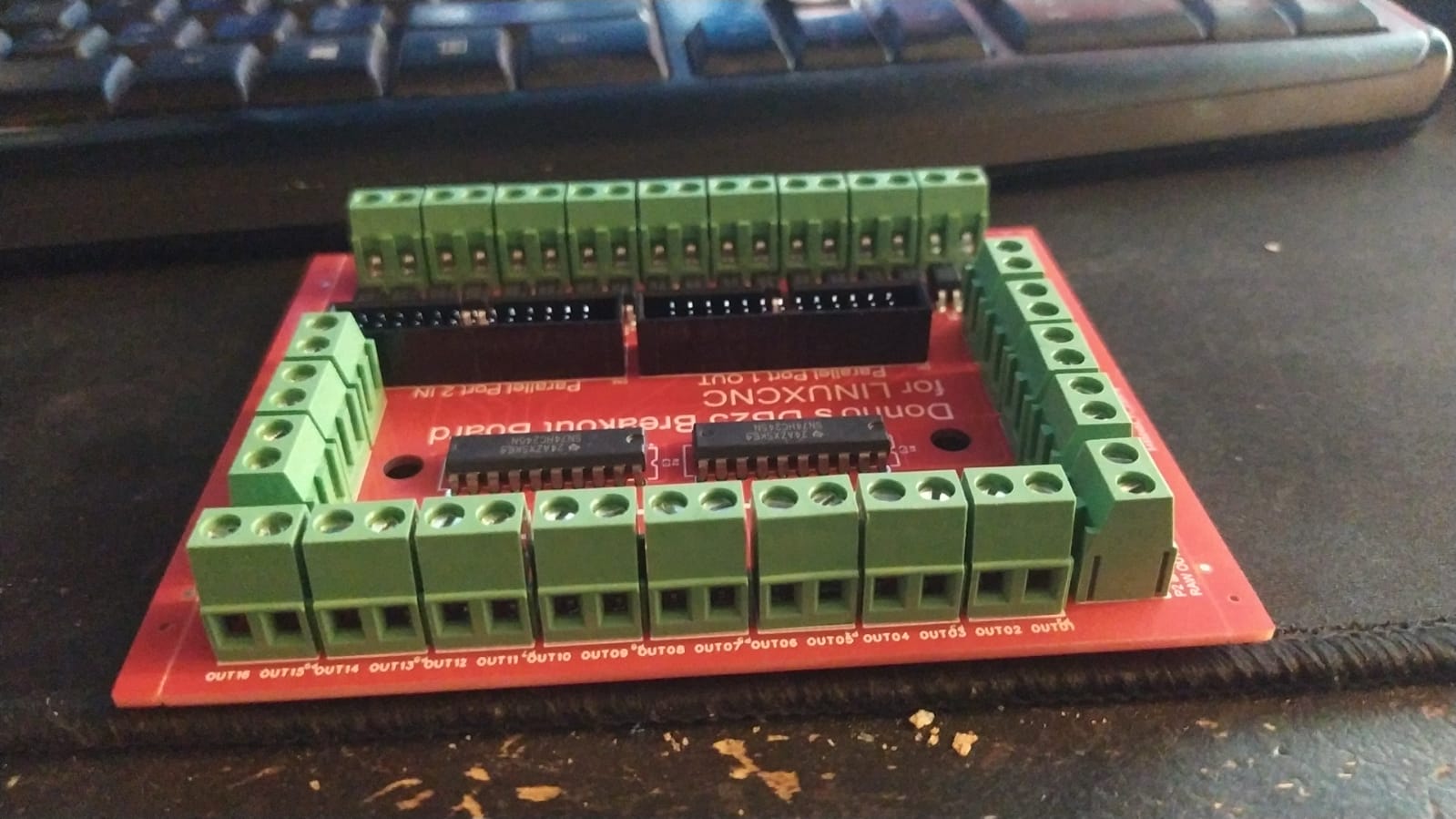

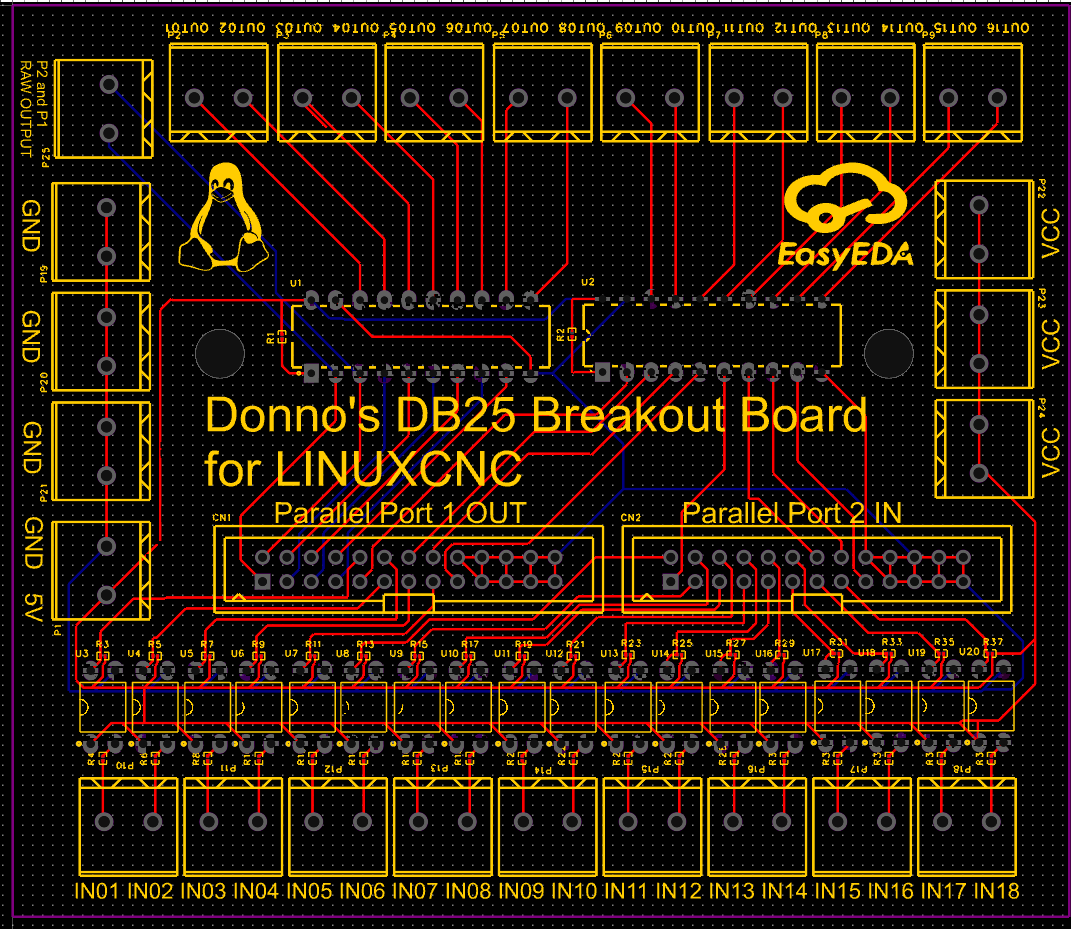

How much to post schematics ? I have been researching the whole day and it will take me some time to design this not to mention to edit configs. I found schematics for 7i92 are the 7c81 and 7i92 close to design ? Can I replace the PI5C16211 with SN74HCT245PWR ? Do use Raspberry 4B for RS422/485 or FGPA ?
I would like 2 x Parallel port and 2 x Serial Port/Modbus ports output from the FGPA Cards
I would like 2 x Parallel port and 2 x Serial Port/Modbus ports output from the FGPA Cards
Please Log in or Create an account to join the conversation.
15 Jun 2023 16:35 #273630
by Donno
Replied by Donno on topic Schematics for 7c81
The following user(s) said Thank You: MrRekt
Please Log in or Create an account to join the conversation.
15 Jun 2023 16:54 #273631
by PCW
Replied by PCW on topic Schematics for 7c81
Ill try an get to this in the next week or so
The following user(s) said Thank You: Donno
Please Log in or Create an account to join the conversation.
15 Jun 2023 16:59 #273632
by Donno
Replied by Donno on topic Schematics for 7c81
Thanks Dude ! Once I have the schematics i will try and design PCB and use items that are available.
Please Log in or Create an account to join the conversation.
21 Jun 2023 07:26 #273982
by Donno
Replied by Donno on topic Schematics for 7c81
Please don't forget about the Schematics
Please Log in or Create an account to join the conversation.
23 Jun 2023 23:21 #274161
by PCW
Replied by PCW on topic Schematics for 7c81
Attachments:
The following user(s) said Thank You: andypugh
Please Log in or Create an account to join the conversation.
