CNC4PC Electronics with EMC2
26 Feb 2011 15:59 #7469
by lbaroudi
CNC4PC Electronics with EMC2 was created by lbaroudi
Hi there,
I have purchased the below hardware that is about to be connected to my hand made CNC from buildyourcnc.com/default.aspx
Breakout board : C11G 1996 www.cnc4pc.com/Store/osc/product_info.ph...th=33&products_id=46
Pendant Interface Card for LPT C22: www.cnc4pc.com/Store/osc/product_info.ph...h=40&products_id=159
MPG4 - 6 Axis Pendant: www.cnc4pc.com/Store/osc/product_info.ph...h=40&products_id=162
MPG4 - 6 Axis Pendant C19: www.cnc4pc.com/Store/osc/product_info.ph...h=25&products_id=155
Power Supply: kelinginc.net/KL-350-97.pdf kelinginc.net/KL-350-36.pdf
Motors Drivers: kelinginc.net/KL-4030.pdf
Motors: kelinginc.net/KL23H286-20-8B.pdf
if someone have any diagram connecting Breakout board C11G to Power Supply KL-350-36 and Motor Driver KL-4030and Motor KL23H286-20 and the rest of hardware to EMC and configuration
and how to make test on EMC2 ubunto 10.10 with external 5v power supply please advice for making life easy for me
Labib
I have purchased the below hardware that is about to be connected to my hand made CNC from buildyourcnc.com/default.aspx
Breakout board : C11G 1996 www.cnc4pc.com/Store/osc/product_info.ph...th=33&products_id=46
Pendant Interface Card for LPT C22: www.cnc4pc.com/Store/osc/product_info.ph...h=40&products_id=159
MPG4 - 6 Axis Pendant: www.cnc4pc.com/Store/osc/product_info.ph...h=40&products_id=162
MPG4 - 6 Axis Pendant C19: www.cnc4pc.com/Store/osc/product_info.ph...h=25&products_id=155
Power Supply: kelinginc.net/KL-350-97.pdf kelinginc.net/KL-350-36.pdf
Motors Drivers: kelinginc.net/KL-4030.pdf
Motors: kelinginc.net/KL23H286-20-8B.pdf
if someone have any diagram connecting Breakout board C11G to Power Supply KL-350-36 and Motor Driver KL-4030and Motor KL23H286-20 and the rest of hardware to EMC and configuration
and how to make test on EMC2 ubunto 10.10 with external 5v power supply please advice for making life easy for me
Labib
Please Log in or Create an account to join the conversation.
27 Feb 2011 11:29 #7485
by BigJohnT
Replied by BigJohnT on topic Re:CNC4PC Electronics with EMC2
Just in case no one has the exact hardware as you and has not taken the time to create a tutorial on assembling it you might start by asking a specific question at some point as you assemble your project. Try to include as much detail about what you have done and what your unsure about when you ask the question.
John
John
Please Log in or Create an account to join the conversation.

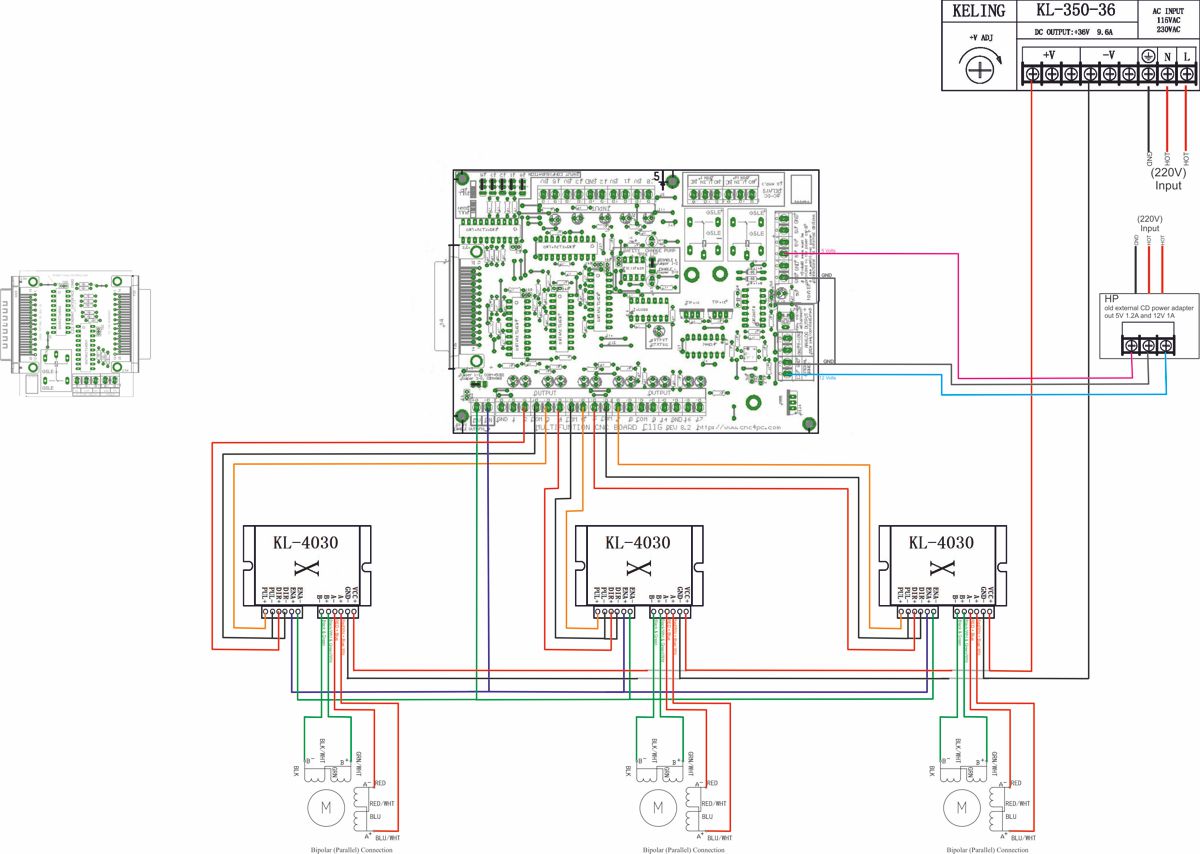

04 Mar 2011 14:51 - 04 Mar 2011 15:00 #7578
by lbaroudi
Replied by lbaroudi on topic Re:CNC4PC Electronics with EMC2
Last edit: 04 Mar 2011 15:00 by lbaroudi.
Please Log in or Create an account to join the conversation.
05 Mar 2011 11:31 #7594
by Rick G
Replied by Rick G on topic Re:CNC4PC Electronics with EMC2
Looks good.
To get things started select
Stepconf
from the cnc menu and run the set up program to get the motors running.
Later you may have to edit the setup for other devices.
A lot can be learned by looking at the sample configs that are included.
Good luck and have fun.
Rick G
To get things started select
Stepconf
from the cnc menu and run the set up program to get the motors running.
Later you may have to edit the setup for other devices.
A lot can be learned by looking at the sample configs that are included.
Good luck and have fun.
Rick G
Please Log in or Create an account to join the conversation.
05 Mar 2011 13:02 #7595
by Rick G
Replied by Rick G on topic Re:CNC4PC Electronics with EMC2
Be sure to run the Latency test first to get the numbers for your computer.
If you have not done so be sure to read the docs here especially the getting started guide.
www.linuxcnc.org/content/view/5/5/lang,english/
Rick G
If you have not done so be sure to read the docs here especially the getting started guide.
www.linuxcnc.org/content/view/5/5/lang,english/
Rick G
Please Log in or Create an account to join the conversation.
09 Mar 2011 16:13 #7671
by arturod
Replied by arturod on topic Re:CNC4PC Electronics with EMC2
Please Log in or Create an account to join the conversation.
10 Mar 2011 12:57 #7683
by BigJohnT
Replied by BigJohnT on topic Re:CNC4PC Electronics with EMC2
Arturo,
Hi and welcome to the forum.
John
Hi and welcome to the forum.
John
Please Log in or Create an account to join the conversation.
05 Oct 2016 07:11 #81244
by skelem
Replied by skelem on topic Re:CNC4PC Electronics with EMC2
Did you get this working? I'm trying to set up my BYCNC Greenlean. I have the C11G board and would like to run linuxcnc.
Can you send me a copy of your linuxcnc config files for your device? It would help a lot.
Thanks,
Steve
Can you send me a copy of your linuxcnc config files for your device? It would help a lot.
Thanks,
Steve
