Hilfe bei Pinbelegung ERL PCSE200 an Mesa 7i96S (Step/Dir

More
01 Oct 2025 18:06 #335673 by minimac
Hallo zusammen,ich habe einen Servoregler ERL PCSE200 ext. M24.42E PLE60-40

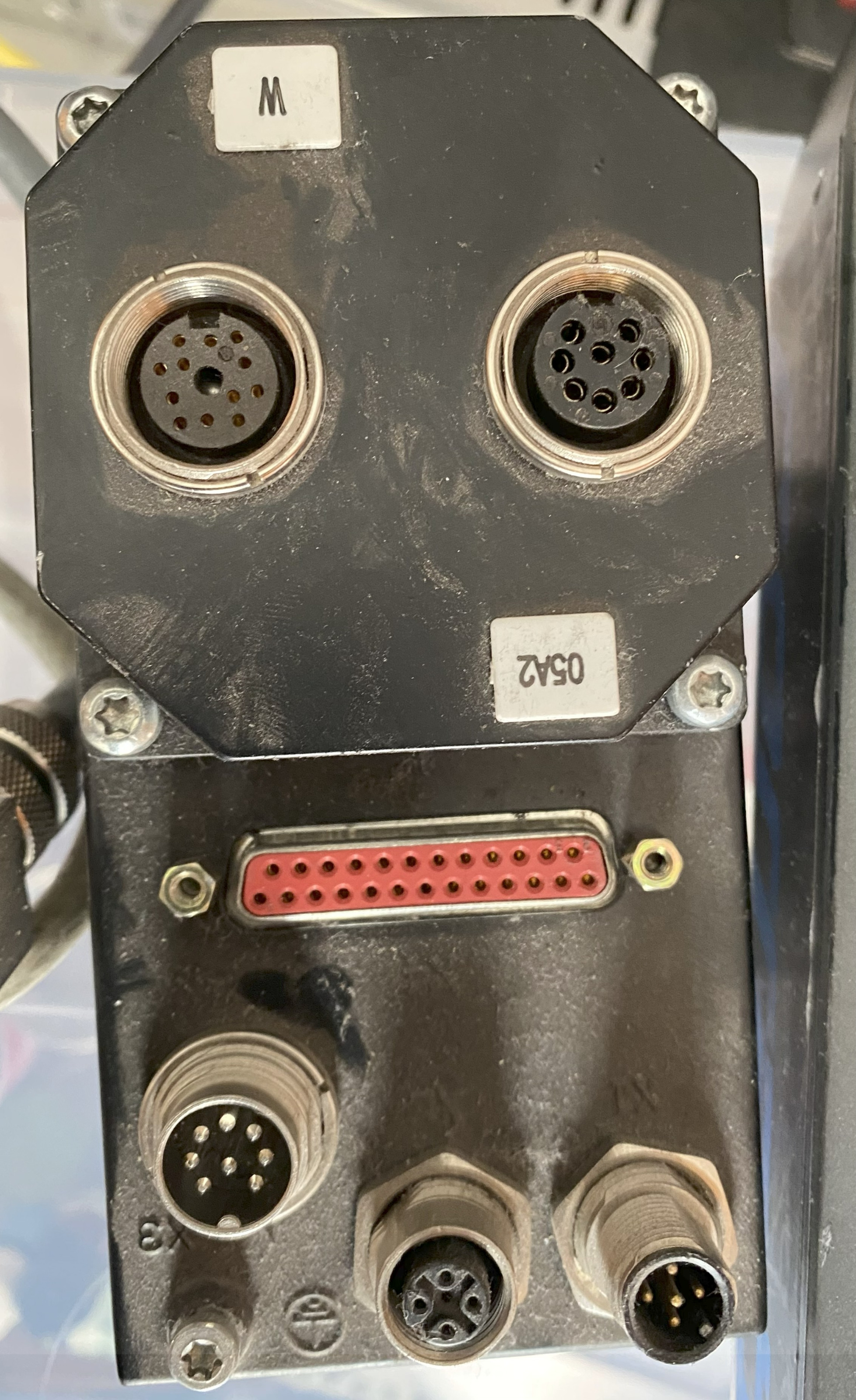

Die Steuerung erfolgt normalerweise über CANopen, ich würde den Antrieb aber gerne über Step/Dir mit meiner Mesa 7i96S in LinuxCNC ansteuern (da ich noch weitere Achsen so betreibe).Am Gerät befindet sich ein 26-poliger Sub-D-Stecker für die Signale. Leider habe ich bisher keine Dokumentation zur Pinbelegung (STEP, DIR, ENABLE, GND, Versorgung etc.) gefunden.
Ich habe den Hersteller ERL bereits kontaktiert, aber vielleicht hat hier jemand im Forum die Unterlagen oder praktische Erfahrung mit diesem Regler.Besonders wichtig wäre für mich:
  • Welche Pins sind STEP+, STEP–, DIR+, DIR–, ENABLE?
  • Welche Logikpegel erwartet der Regler (5 V TTL oder 24 V / differenziell)?

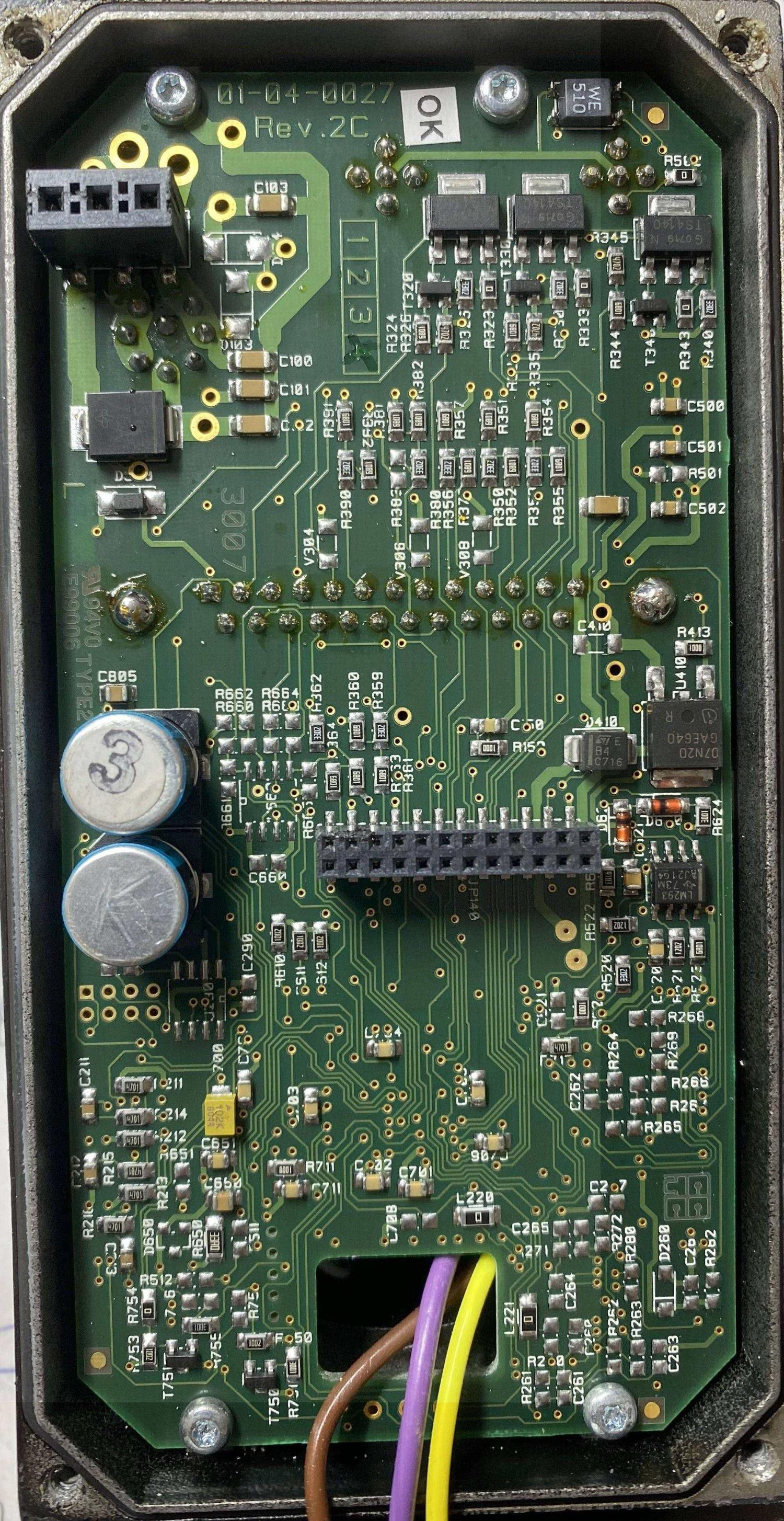

Fotos vom Gerät (Typenschild, Anschlüsse, Platinenrückseite) kann ich bei Bedarf hochladen.Vielen Dank schon einmal für eure Unterstützung!Grüße Jochen

Please Log in or Create an account to join the conversation.

More
02 Oct 2025 23:58 - 03 Oct 2025 00:00 #335753 by langdons
A picture might be helpful.

You might need to disassemble it a bit in order to decipher which pins do what.

(GND and VCC pins will probably have thicker wires, for example)

When in doubt, upload a photo or two; there's no downside to doing so.
Last edit: 03 Oct 2025 00:00 by langdons.
