  5. Kinematic model for a 5axis mill with universal (nutating) head

Kinematic model for a 5axis mill with universal (nutating) head

More
25 May 2024 19:10 #301438 by woai312742
Replied by woai312742 on topic Kinematic model for a 5axis mill with universal (nutating) head
LinuxCNC_Demo_Configs\table-rotary_spindle-rotary-nutating\Documentation\XYZCBA_TRSRN

Attachments:

Please Log in or Create an account to join the conversation.

  • Aciera
  • Aciera's Avatar Topic Author
  • Offline
  • Administrator
  • Administrator
More
26 May 2024 08:57 #301465 by Aciera
Replied by Aciera on topic Kinematic model for a 5axis mill with universal (nutating) head
Ah, yes.
Missed to change those when trying to harmonize the three papers. The images were also wrong. Should be fixed now.

Thanks for reporting.

Please Log in or Create an account to join the conversation.

More
28 May 2024 09:26 - 28 May 2024 09:32 #301648 by woai312742
Replied by woai312742 on topic Kinematic model for a 5axis mill with universal (nutating) head

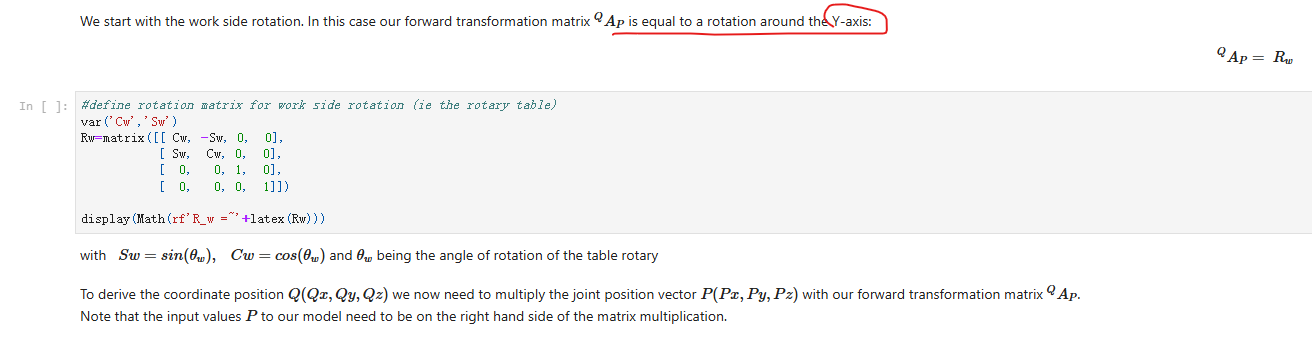

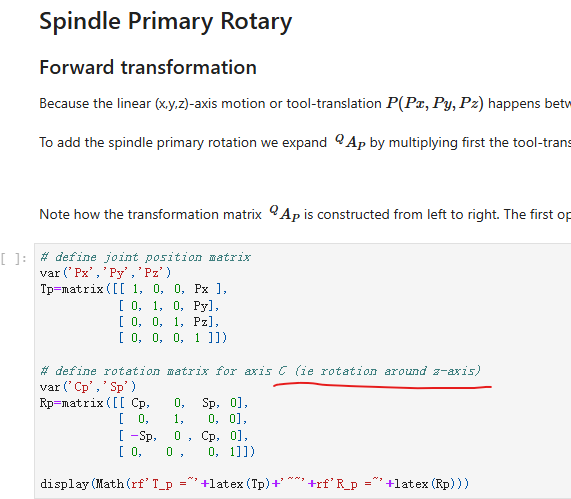

Hi Aciera. Thank you for your contribution.Now I have some mathematical problems with the tool kinematic model,about forward transformation.

Why do all rotation matrices need to be transposed or inverted?I don't really understand the physics of what this means.
Attachments:
Last edit: 28 May 2024 09:32 by woai312742.

Please Log in or Create an account to join the conversation.

  • Aciera
  • Aciera's Avatar Topic Author
  • Offline
  • Administrator
  • Administrator
More
28 May 2024 11:35 #301661 by Aciera
Replied by Aciera on topic Kinematic model for a 5axis mill with universal (nutating) head

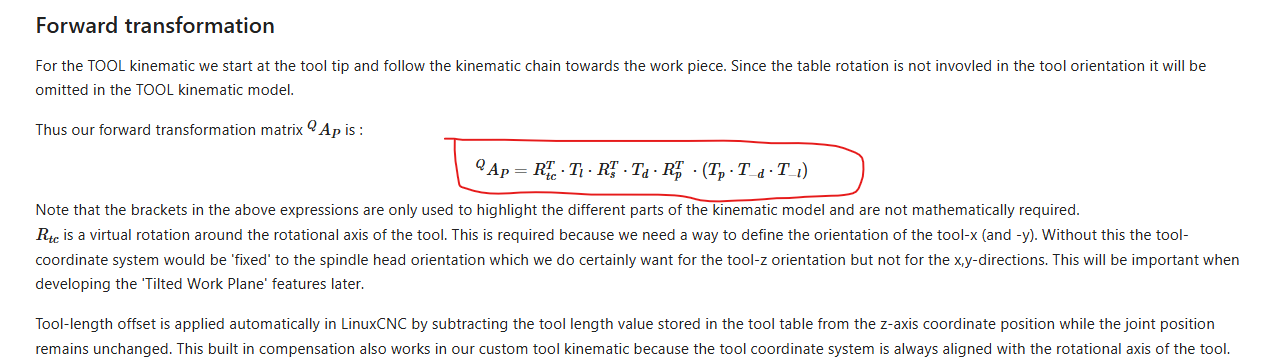

For the TOOL kinematic model we start at the tool and work backwards to the work coordinates. A backwards rotation is the transposed rotation matrix.

Please Log in or Create an account to join the conversation.

More
24 Jul 2025 13:58 #332261 by akg1904
Replied by akg1904 on topic Kinematic model for a 5axis mill with universal (nutating) head
Hi Aciera,

Its been a long time.
I saw your work and it was great.
File Attachment:

but I have a XYZAC-TRT machine and for some work I need to run my machine as 3+2 with TWP.
I saw this video as it was TRT machine:

So I want to know how I can use my machine as such.

Thank You in advance,

Regards,
Abhishek


Please Log in or Create an account to join the conversation.

  • Aciera
  • Aciera's Avatar Topic Author
  • Offline
  • Administrator
  • Administrator
More
24 Jul 2025 15:56 #332268 by Aciera
Replied by Aciera on topic Kinematic model for a 5axis mill with universal (nutating) head
See:
forum.linuxcnc.org/show-your-stuff/55248...-table-rotary#320834

Please Log in or Create an account to join the conversation.
