Sure, but I would get rid of the LPT-port requirement and could use any computer, not only this specific one (if broken one day...).

Which Mesa card would be your go-to in 2025?

And is there a card combining outputs (for the stepper drivers) as well as inputs for linear magnetic encoders or would this be a combination of two cards?

N25 G0 X0. Y0. Z25.
N26 M99
O3
N27 G91 G0 Z-23.
N28 G1 Z-12. F300

When i Look at this lines, there is incremental rapid from Z25 to Z2 and feed move incremental to -10
The moves with G3 are all incremental G91, so a pitch of 1, with lead in and out exactly to Z0
Line 44 switch back to abs G90

Sounds like it did not get an Arc OK signal.

The criteria is different depending what Mode you are using:

linuxcnc.org/docs/devel/html/plasma/qtplasmac.html#plasma:modes

Hi .
I'm trying to output an operation with thread milling but the gcode output for z position is static.
Code:
(THM_DRILL.NGC)
( 2-AUG-2025)
N1
N2 #12=1
N3 #13=0
N4
N5 #14=1
N6 #15=0

N7  G21 G49 G0 G54 ( ABS mm clr_Z_offset rapid_motion )

(MSG, Óñòàíîâè T1.
N8 M9 (turn all coolant off)

o106 repeat [#14]
o105 repeat [#12]

S3500 M3
G0 X0. Y0. Z25.
N9 M98 P2

N10 g0 x0 y0
N11 g92 x-#13
N12 o105 endrepeat
N13 g92.1
N14 g90
N15 g92 y-#15
N16 o106 endrepeat
N17 g92.1
N18 g90
N19 M30
O2
N20 (

---

)
N21 (THM-DRILL - THREAD)
N22 (

---

)
N23 G0 X0. Y0. Z25.
N24 M98 P3
N25 G0 X0. Y0. Z25.
N26 M99
O3
N27 G91 G0 Z-23.
N28 G1 Z-12. F300
N29 G41 G1 X7.379 Y-1.516 F800
N30 G3 X0.286 Y8.692 Z0.12 R6.15
N31    Z1. I-7.665 J-7.176
N32    Z1. I-7.665 J-7.176
N33    Z1. I-7.665 J-7.176
N34    Z1. I-7.665 J-7.176
N35    Z1. I-7.665 J-7.176
N36    Z1. I-7.665 J-7.176
N37    Z1. I-7.665 J-7.176
N38    Z1. I-7.665 J-7.176
N39    Z1. I-7.665 J-7.176
N40    X2.835 Y-7.176 Z0.88 R-10.5
N41    X-6.15 Y6.15 Z0.12 R6.15
N42 G40 G1 X-4.35 Y-6.15
N43 G0 Z24.88
N44 G90 M99

The Z axis stays at 1 mm.
I did discover if you open the machine editor of youre machine and go to Working Style => General and you put Software Transform to YES , the gcode output gives the corect z output:
Code:
N16 (

---

)
N17 (THM-DRILL - THREAD)
N18 (

---

)
N19    X0. Y0. Z25.
N20    Z2.
N21
N22 G1 Z-10. F300
N23 G41
N24 G1 X7.379 Y-1.516 F800
N25 G3 X7.665 Y7.176 Z-9.88 R6.15
N26    Z-8.88 I-7.665 J-7.176
N27    Z-7.88 I-7.665 J-7.176
N28    Z-6.88 I-7.665 J-7.176
N29    Z-5.88 I-7.665 J-7.176
N30    Z-4.88 I-7.665 J-7.176
N31    Z-3.88 I-7.665 J-7.176
N32    Z-2.88 I-7.665 J-7.176
N33    Z-1.88 I-7.665 J-7.176
N34    Z-0.88 I-7.665 J-7.176
N35    X10.5 Y0. Z0. R-10.5
N36    X4.35 Y6.15 Z0.12 R6.15
N37 G40
N38 G1 X0. Y0.
N39
N40 G0 Z25.
The problem is there is no more subroutines, the o call does not exist anymore so is M98 , M99.
The post processor is from here: github.com/G-S-E/SolidCAM-postprocessor-for-LinuxCNC
Thanks

Thats what i got so far

I tried it again without changing anything and the plasmacutter started without firing at startup. Then I loaded the materal and tried to make a cut through 10mm mild steel. The torch fired, but the machine didn't move. And the torch went on and of a few times.
Why does that happen ? And why doesn't the machine move ?

more fun

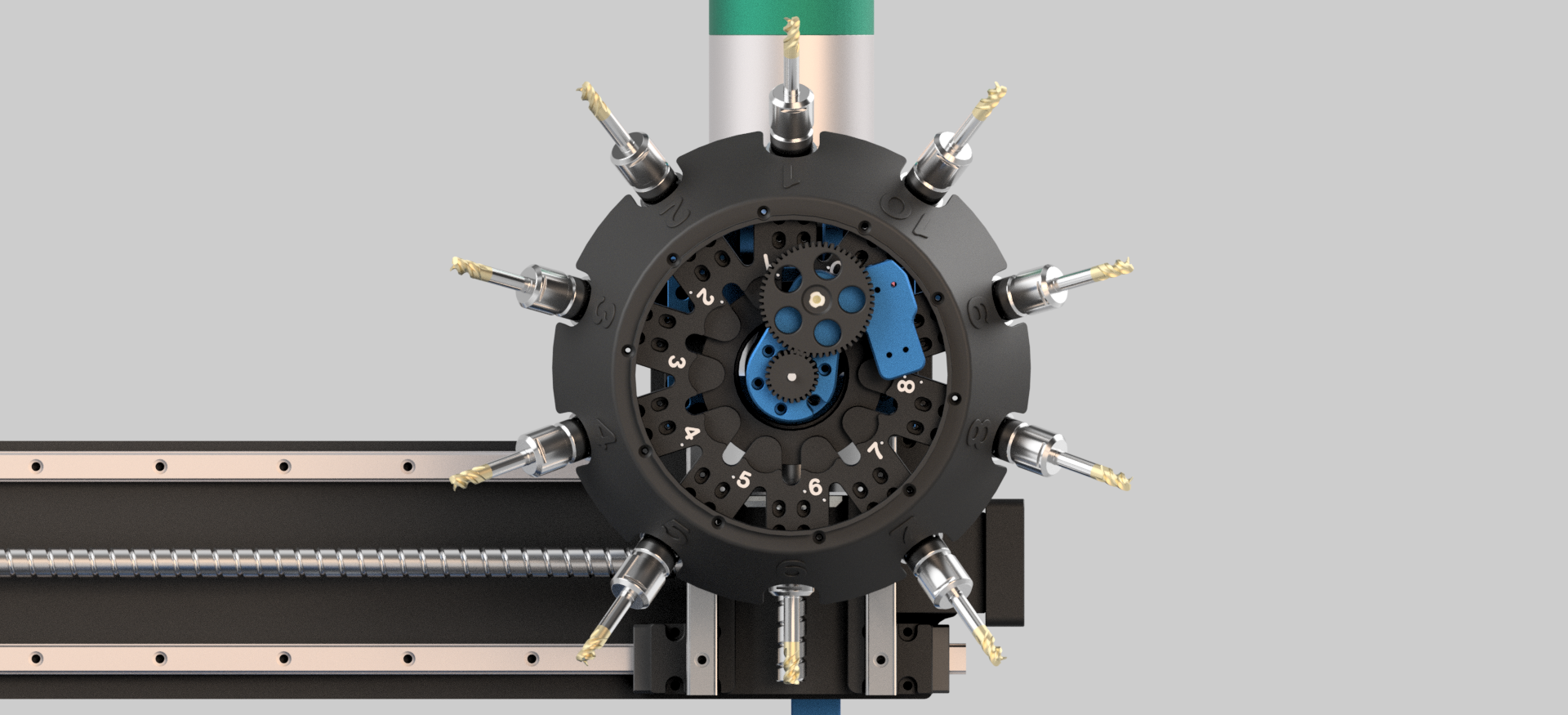

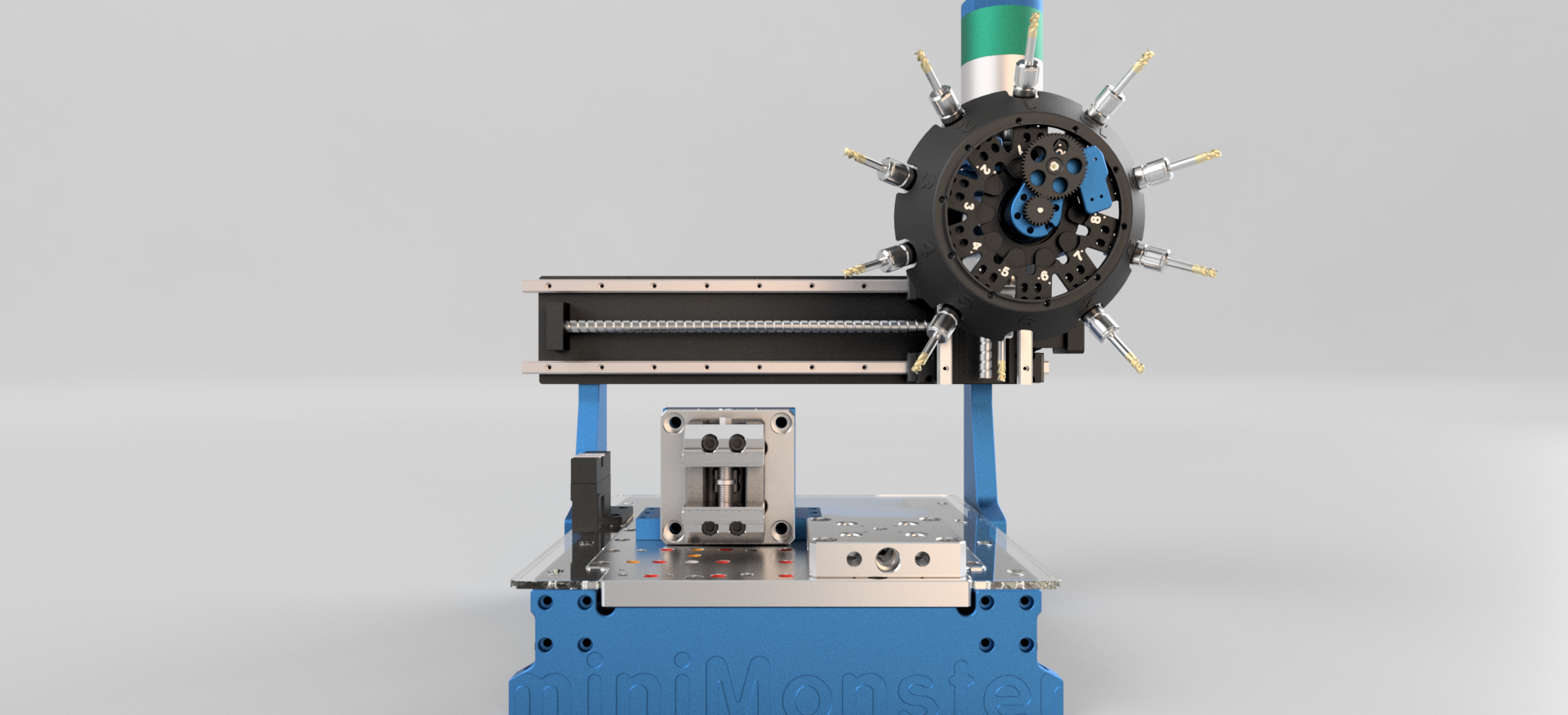

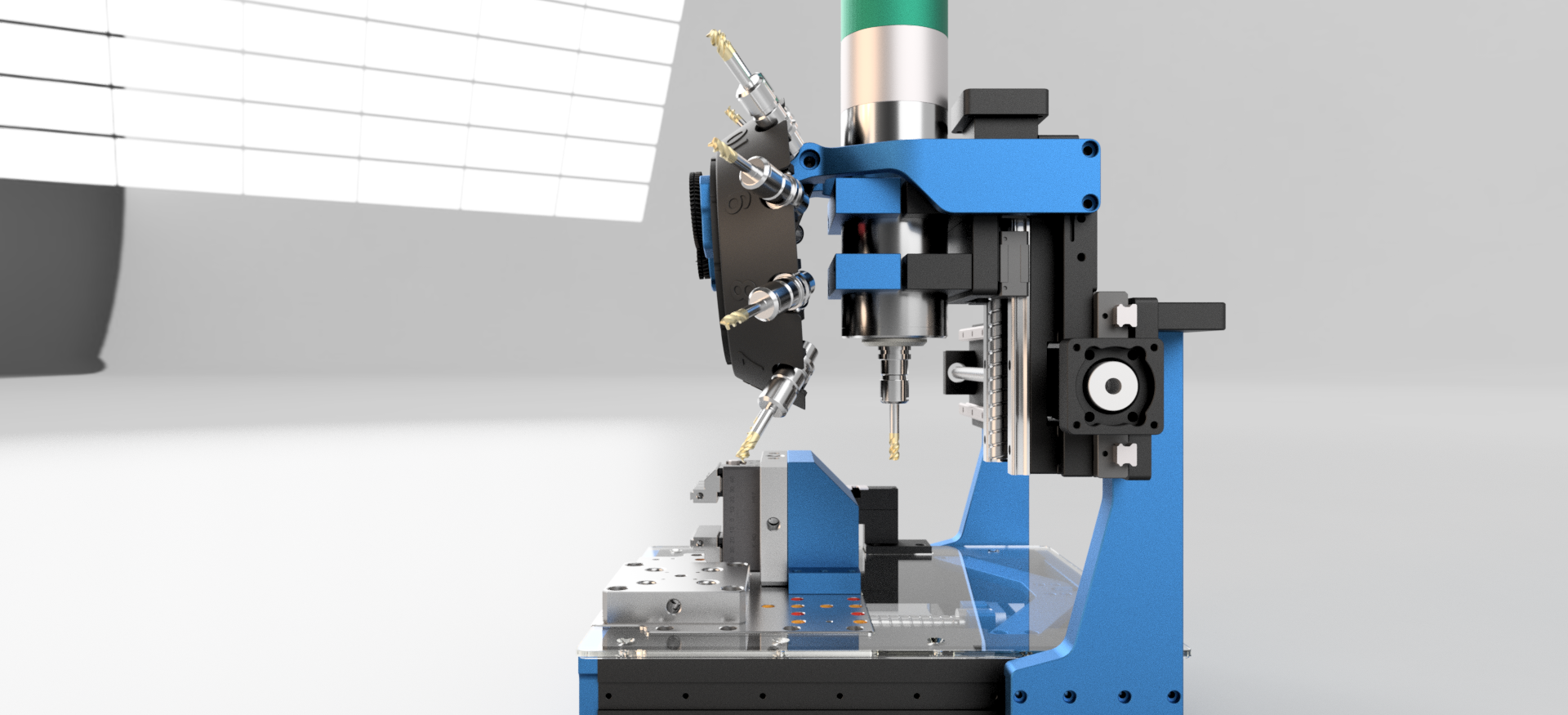

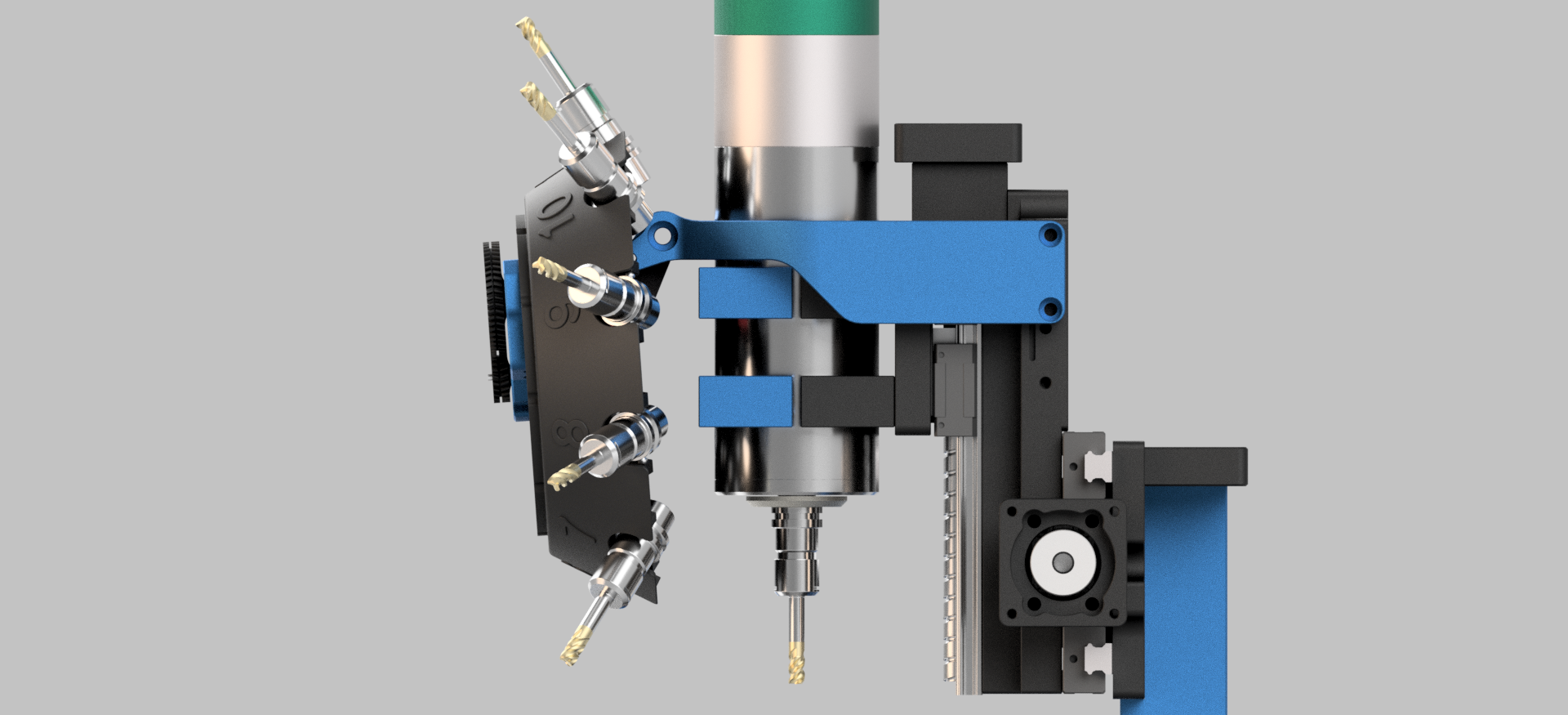

i think im almost ready to order the atc parts.







i think i found the correct solution for this problem in the pico examples

Predictable latency is not the main issue, spikes are the problem.

Did you change the governor to performance?

askubuntu.com/a/1530756/1717310

It helped me.

1200 steps/rev assumes your motor is 200 steps/rev

Why stepper drivers don't just list the microstepping fraction, I'll never know.

Most people hate fractions, maybe that's why.

That means 1/6th step.

A modern notebook might not be better.

Laptops are designed to be light, small and power-efficient.

Low latency is not usually their main design feature.

Newer is not always better.

I'd be wary of any auto-tuning software.

It might work, but could also be placebo.

Hello

i am trying to setup ethercat on linuxcnc 2.9.4.
I use these instructions

when i want to start the service it gives an error:
 modprobe: ERROR: could not insert 'ec_master': Key was rejected by service

these are the conf params i set:

MASTER0_DEVICE="dc:4a:3e:52:df:de"
DEVICE_MODULES="generic"

i based it on this:
Does anyone know where i went wrong?
I did first install it and find out that i was on a sercure boot, so i disabled it in the bios.

Kind regards,
Andries


ok, thanks i check it out.
worked perfectly. 1,5mm difference. Is there a way to compensate for this directly in pncconf. the Y2 sensor is reached 1.5mm faster then Y, so Y2 should move 1.5mm further in the homing sequence?

I was wrong!. It can read rpm in both forward and reverse after watching spindle-vel-fb-rpm in halshow.
