I think you may be misinterpreting how the invert parameter operates,
it does not change the state of the parport.0.pin-NN-out hal pin.
(It cannot as this hal pin would be driven by a hal signal)
but rather changes the physical output polarity. You cannot
detect this change in the parport.0.pin-NN-out hal pin but only by
measuring the actual parallel port hardware output pin.

I may be misunderstanding something, but I personally would not want to think about where I need to insert an M1 to manually change a holder. I want LinuxCNC to make that decision automatically based on the tool table.

That’s not actually the case in my system.
The diameter is only used on the “tool descriptor” entries, which represent toolholders, not real tools.
These descriptor tools never get used for cutting, so they never participate in G41/G42 or wear offsets.
But yes—this could just as well use the Pocket field. I didn’t think of that originally.
I will lrady make that change in the rest off this post.

Why I believe encoding the holder layout in the tool table is better

Here is a heavily simplified tool table to show the idea:
T5 P1 X0 Z0 D0 // holder #1 in turret pocket 1
T6 P— X100.34 Z-15 D10 // spot drill
T7 P— X120.876 Z-32.657 D10 // drill
T8 P— X140.298 Z-15 D10 // drill
T9 P— X160.3 Z-15 D10 // boring bar

T10 P5 X0 Z0 D0 // holder #2 in pocket 5 (5%5 = 0 → rear post)
T11 P— X100.23 Z23.456 D0 // parting blade

The descriptor (T5, T10, T15, …) stores the physical pocket number. so they are th single sorse of trus for this.

This means LinuxCNC can always determine:
Whether a manual holder change is needed
Whether the correct holder is already in place
Where the turret needs to rotate
Which tools belong to which holder
Whether a requested child tool even exists

If we don’t have this structure, I don’t see how LinuxCNC could determine where a tool belongs.
You’d have to manually encode the correct pocket into every single tool entry.
This leads to another issue.
Problem with the pocket-in-every-tool approach

Imagine two tools in CAM that both used to be in turret position 1.
But for a different job, you need to rearrange holders.

Then you must:
Change the pocket numbers in LinuxCNC for all affected tools
Update your CAM tool library to match
Remember to do this every time you rearrange holders
Add M1 manually at the right positions
Hope nothing gets out of sync between CAM and LinuxCNC
This is exactly the kind of workflow that causes human error.


Maybe I am overcomplicating things — but in my head this system makes sense.
It gives LinuxCNC the information it needs to make reliable decisions, without forcing the user to manually sync CAM, tool table, and machine setup every time a different combination of holders is used.

I'm a bit confused, if I want to start the system with an output at 1, do I apply setp... inverter true

This should show me the output activated, but I don't see it that way; I still see it turned off. I don't know if I'm misinterpreting it or if it's not working for me, which is why I left a video showing it.

At startup, the system,(for example the pin 1-out) does not change when an inverter is applied.
You can watch the video I uploaded in this thread to see what happens

Hi,
thanks a lot for the suggestions.

Just to clarify: I had already tried short Dupont wires and a short IDC ribbon, but without the “every second wire = GND” scheme. The cable was about 10 cm long and SPI still failed when the hot wire or motors were active.

Now I’m going to rebuild the SPI cable exactly as you described: ribbon cable with every second conductor GND, all GND wires tied together and connected to GND on both the RPi and the SKR. I will also add a separate, thicker GND wire between the boards and keep the SPI cable as short as possible.

One question: for the ribbon cable, should I place the signals like
GND – SCK – GND – MOSI – GND – MISO – GND – CS – GND – GND,
or do you recommend a different order?

I will report back with results after I rebuild the cable.

Sold.

Coordonnées polaires:
linuxcnc.org/docs/html/gcode/overview.ht...de:polar-coordinates

I suspect you dont need to do any of that. LinuxCNC tool tables aready define both tool number and pockets. Tool numbers are unique, but pockets dont have to be.

There is a carousel tool changer comp which supposedly already works with the Schaublin tool changer.
www.forum.linuxcnc.org/10-advanced-confi...carousel-toolchanger

So lets consider your example.
For a job we mount all of these tools. The first three go on the three postion gang tooling holder you have. We mount that in turret position 1 which in the tool table is pocket 1.
T1- Spot drill - Pocket 1
T2- Drill - Pocket 1
T3- boring bar - Pocket 1

T4 - RH VCMT turning tool in pocket 2
T5 - Kurling tool in pocket 3
T6 - LH VCMT turning tool in pocket 4
T7 - but we also need a threading tool, so that is on another tool holder, and will be manually changed into pocket 1.

T8 - Parting tool on the rear tool post, which we will call Pocket 5.

I have not looked at the code of that carousel.comp, but suspect it only trigers activity of the tool holder when a pocket in it's assigned range is called.  So if pockets 1-4 are assigned in the comp to the carousel, then the behaviour would be:

At the start of the program, I would add an M1 and a pop up message to remind that the gang tool has to be in pocket 1.
The M6T1G43, the carousel indexes back to pocket 1, if not already there.
First three M6TxG43, the carousel is not called, LinuxCNC just assigns the correct called tool, offset, orientation and nose radius, and continues.
M6T4 G43 - Turrent indexes once, then LCNC assigns the correct called tool, offset, orientation and nose radius, and continues.
It would be at this point that I would have programmed in the M1 stop, to manually remove the gang tool holder with it's T1-3, and load T7.
M6T5 ( and T6) Indexes around one.
Calling M6T7G43 would rotate the turret back to pocket 1, with its changed tool.
M6T8G43 I would expect to again do nothing with the turret and just load the offsets for the parting tool.

It would probably be a good idea to add another M1 and text pop up at the end of the program to remind to reinstall the gang tool in pocket one, so the program is ready to go on a restart.

Of course I could be wrong about that carousel.comp not moving the turret on a tool change which calls a pocket outside it's range (or no pocket). But if that is the case, it would be best to modify the comp. Misusing the tool diameter for this would lose the ablity to do tool radius compensation, which is important on a lathe.

CAM software doesn't care where the tools come from. It just assumes the appear with the correct offsets, orientation and radius.

For tool table hygiene, it might be good to standardise like anything in pocket 1 is called T1xx, in pocket 5 -->T5xx etc.
Cheers,
Mark



There might be something in the cia402pv code.
The original cia402 component didn't allow mode switching, it took the first csp_mode value at startup.
I need to at least go over that part to make sure mode switching works.
But I doubt that's the reason.

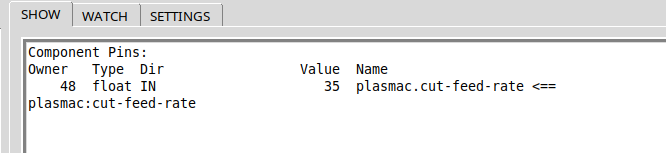

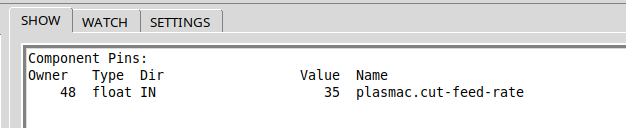

Start using the debugging tools. Halshow and maybe halscope to follow the values over time
to find out the reason for the following error.

Yes I use his code for tracking the positon.

It also seems like if I tested the pv mode not long enough, because if I let the servo run with for example 600rpm, it throws a joint0 following error after some time. Is this even possible in pv mode? I thought this is only a velocity command without feedback loop?

I also changed the code back to spindle.0.speed-out instead of spindle.0.speed-out-rps (of course with a scale change), but the behaviour is exactly the same.

Excellent info. I've started working on a similar procedure.There are a few more optimisations but I'll test before sharing anything.
Now PREEMPT_RT is in the mainline, there are a lot of articles emerging about  RT tuning.

I've had a bunch of issues with the TB6600 drives, both missed steps and failed parts. Although they might have been knockoffs but still.
I've used the DM556 series exclusively since then with no issues.

But I've already done that, even if it have been with GRBL and ESTL instead of LinuxCNC.

I already have both the EtherCat servos and EtherCat IO so that is the way forward in this project.

Top work.

The thing is there is a few users of the RPi, I know about 3 personally, but very rarely do they post or answer any questions. So it gets left to a few to get the job done.
Personally I like the RPi5 I just acquired a second one thanks to my son for father's Day and grabbed the same waveshare housing and Nvme adapters I'm using on the mill.
I have been wondering about including a basic 3 axis Byte2Bob config in the next experimental image. Your thoughts ?
Would you be ok with some of your attachments, with due credit, being included ?

Cheers
Rob

Some advice regarding chatgpt and AI in general for help. Currently it is not a good idea asking about Linuxcnc, many many times it gives answers that make no sense and will not work.

I wonder if it would be worth having a sticky thread that is an index to some of these great posts regarding latency and such.
