Difficulties in probing
15 Oct 2021 03:09 #223155
by Jflesburg
Replied by Jflesburg on topic Difficulties in probing
Still fighting it. I set up a HAL meter with the input hm2_7i96.0.gpio.001.in and a HAL meter with plasmac.float-switch. Both become TRUE when the float switch is made along with the on-screen indicator, but still isn't working right. Z travels down fast until float switch is tripped, then z keeps traveling down but at a slow speed. When timer completes, z travels up back to start position.
Where else should I be looking?

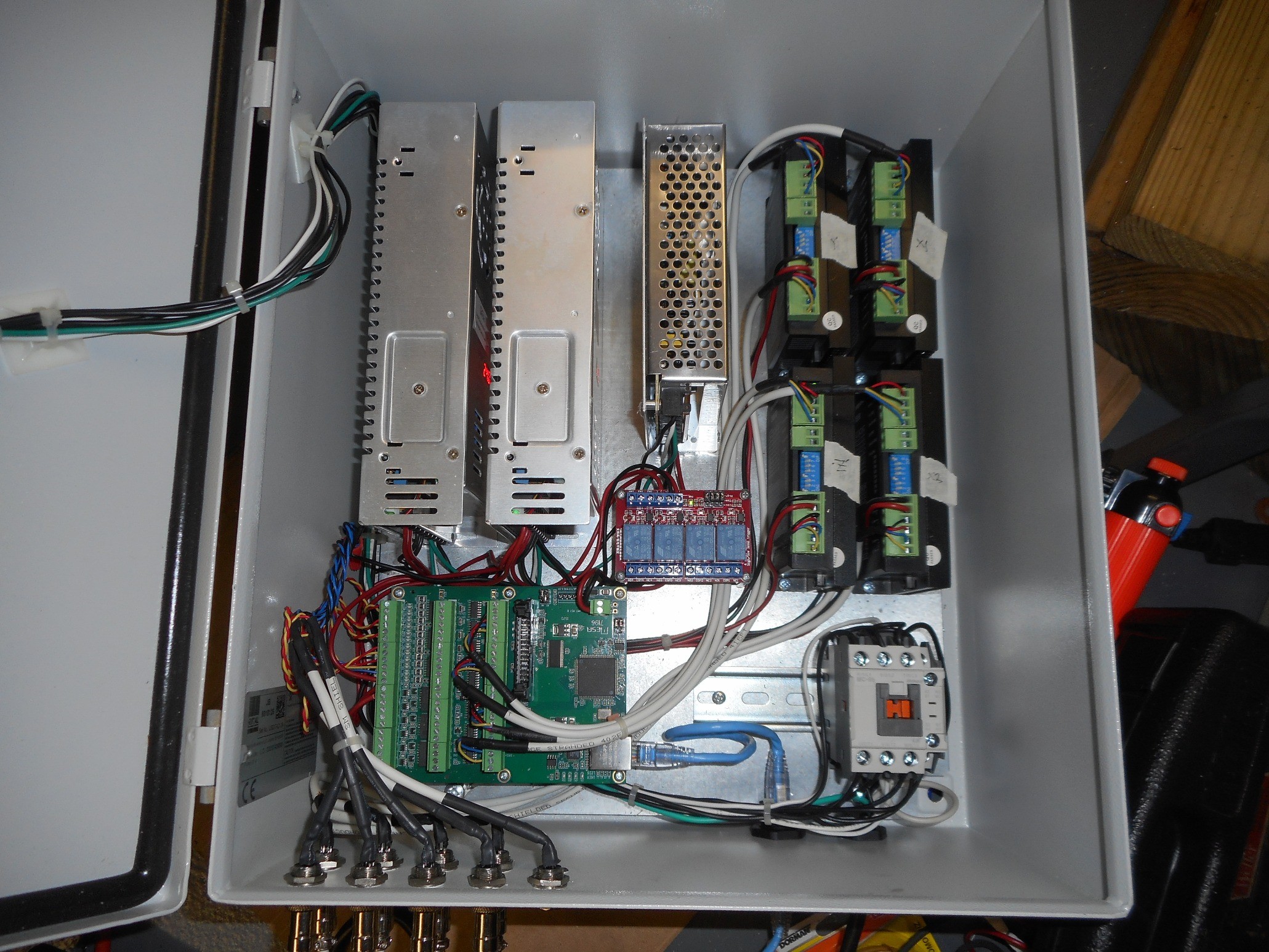

Just so you know, not all my wires are just twisted together.
Thanks again to those trying to help me.
Where else should I be looking?
Just so you know, not all my wires are just twisted together.
Thanks again to those trying to help me.
Attachments:
Please Log in or Create an account to join the conversation.
15 Oct 2021 03:18 #223157
by phillc54
Replied by phillc54 on topic Difficulties in probing
It should travel down fast (Setup Speed) until probe height is reached, then it should travel down slow (Probe Speed) until the switch is tripped, then it should move up very slow until the switch is off and then move up fast (Setup Speed) to Pierce Height.
If it trips the float float switch before it has moved down to probe height then it will move up until the float switch if off then it will move down at Probe Speed and follow the sequence above.
It you are tripping it by hand before probe height then you need to do trip it again after it begins moving down at Probe Speed.
If it trips the float float switch before it has moved down to probe height then it will move up until the float switch if off then it will move down at Probe Speed and follow the sequence above.
It you are tripping it by hand before probe height then you need to do trip it again after it begins moving down at Probe Speed.
Please Log in or Create an account to join the conversation.
15 Oct 2021 05:06 #223164
by Jflesburg
Replied by Jflesburg on topic Difficulties in probing
If I set the probe height in the settings less than the travel it takes for the float switch to trip, the direction changes and goes back to initial position at a slow speed. If I set the probe height in the settings greater than the travel it takes for the float switch to trip, it continues down after it trips the float switch. It seems that the directions are backwards once the float switch is tripped, but I don't know how to change that.
Please Log in or Create an account to join the conversation.
15 Oct 2021 05:10 #223166
by phillc54
Replied by phillc54 on topic Difficulties in probing
Probe Height is the height above the Z axis minimum limit (not the height above the slats), it is usually set to just above the highest material that you will cut.
Can you post your current config and I will make a sim and test it.
Can you post your current config and I will make a sim and test it.
Please Log in or Create an account to join the conversation.
15 Oct 2021 05:22 #223167
by phillc54
Replied by phillc54 on topic Difficulties in probing
Something doesn't look right with your earlier posted Z axis settings.
Can you confirm that when you jog Z plus that the Z axis moves up and when you jog Z minus it moves down.
Can you confirm that when you jog Z plus that the Z axis moves up and when you jog Z minus it moves down.
Please Log in or Create an account to join the conversation.
15 Oct 2021 05:47 #223169
by Jflesburg
Replied by Jflesburg on topic Difficulties in probing
No, when I jog Z plus, my Z axis travels down. My DRO Z also increases. I assumed "Home" was up. My "Home" limit switch is at the top, so when I home the z-axis, it travels all the way up. Do I have this somehow backwards?
Please Log in or Create an account to join the conversation.
15 Oct 2021 05:56 - 15 Oct 2021 06:00 #223171
by phillc54
Replied by phillc54 on topic Difficulties in probing
Yes it is a bit backwards.
You need have AXIS_Z MAX LIMIT and JOINT_3 MAX_LIMIT the same 70? (or 100)?
set the following JOINT_3 paramaters:
STEP_SCALE = -200.0 (negative will reverse the motor direction so it is correct)
HOME = 65 (or 95)
HOME_OFFSET = (72 or 102)
HOME_SEARCH_VEL = 20.000000
HOME_LATCH_VEL = 1.000000
HOME_FINAL_VEL = 10.000000
EDIT: Here is a diagram of a Z axis (we should add it to the PlasmaC docs):
linuxcnc.org/docs/devel/html/plasma/qtpl...tml#qt_initial-setup
You need have AXIS_Z MAX LIMIT and JOINT_3 MAX_LIMIT the same 70? (or 100)?
set the following JOINT_3 paramaters:
STEP_SCALE = -200.0 (negative will reverse the motor direction so it is correct)
HOME = 65 (or 95)
HOME_OFFSET = (72 or 102)
HOME_SEARCH_VEL = 20.000000
HOME_LATCH_VEL = 1.000000
HOME_FINAL_VEL = 10.000000
EDIT: Here is a diagram of a Z axis (we should add it to the PlasmaC docs):
linuxcnc.org/docs/devel/html/plasma/qtpl...tml#qt_initial-setup
Last edit: 15 Oct 2021 06:00 by phillc54.
The following user(s) said Thank You: Jflesburg
Please Log in or Create an account to join the conversation.
15 Oct 2021 06:50 #223173
by Jflesburg
Replied by Jflesburg on topic Difficulties in probing
Thank you so much! This solved the issue entirely. Now I can tune it in and finish it up. Then I probably need to make the move to QtPlasmaC.
Please Log in or Create an account to join the conversation.
15 Oct 2021 06:58 #223174
by phillc54
Replied by phillc54 on topic Difficulties in probing
No worries, sorry it took me so long to see the error ...
Please Log in or Create an account to join the conversation.
- snowgoer540
-
- Offline
- Moderator
-
Less
More
- Posts: 2362
- Thank you received: 763
15 Oct 2021 09:41 #223183
by snowgoer540
Replied by snowgoer540 on topic Difficulties in probing
Sorry I never saw the issue
