Thank you for the time and effort. Would it be possible to integrate the plamac i/o,it would be greatly appreciated and maybe a tool tip that you can type in GUi field whatever setup you want to use

I am trying to do a closed loop spindle configuration, but the spindle menu is locked not active. What should I do for +-10v sample configuration . Thanks!

Note that spindles can be run from PWM or step/dir outputs
in addition to analog outputs

Hi JT,
I just did a fresh install of linuxCNC 2.9.3 and MesaCT 2.1.4.

Things that I notice & happen-
When I run the software the info panel reports LinuxCNC version 2.9.0 not 2.9.3

1. I enter the machine name and check load this config & backup config.

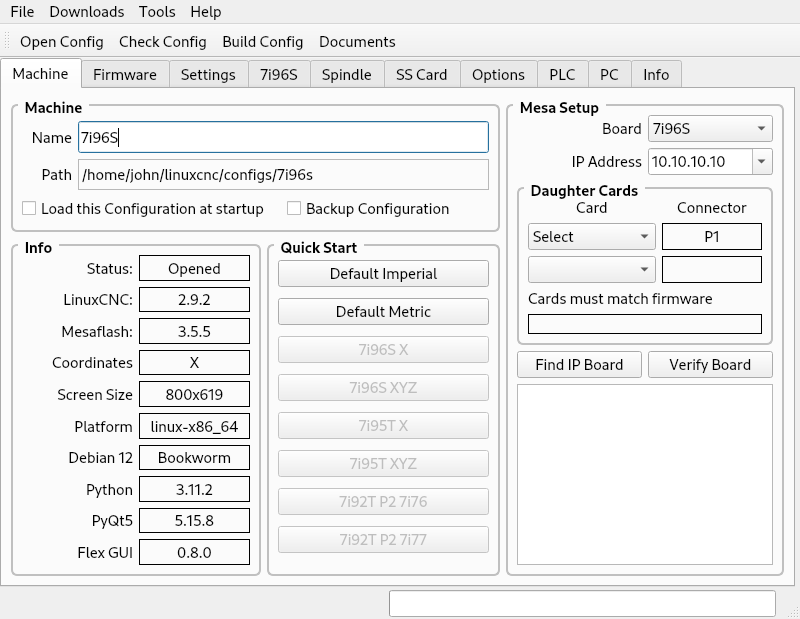

2. When I press default Metric for the linear units, the info in 1. above disappears. In fact if I enter the Mesa setup, verify the board then press Default metric all that information disappears as well. Is this normal behavior for the software?

Also noticed step 3 in your help "Select Max Linear Velocity" does not exist on the Machine tab but it does on the Settings tab.



"qtplasmac" "plasmac" are the 2 components that would need to be added i believe those get loaded with the ui their pins arent visible in the config hal file.
i think the options needed would be to add qtplasmac in gui dropdown then there is a gui options tab ,and user buttons
for the inputs pnconf has plasma in the first layer of the dropdown menu then
Arc Ok / plasmac:arc-ok-in
==> db_arc-ok.in
<== hm2_7i96.0.gpio.001.in
Ohmic contact / plasmac:ohmic-sense-in
==> plasmac.ohmic-sense-in
Float switch / plasmac:float-switch
==> db_float.in
plasmac:float-switch-out
<== db_float.out
==> plasmac.float-switch
==> qtplasmac.led_float_switch
Break away / plasmac:breakaway-switch-out
<== db_breakaway.out
==> plasmac.breakaway
==> qtplasmac.led_breakaway_switch
Move up / plasmac:move-up
==> plasmac.move-up
Move down / plasmac:move-down
==> plasmac.move-down
for the outputs
ohmic enable / plasmac:ohmic-enable
==> ohmicsense.is-probing
<== plasmac.ohmic-enable
scribe arm / plasmac:scribe-arm-delay
==> plasmac.scribe-arm-delay
<== qtplasmac.scribe_arm_delay-f
scribe on / plasmac:scribe-start
==> plasmac.scribe-start
<== spindle.1.on
torch on / plasmac:torch-on
==> hm2_7i96.0.ssr.00.out-00
<== plasmac.torch-on
==> qtplasmac.led_torch_on
laser on /plasmac:laser-on
==> hm2_7i96.0.ssr.00.out-01
<== qtplasmac.laser_on
in an encoder option
Arc voltage / plasmac:arc-voltage-in
<== hm2_7i96.0.encoder.00.velocity
==> plasmac.arc-voltage-in
those are the main connections made in pnconf

i wish i could be more help with this since im asking
