QT C++ graphics display WIDGET
30 Aug 2021 21:39 - 30 Aug 2021 23:22 #219195
by Grotius
Replied by Grotius on topic QT C++ graphics display WIDGET
Hi,
A video of the widget:
user-images.githubusercontent.com/448801...89b-8cbdac8a2e88.mp4

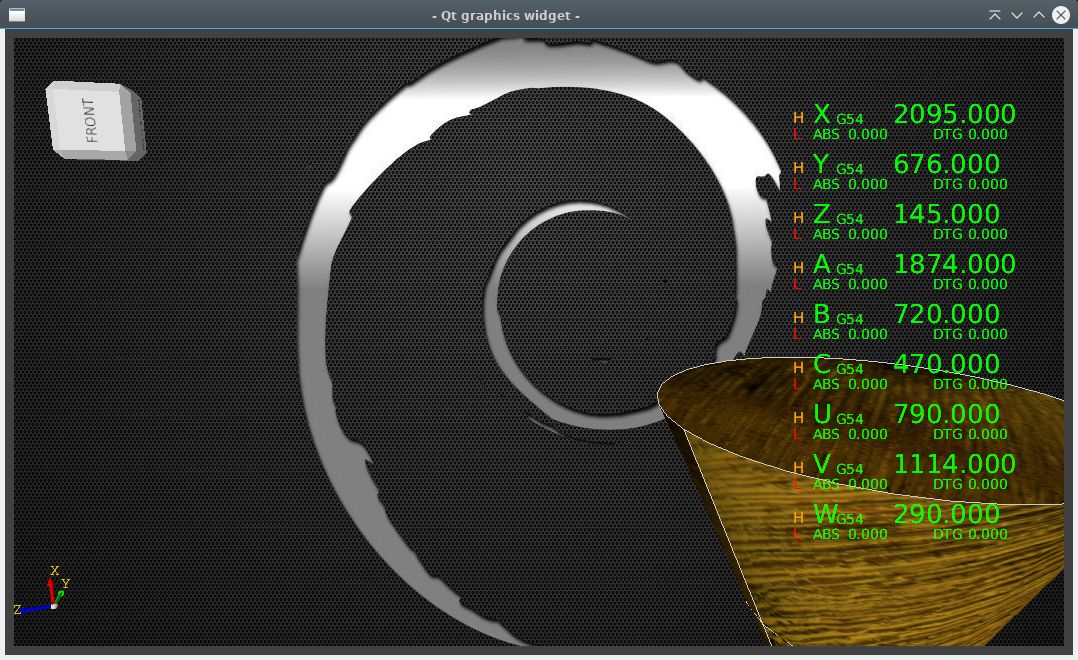

A picture of the widget:
A video of the widget:
user-images.githubusercontent.com/448801...89b-8cbdac8a2e88.mp4

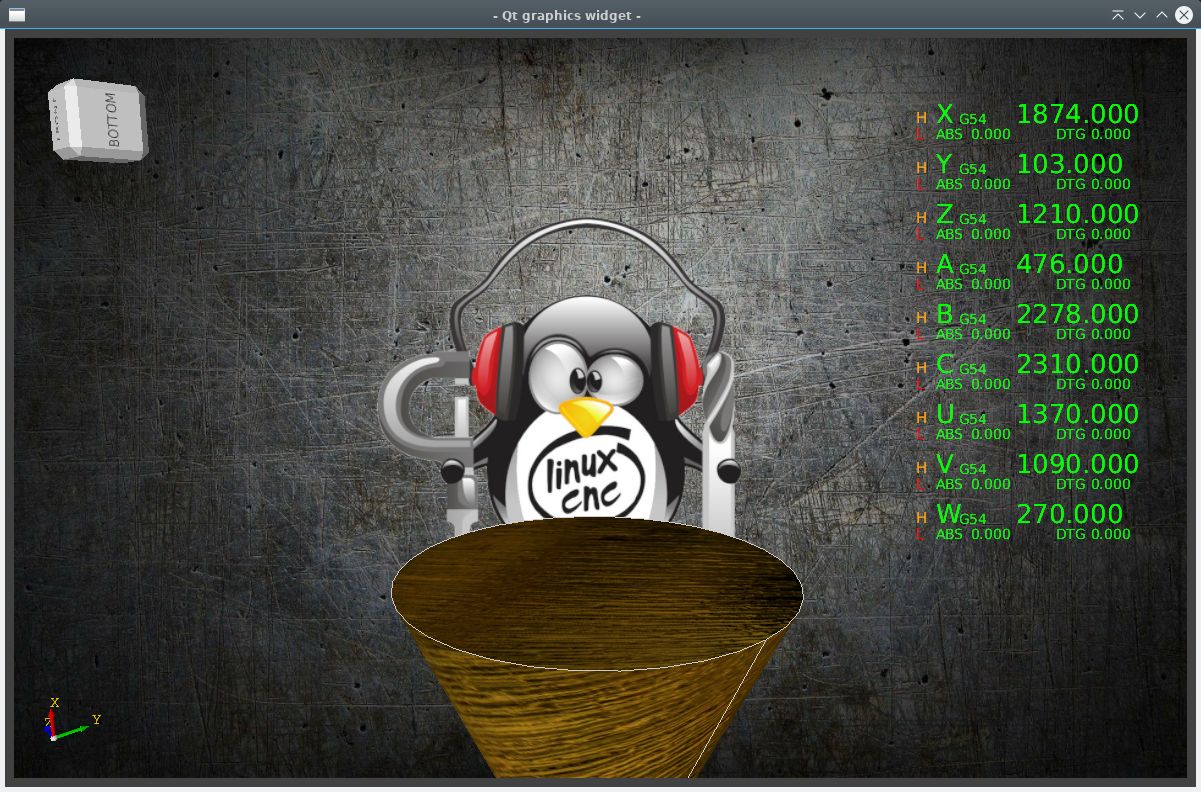

A picture of the widget:
Attachments:
Please Log in or Create an account to join the conversation.
31 Aug 2021 02:29 #219211
by Reinhard
Replied by Reinhard on topic QT C++ graphics display WIDGET
Hi Grotius,
impressive work
Some words about dro style of gmoccapy:
*imho* its a big wastage of space. You don't need relative and absolute coordinates at the same time. Showing G54 does not make sense, as linux backend does not update that value in time.
And a symbol for hitting limit switch? - That situation is a vital error, which should stop the machine imediatelly.
The old machines I use at work have to be turned off to clear limit switch errors. So for that error you could use a fullscreen error message. Its not needed to waste space of graphical widget.
impressive work
Some words about dro style of gmoccapy:
*imho* its a big wastage of space. You don't need relative and absolute coordinates at the same time. Showing G54 does not make sense, as linux backend does not update that value in time.
And a symbol for hitting limit switch? - That situation is a vital error, which should stop the machine imediatelly.
The old machines I use at work have to be turned off to clear limit switch errors. So for that error you could use a fullscreen error message. Its not needed to waste space of graphical widget.
Please Log in or Create an account to join the conversation.
31 Aug 2021 14:41 #219254
by Reinhard
Replied by Reinhard on topic QT C++ graphics display WIDGET
Hi Grotius,

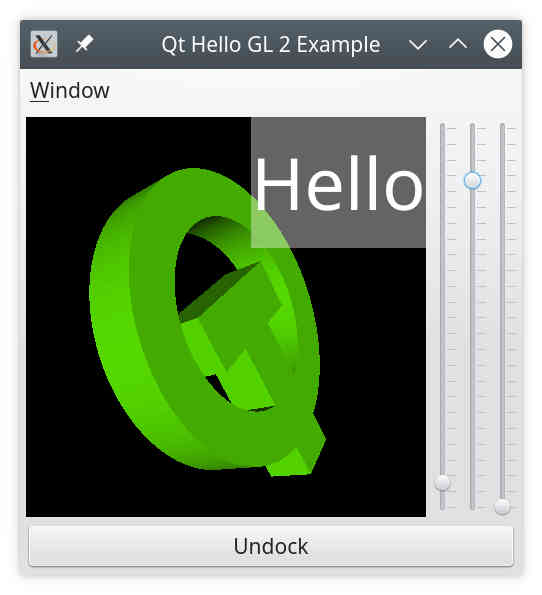

a quick shot at QOpenGLWidget - no problem creating transparent overlay widgets.
So if QOpenGLWidget is usable as base for graphic output, then dro and graphic widgets could be separated and i.e. make it configurable, if dro should be painted at overlay location or outside of graphic widget.
Changed code looks like:
and changed constructor:
Cheers Reinhard
a quick shot at QOpenGLWidget - no problem creating transparent overlay widgets.
So if QOpenGLWidget is usable as base for graphic output, then dro and graphic widgets could be separated and i.e. make it configurable, if dro should be painted at overlay location or outside of graphic widget.
Changed code looks like:
class Window : public QWidget
{
Q_OBJECT
public:
Window(MainWindow *mw);
protected:
void keyPressEvent(QKeyEvent *event) override;
private slots:
void dockUndock();
private:
QSlider *createSlider();
GLWidget *glWidget;
QSlider *xSlider;
QSlider *ySlider;
QSlider *zSlider;
QPushButton *dockBtn;
QLabel *overlay;
MainWindow *mainWindow;
};and changed constructor:
Window::Window(MainWindow *mw)
: mainWindow(mw)
{
glWidget = new GLWidget;
xSlider = createSlider();
ySlider = createSlider();
zSlider = createSlider();
connect(xSlider, &QSlider::valueChanged, glWidget, &GLWidget::setXRotation);
connect(glWidget, &GLWidget::xRotationChanged, xSlider, &QSlider::setValue);
connect(ySlider, &QSlider::valueChanged, glWidget, &GLWidget::setYRotation);
connect(glWidget, &GLWidget::yRotationChanged, ySlider, &QSlider::setValue);
connect(zSlider, &QSlider::valueChanged, glWidget, &GLWidget::setZRotation);
connect(glWidget, &GLWidget::zRotationChanged, zSlider, &QSlider::setValue);
#ifdef REDNOSE
QVBoxLayout *mainLayout = new QVBoxLayout;
QHBoxLayout *container = new QHBoxLayout;
container->addWidget(glWidget);
container->addWidget(xSlider);
container->addWidget(ySlider);
container->addWidget(zSlider);
QWidget *w = new QWidget;
w->setLayout(container);
mainLayout->addWidget(w);
dockBtn = new QPushButton(tr("Undock"), this);
mainLayout->addWidget(dockBtn);
#else
QGridLayout* mainLayout = new QGridLayout;
overlay = new QLabel(tr("Hello"));
overlay->setStyleSheet("color: white; background: rgba(255,255,255,100);");
overlay->setFont(QFont(overlay->font().family(), 34, QFont::Bold));
mainLayout->setColumnStretch(0, 1);
mainLayout->setColumnStretch(1, 1);
mainLayout->setColumnStretch(2, 1);
mainLayout->addWidget(glWidget, 0, 0, 3, 3);
mainLayout->addWidget(overlay, 0, 2);
mainLayout->addWidget(xSlider, 0, 3, 3, 1);
mainLayout->addWidget(ySlider, 0, 4, 3, 1);
mainLayout->addWidget(zSlider, 0, 5, 3, 1);
dockBtn = new QPushButton(tr("Undock"), this);
mainLayout->addWidget(dockBtn, 4, 0, 1, -1);
#endif
setLayout(mainLayout);
connect(dockBtn, &QPushButton::clicked, this, &Window::dockUndock);
xSlider->setValue(15 * 16);
ySlider->setValue(345 * 16);
zSlider->setValue(0 * 16);
setWindowTitle(tr("Hello GL"));
}
Cheers Reinhard
Attachments:
Please Log in or Create an account to join the conversation.
31 Aug 2021 18:34 #219268
by Grotius
Replied by Grotius on topic QT C++ graphics display WIDGET
Hi Reinhard,
Thanks for your suggestion.

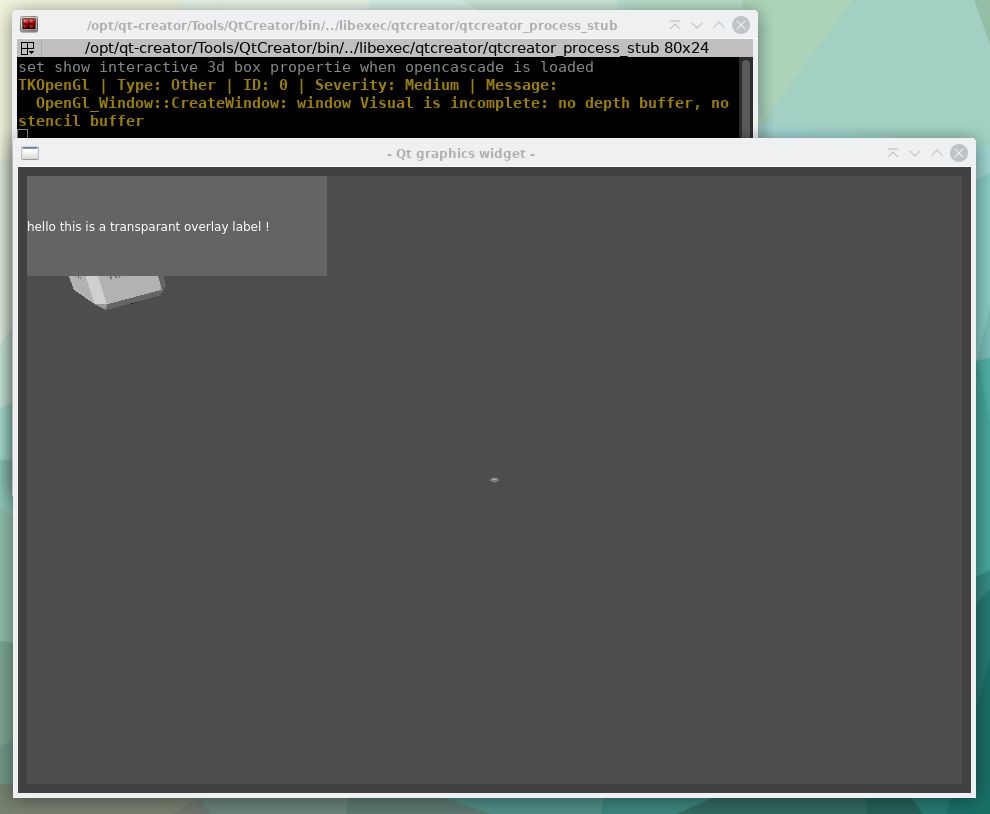

No luck with the QopenGlwidget and Opencascade combination.
The result is still the same, no tranceparancy. The QGlwidget is working better.
Thanks for your suggestion.
No luck with the QopenGlwidget and Opencascade combination.
The result is still the same, no tranceparancy. The QGlwidget is working better.
Attachments:
Please Log in or Create an account to join the conversation.
03 Sep 2021 14:13 #219520
by Grotius
Replied by Grotius on topic QT C++ graphics display WIDGET
Hi,
Before finishing the c++ widget i thought maybe test the widget first if it's compatible with Python3.
You know, i'm no Python guru. But it would'nt be my style to leave it that way.
I don't know how Chris would make the interface with python, but i had to investegate this, and picked up a try :
I came accros this python example that creates a Python lib from a C++ lib : github.com/eyllanesc/Qt5toPyQt5/tree/master/src
Offcourse it did'nt work right away. I had to download and compile from source : sip-4.19.25 and PyQt5-15.4
Then it didn't work.
I had to include extra lib path's in the configure.py file of the github.com/eyllanesc/Qt5toPyQt5/tree/master/src example.
Attached the edited configure.py file for info.
Then i got the python modules and created a test script : test.py
Please don't look at my fragile python code style.

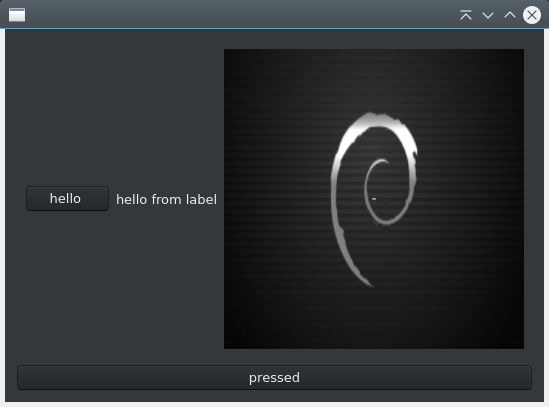

The python gui loaded and displaying the opencascade widget.
Trough the property system i could set the opencascade background picture.
So the QProperty system is also working oke for Python.
Before finishing the c++ widget i thought maybe test the widget first if it's compatible with Python3.
You know, i'm no Python guru. But it would'nt be my style to leave it that way.
I don't know how Chris would make the interface with python, but i had to investegate this, and picked up a try :
I came accros this python example that creates a Python lib from a C++ lib : github.com/eyllanesc/Qt5toPyQt5/tree/master/src
Offcourse it did'nt work right away. I had to download and compile from source : sip-4.19.25 and PyQt5-15.4
Then it didn't work.
I had to include extra lib path's in the configure.py file of the github.com/eyllanesc/Qt5toPyQt5/tree/master/src example.
Attached the edited configure.py file for info.
Then i got the python modules and created a test script : test.py
Please don't look at my fragile python code style.
The python gui loaded and displaying the opencascade widget.
Trough the property system i could set the opencascade background picture.
So the QProperty system is also working oke for Python.
Please Log in or Create an account to join the conversation.
03 Sep 2021 14:17 #219521
by Grotius
Replied by Grotius on topic QT C++ graphics display WIDGET
And one extra thing i can say : It's quite responsive.
Oke with this knowledge and if Chris can give his approval for the integration style, i can go on with this.
Oke with this knowledge and if Chris can give his approval for the integration style, i can go on with this.
Please Log in or Create an account to join the conversation.
