  • GDTH
  • GDTH's Avatar
19 Apr 2025 11:52
Replied by GDTH on topic 7i80db 7i77 + 7i76 serup Hal conf

7i80db 7i77 + 7i76 serup Hal conf

Category: Driver Boards

do you mean this?
  • GDTH
  • GDTH's Avatar
19 Apr 2025 11:48
Replied by GDTH on topic 7i80db 7i77 + 7i76 serup Hal conf

7i80db 7i77 + 7i76 serup Hal conf

Category: Driver Boards

in case the hal and ini files are needed
  • tommylight
  • tommylight's Avatar
19 Apr 2025 11:48
Replied by tommylight on topic 7i80db 7i77 + 7i76 serup Hal conf

7i80db 7i77 + 7i76 serup Hal conf

Category: Driver Boards

Do they show in "show hal configuration" from the "machine" menu?
  • tommylight
  • tommylight's Avatar
19 Apr 2025 11:46 - 19 Apr 2025 11:49
Replied by tommylight on topic 7i95T & 7i77

7i95T & 7i77

Category: Basic Configuration

i also found the 7i77 servo tune post, wich I am currently reading to get used to what I need to do in future.

Is it this one?
forum.linuxcnc.org/10-advanced-configura...ning-detailed-how-to
No skipping steps there!!! :)
And you can not ignore feedback on analog servo systems if the motors are mounted on the machine, that ends up badly. But for testing on the table/desk you can, although there is no benefit to it, feedback must be sorted before even enabling the drives.
  • GDTH
  • GDTH's Avatar
19 Apr 2025 11:44
Replied by GDTH on topic 7i80db 7i77 + 7i76 serup Hal conf

7i80db 7i77 + 7i76 serup Hal conf

Category: Driver Boards

i already have that.
Or able to see that from the data?
  • tommylight
  • tommylight's Avatar
19 Apr 2025 11:42
Replied by tommylight on topic 7i80db 7i77 + 7i76 serup Hal conf

7i80db 7i77 + 7i76 serup Hal conf

Category: Driver Boards

OK,
Mesa 7i76 to connector J2
Mesa 7i77 to connector J4
  • BloodyT
  • BloodyT
19 Apr 2025 11:40
Replied by BloodyT on topic 7i95T & 7i77

7i95T & 7i77

Category: Basic Configuration

thanks!

7i72: oh shi.... sorry... I missed that somehow.
tried mesact with it, sadly does not put out any working stuff.
pncconf did!
machine is starting and I can jog until following error again.

in general:
if I don't want to wire encoders to the mesa, I have no feedback. so far I understand. But is that a bad thing? It would be like running with steppers open loop, isn't it?
I thought it should work, as it obviously did successfully with the old (now dead) controller before for years (so far I looked up all signals that came from the old controller was analog voltage, all feedback is in servo controllers)
if I connect back the error signal from the servo drives I should be able to estop if thinks go out of control. just like I know from another project with stepper drives. that at least was my thought to remove complexity , since I am completely new to servos.
is that a completely bad idea in your opinion?

In Office I can't test with motors because they are 400v... also the machine is a few km away and I am trying to prepare it, until I can come back to it.
I just wanted to test whether or not I get +-10v on the ports to make sure it's virtually wired correctly. Also I want to try if I can cancel movement with e-stop. is at least have to find a way to ignore feedback for now, to have room to elaborate my config. it would be kind of sad to drive there just to see I missed something essential to test-drive or tune.

i also found the 7i77 servo tune post, wich I am currently reading to get used to what I need to do in future.

any workflows / hints appreciated.
as I said, I am a beginner and just trying to figure out things, bumping into new stuff on the way

Thanks for your patience and answers
  • GDTH
  • GDTH's Avatar
19 Apr 2025 11:39
Replied by GDTH on topic 7i80db 7i77 + 7i76 serup Hal conf

7i80db 7i77 + 7i76 serup Hal conf

Category: Driver Boards

mesaflash --device ETHER --readhmid --addr 192.168.1.121 gives:
Configuration Name: HOSTMOT2

General configuration information:

  BoardName : MESA7I80
  FPGA Size: 25 KGates
  FPGA Pins: 256
  Number of IO Ports: 4
  Width of one I/O port: 17
  Clock Low frequency: 100.0000 MHz
  Clock High frequency: 200.0000 MHz
  IDROM Type: 3
  Instance Stride 0: 4
  Instance Stride 1: 64
  Register Stride 0: 256
  Register Stride 1: 256

Modules in configuration:

  Module: WatchDog
  There are 1 of WatchDog in configuration
  Version: 0
  Registers: 3
  BaseAddress: 0C00
  ClockFrequency: 100.000 MHz
  Register Stride: 256 bytes
  Instance Stride: 4 bytes

  Module: IOPort
  There are 4 of IOPort in configuration
  Version: 0
  Registers: 5
  BaseAddress: 1000
  ClockFrequency: 100.000 MHz
  Register Stride: 256 bytes
  Instance Stride: 4 bytes

  Module: MuxedQCount
  There are 16 of MuxedQCount in configuration
  Version: 3
  Registers: 5
  BaseAddress: 3500
  ClockFrequency: 100.000 MHz
  Register Stride: 256 bytes
  Instance Stride: 4 bytes

  Module: MuxedQCountSel
  There are 1 of MuxedQCountSel in configuration
  Version: 0
  Registers: 0
  BaseAddress: 0000
  ClockFrequency: 100.000 MHz
  Register Stride: 256 bytes
  Instance Stride: 4 bytes

  Module: StepGen
  There are 16 of StepGen in configuration
  Version: 2
  Registers: 10
  BaseAddress: 2000
  ClockFrequency: 100.000 MHz
  Register Stride: 256 bytes
  Instance Stride: 4 bytes

  Module: SSerial
  There are 2 of SSerial in configuration
  Version: 0
  Registers: 6
  BaseAddress: 5A00
  ClockFrequency: 100.000 MHz
  Register Stride: 256 bytes
  Instance Stride: 64 bytes

  Module: LED
  There are 1 of LED in configuration
  Version: 0
  Registers: 1
  BaseAddress: 0200
  ClockFrequency: 100.000 MHz
  Register Stride: 256 bytes
  Instance Stride: 4 bytes

Configuration pin-out:

IO Connections for J2
DB25 pin#             I/O   Pri. func    Sec. func        Chan     Sec. Pin func   Sec. Pin Dir

 1                      0   IOPort       StepGen          0        Dir/Table2      (Out)
14                      1   IOPort       StepGen          0        Step/Table1     (Out)
 2                      2   IOPort       StepGen          1        Dir/Table2      (Out)
15                      3   IOPort       StepGen          1        Step/Table1     (Out)
 3                      4   IOPort       StepGen          2        Dir/Table2      (Out)
16                      5   IOPort       StepGen          2        Step/Table1     (Out)
 4                      6   IOPort       StepGen          3        Dir/Table2      (Out)
17                      7   IOPort       StepGen          3        Step/Table1     (Out)
 5                      8   IOPort       StepGen          4        Dir/Table2      (Out)
 6                      9   IOPort       StepGen          4        Step/Table1     (Out)
 7                     10   IOPort       SSerial          0        TXData0         (Out)
 8                     11   IOPort       SSerial          0        RXData0         (In)
 9                     12   IOPort       SSerial          0        TXData1         (Out)
10                     13   IOPort       SSerial          0        RXData1         (In)
11                     14   IOPort       MuxedQCount      6        MuxQ-IDX        (In)
12                     15   IOPort       MuxedQCount      6        MuxQ-B          (In)
13                     16   IOPort       MuxedQCount      6        MuxQ-A          (In)

IO Connections for J3
DB25 pin#             I/O   Pri. func    Sec. func        Chan     Sec. Pin func   Sec. Pin Dir

 1                     17   IOPort       StepGen          5        Dir/Table2      (Out)
14                     18   IOPort       StepGen          5        Step/Table1     (Out)
 2                     19   IOPort       StepGen          6        Dir/Table2      (Out)
15                     20   IOPort       StepGen          6        Step/Table1     (Out)
 3                     21   IOPort       StepGen          7        Dir/Table2      (Out)
16                     22   IOPort       StepGen          7        Step/Table1     (Out)
 4                     23   IOPort       StepGen          8        Dir/Table2      (Out)
17                     24   IOPort       StepGen          8        Step/Table1     (Out)
 5                     25   IOPort       StepGen          9        Dir/Table2      (Out)
 6                     26   IOPort       StepGen          9        Step/Table1     (Out)
 7                     27   IOPort       SSerial          0        TXData2         (Out)
 8                     28   IOPort       SSerial          0        RXData2         (In)
 9                     29   IOPort       SSerial          0        TXData3         (Out)
10                     30   IOPort       SSerial          0        RXData3         (In)
11                     31   IOPort       MuxedQCount      7        MuxQ-IDX        (In)
12                     32   IOPort       MuxedQCount      7        MuxQ-B          (In)
13                     33   IOPort       MuxedQCount      7        MuxQ-A          (In)

IO Connections for J4
DB25 pin#             I/O   Pri. func    Sec. func        Chan     Sec. Pin func   Sec. Pin Dir

 1                     34   IOPort       SSerial          1        TXEn2           (Out)
14                     35   IOPort       SSerial          1        TXData2         (Out)
 2                     36   IOPort       SSerial          1        RXData2         (In)
15                     37   IOPort       SSerial          1        TXData1         (Out)
 3                     38   IOPort       SSerial          1        RXData1         (In)
16                     39   IOPort       SSerial          1        TXData0         (Out)
 4                     40   IOPort       SSerial          1        RXData0         (In)
17                     41   IOPort       MuxedQCountSel   0        MuxSel0         (Out)
 5                     42   IOPort       MuxedQCount      0        MuxQ-A          (In)
 6                     43   IOPort       MuxedQCount      0        MuxQ-B          (In)
 7                     44   IOPort       MuxedQCount      0        MuxQ-IDX        (In)
 8                     45   IOPort       MuxedQCount      1        MuxQ-A          (In)
 9                     46   IOPort       MuxedQCount      1        MuxQ-B          (In)
10                     47   IOPort       MuxedQCount      1        MuxQ-IDX        (In)
11                     48   IOPort       MuxedQCount      2        MuxQ-A          (In)
12                     49   IOPort       MuxedQCount      2        MuxQ-B          (In)
13                     50   IOPort       MuxedQCount      2        MuxQ-IDX        (In)

IO Connections for J5
DB25 pin#             I/O   Pri. func    Sec. func        Chan     Sec. Pin func   Sec. Pin Dir

 1                     51   IOPort       SSerial          1        TXEn5           (Out)
14                     52   IOPort       SSerial          1        TXData5         (Out)
 2                     53   IOPort       SSerial          1        RXData5         (In)
15                     54   IOPort       SSerial          1        TXData4         (Out)
 3                     55   IOPort       SSerial          1        RXData4         (In)
16                     56   IOPort       SSerial          1        TXData3         (Out)
 4                     57   IOPort       SSerial          1        RXData3         (In)
17                     58   IOPort       MuxedQCountSel   6        MuxSel0         (Out)
 5                     59   IOPort       MuxedQCount      3        MuxQ-A          (In)
 6                     60   IOPort       MuxedQCount      3        MuxQ-B          (In)
 7                     61   IOPort       MuxedQCount      3        MuxQ-IDX        (In)
 8                     62   IOPort       MuxedQCount      4        MuxQ-A          (In)
 9                     63   IOPort       MuxedQCount      4        MuxQ-B          (In)
10                     64   IOPort       MuxedQCount      4        MuxQ-IDX        (In)
11                     65   IOPort       MuxedQCount      5        MuxQ-A          (In)
12                     66   IOPort       MuxedQCount      5        MuxQ-B          (In)
13                     67   IOPort       MuxedQCount      5        MuxQ-IDX        (In)
  • tommylight
  • tommylight's Avatar
19 Apr 2025 11:35
Replied by tommylight on topic 7i80db 7i77 + 7i76 serup Hal conf

7i80db 7i77 + 7i76 serup Hal conf

Category: Driver Boards

What does
mesaflash --device ETHER --readhmid
report?
  • GDTH
  • GDTH's Avatar
19 Apr 2025 11:31
7i80db 7i77 + 7i76 serup Hal conf was created by GDTH

7i80db 7i77 + 7i76 serup Hal conf

Category: Driver Boards

Hello,

I am trying to get a 7i80db-25 working with a 7i77 and a 7i76. I have installed a bitfile that should make this possible. When I start up linuxcnc I am not able to find the 7i77 and 7i76 board in the Hal conf. I was expecting something like hm2_7i80.0.7i77.input.

Am I doing something wrong or is it normal to just have a gpio list. If so how do I know what is connected to what.


  • tommylight
  • tommylight's Avatar
19 Apr 2025 11:30 - 19 Apr 2025 11:38
Replied by tommylight on topic Remora - ethernet NVEM / EC300 / EC500 cnc board

Remora - ethernet NVEM / EC300 / EC500 cnc board

Category: Computers and Hardware

As requested, deleted the empty posts.
For future reference, all users are able to delete their own posts.
Edit:
Apparently you did try and failed to delete the posts.
Can you edit them?
-
No matter what or how, feel free to do the same, namely request us to delete the posts.
Thank you.
  • tommylight
  • tommylight's Avatar
19 Apr 2025 11:27
Replied by tommylight on topic Black Friday Deal got me :)

Black Friday Deal got me :)

Category: Plasma & Laser

Music was nice! :)
  • IB_CnC
  • IB_CnC
19 Apr 2025 10:45 - 19 Apr 2025 10:50

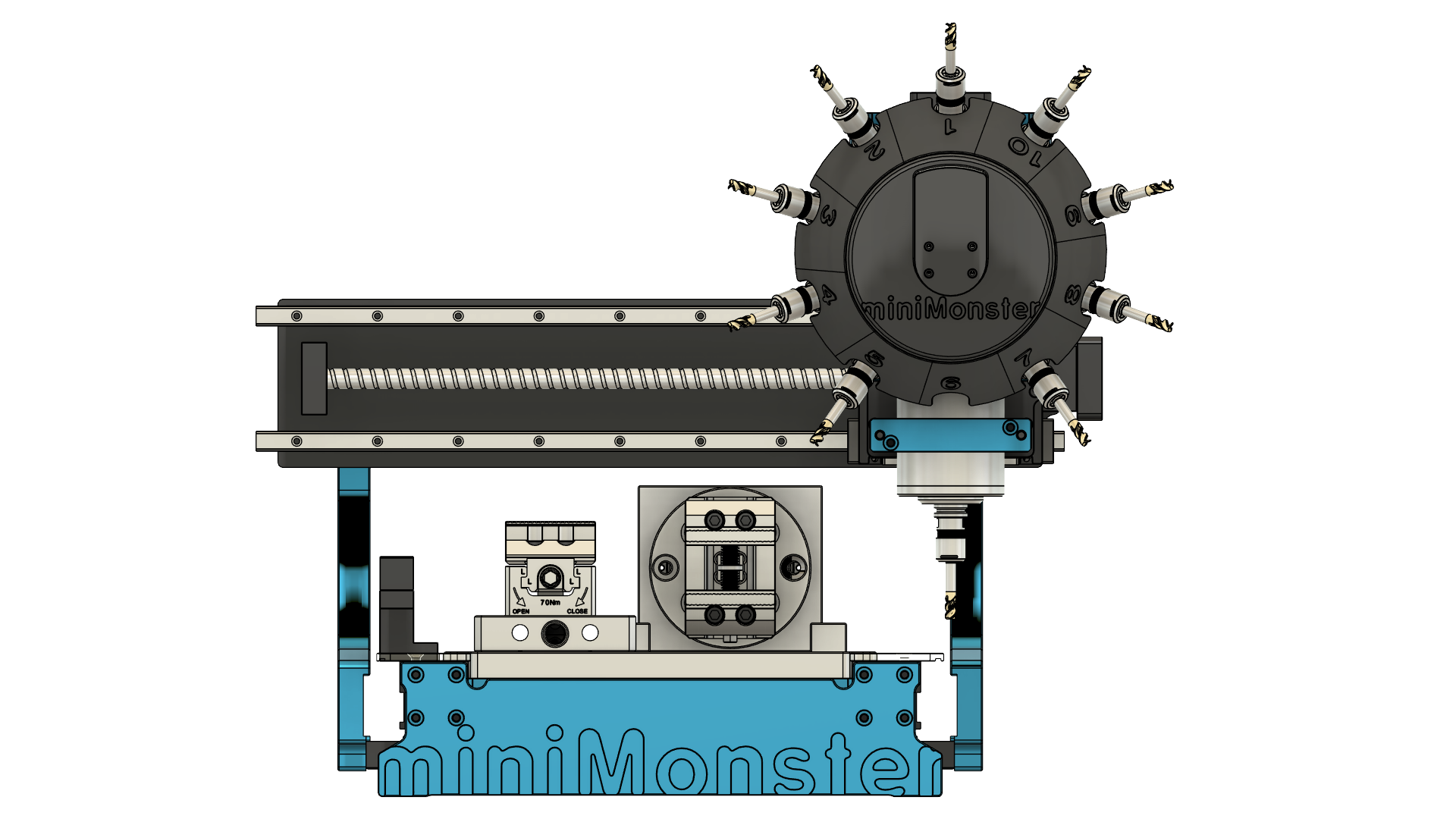

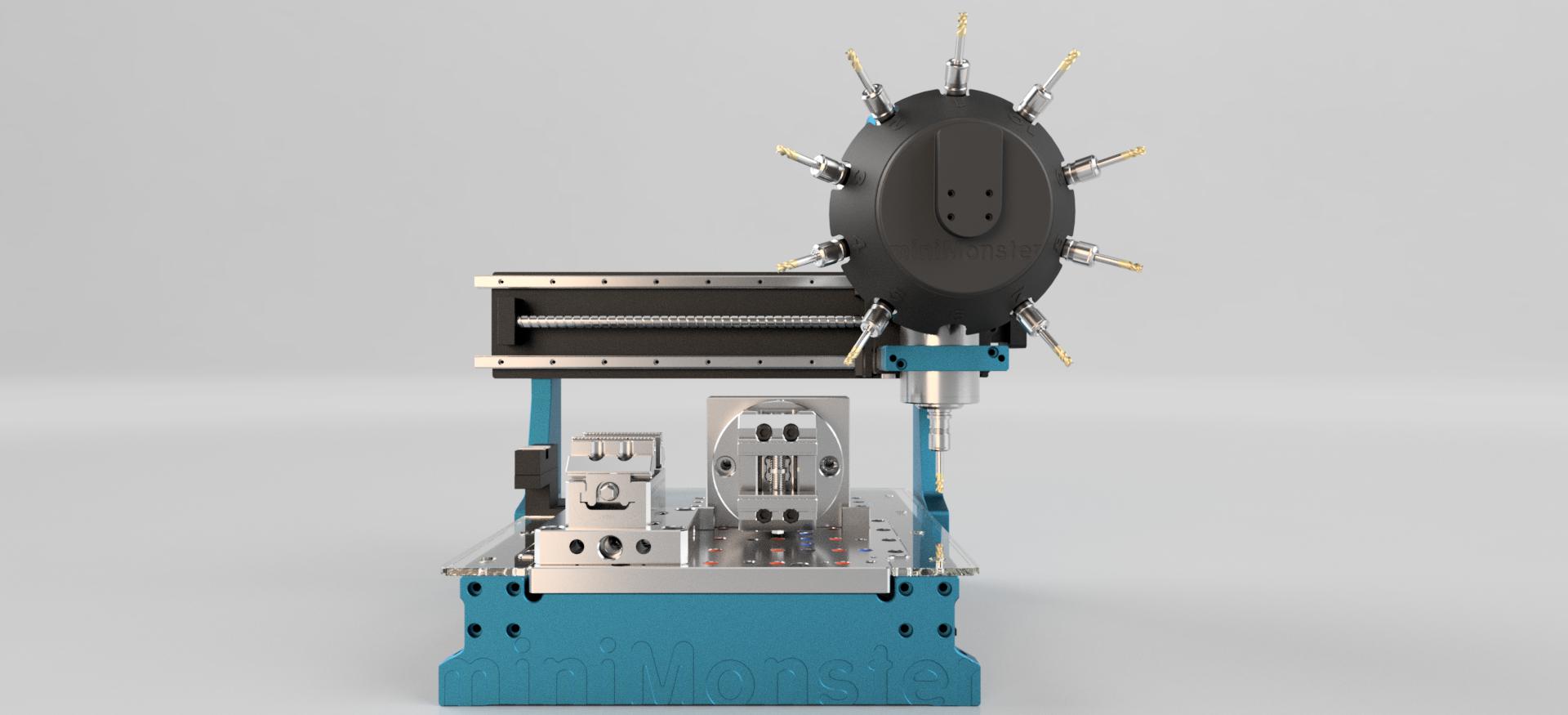

Replied by IB_CnC on topic Probe Basic and Carousel ATC with Geneva and Stepper

Probe Basic and Carousel ATC with Geneva and Stepper

Category: QtPyVCP

I think I already found most of what I was looking for, as I just found:
github.com/kcjengr/probe_basic/blob/main...toolchange_index.hal :-))

Still have to find out the best approach to map the stepper drive signal in velocity mode to
net car-ccw motion.digital-out-03
net car-cw motion.digital-out-04

  • IB_CnC
  • IB_CnC
19 Apr 2025 10:34 - 19 Apr 2025 10:38
Probe Basic and Carousel ATC with Geneva and Stepper was created by IB_CnC

Probe Basic and Carousel ATC with Geneva and Stepper

Category: QtPyVCP

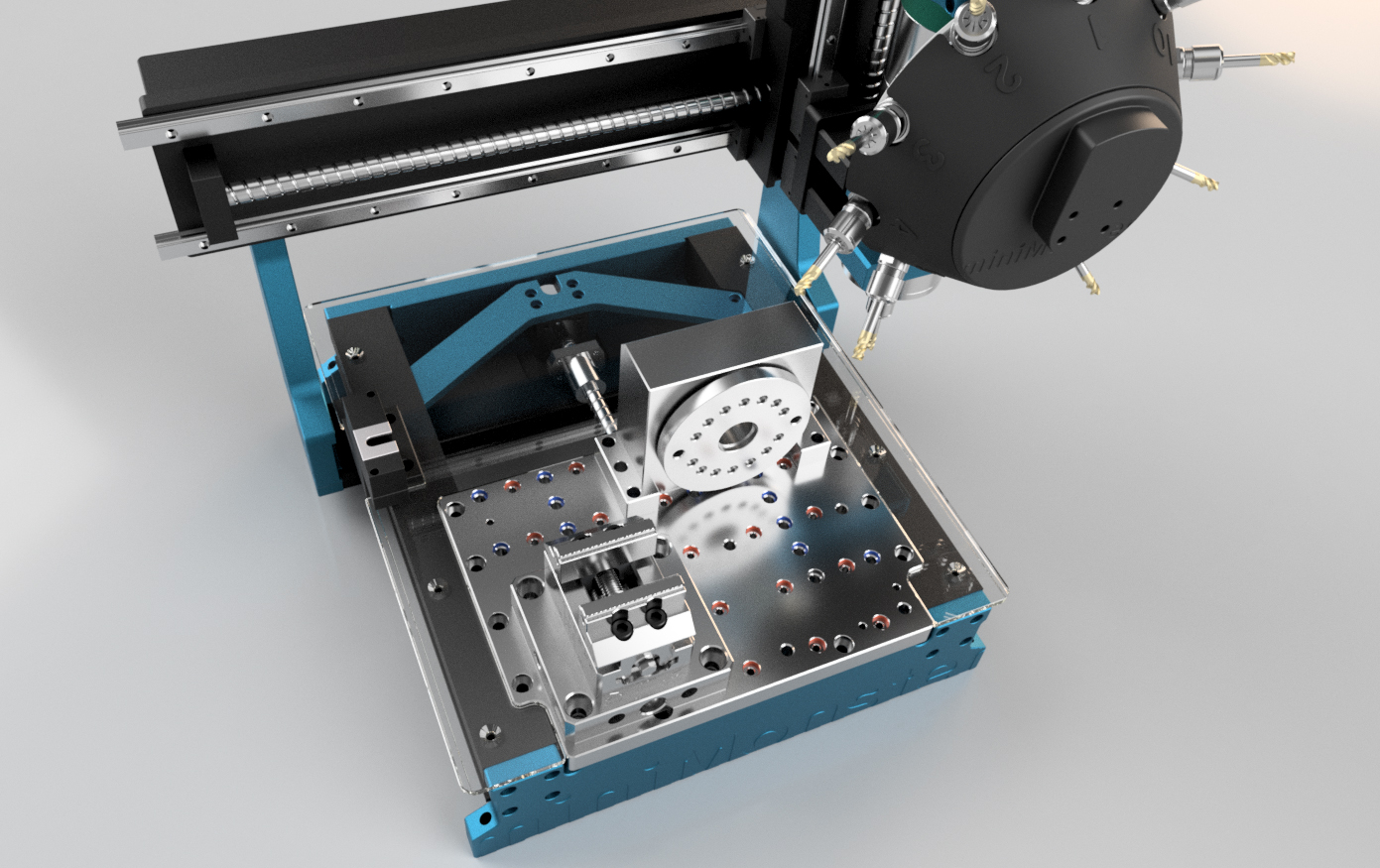

Hi, i've build a gantry piggy back toolchanger for my router, driven by a stepper (with gear reduction) and a geneva wheel, and am looking for some quick pointers.

At this point I've got it to rotate, creating an extra axis in HAL / INI, nothing else.

I was planning to use the stepper 'velocity mode' to drive the stepper.
I envision I need to place two proximity sensors:
  1. Prox sensor for homing pin
  2. Prox sensor to detect an index step, for counting logic of the pockets

    How does the base Probe Basic configuration handle pocket homing (locating pocket nr 1), counting pockets and the drive signals to the motor?

    Some clips of the geneva mechanism:






  • IB_CnC
  • IB_CnC
19 Apr 2025 10:27 - 20 Apr 2025 00:01
Replied by IB_CnC on topic Losing some values after PB restart

Losing some values after PB restart

Category: QtPyVCP

Small update:
After updating almost all values get stored and recalled correctly.

One exception seems to be the Spindle_zero.
If manually entered, it doesn't get stored and recalled.
If measured via subroutine, it does get stored an recalled on restart of PB.

(Subroutine folder is up to date)
Displaying 241 - 255 out of 26693 results.
  1. Forum
  3. Search
Time to create page: 0.244 seconds
Powered by Kunena Forum
