24 Sep 2019 17:51 #146102 by bevins
Replied by bevins on topic Bob's Plasmac Build

tommylight wrote: Lawyers ??? Oh Layers !
:)
Looks awesome. How long is that gantry ?


89"

Please Log in or Create an account to join the conversation.

More
24 Sep 2019 17:54 #146103 by bevins
Replied by bevins on topic Bob's Plasmac Build
I have to put float bearing then torch plate. USe magnets, and he wants to do 45 degree angle cuts. So I will add a wedge so he can just remove the torch, stick the wedge (with magnet) and stick the torch plate( with magnets) on.

Sounds nice theoretically, I don't know how well it will work though.

Please Log in or Create an account to join the conversation.

More
26 Nov 2019 01:06 #151269 by bevins
Replied by bevins on topic Bob's Plasmac Build

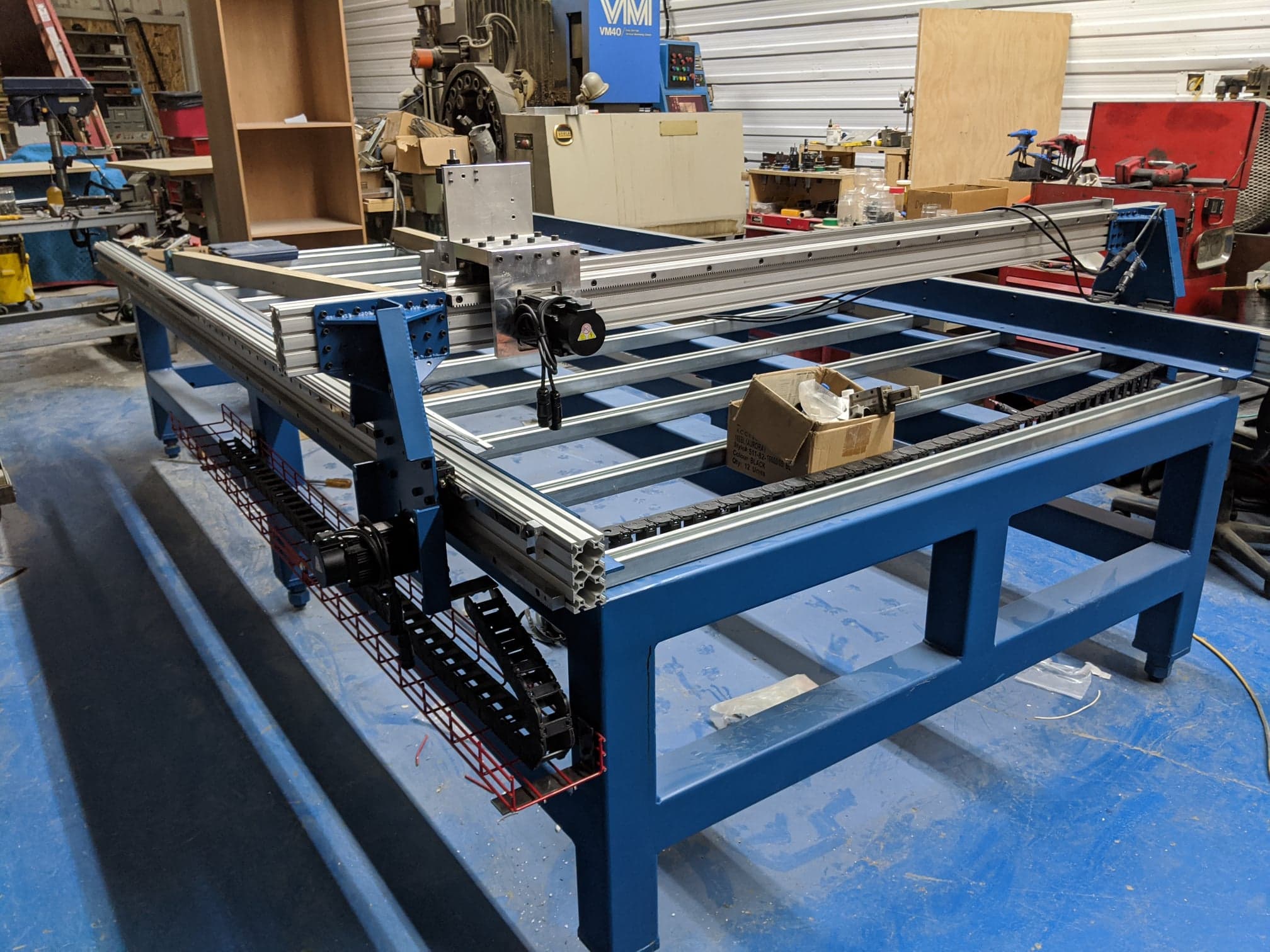

Some more candy....



Machine base is back from paint shop.

Attachments:
The following user(s) said Thank You: tommylight

Please Log in or Create an account to join the conversation.

More
26 Nov 2019 01:35 #151270 by tommylight
Replied by tommylight on topic Bob's Plasmac Build
You got 3 of them ! :woohoo:
Looking nice.

Please Log in or Create an account to join the conversation.

More
26 Nov 2019 03:22 #151281 by rodw
Replied by rodw on topic Bob's Plasmac Build
Here Bob, A couple of DXF's for you to mount THCADS on a DIN rail (single and double). Looks like you might need them.
Designed to use a Meanwell metal Din Rail mount.

File Attachment:

File Name: drive-down...-001.zip
File Size:9 KB
Attachments:

Please Log in or Create an account to join the conversation.

More
26 Nov 2019 12:14 #151290 by bevins
Replied by bevins on topic Bob's Plasmac Build

tommylight wrote: You got 3 of them ! :woohoo:
Looking nice.


I already have a thcad. I am working on two plasmas.
The following user(s) said Thank You: rodw

Please Log in or Create an account to join the conversation.

More
26 Nov 2019 12:16 #151291 by bevins
Replied by bevins on topic Bob's Plasmac Build

rodw wrote: Here Bob, A couple of DXF's for you to mount THCADS on a DIN rail (single and double). Looks like you might need them.
Designed to use a Meanwell metal Din Rail mount.

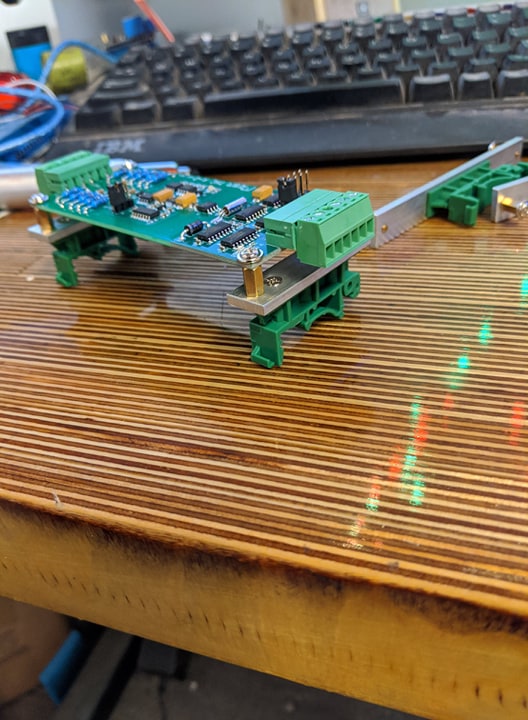

File Attachment:

File Name: drive-down...-001.zip
File Size:9 KB


I bought din rail mounts from JT..... I'll take a look at them though.

Thanks

Please Log in or Create an account to join the conversation.

More
26 Nov 2019 12:38 #151293 by rodw
Replied by rodw on topic Bob's Plasmac Build

bevins wrote:
I bought din rail mounts from JT..... I'll take a look at them though.

Thanks


Yeh but the THCAD has a different pitch between holes so JT's mounts won't work with the THCAD...Hence my plasma cuttable templates but heck I'm sure you can make do with a router for now! I used 1.6mm Ally sheet metal.

Please Log in or Create an account to join the conversation.

More
26 Nov 2019 13:35 #151294 by bevins
Replied by bevins on topic Bob's Plasmac Build

rodw wrote:

bevins wrote:
I bought din rail mounts from JT..... I'll take a look at them though.

Thanks


Yeh but the THCAD has a different pitch between holes so JT's mounts won't work with the THCAD...Hence my plasma cuttable templates but heck I'm sure you can make do with a router for now! I used 1.6mm Ally sheet metal.

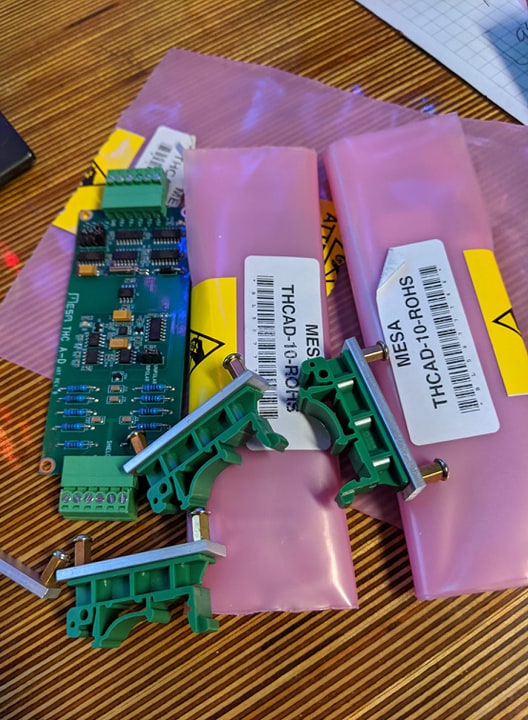

He has some specific for the thcad.

Attachments:
The following user(s) said Thank You: rodw, thefabricator03

Please Log in or Create an account to join the conversation.

More
29 Nov 2019 11:12 - 29 Nov 2019 11:13 #151490 by rodw
Replied by rodw on topic Bob's Plasmac Build

bevins wrote:
He has some specific for the thcad.

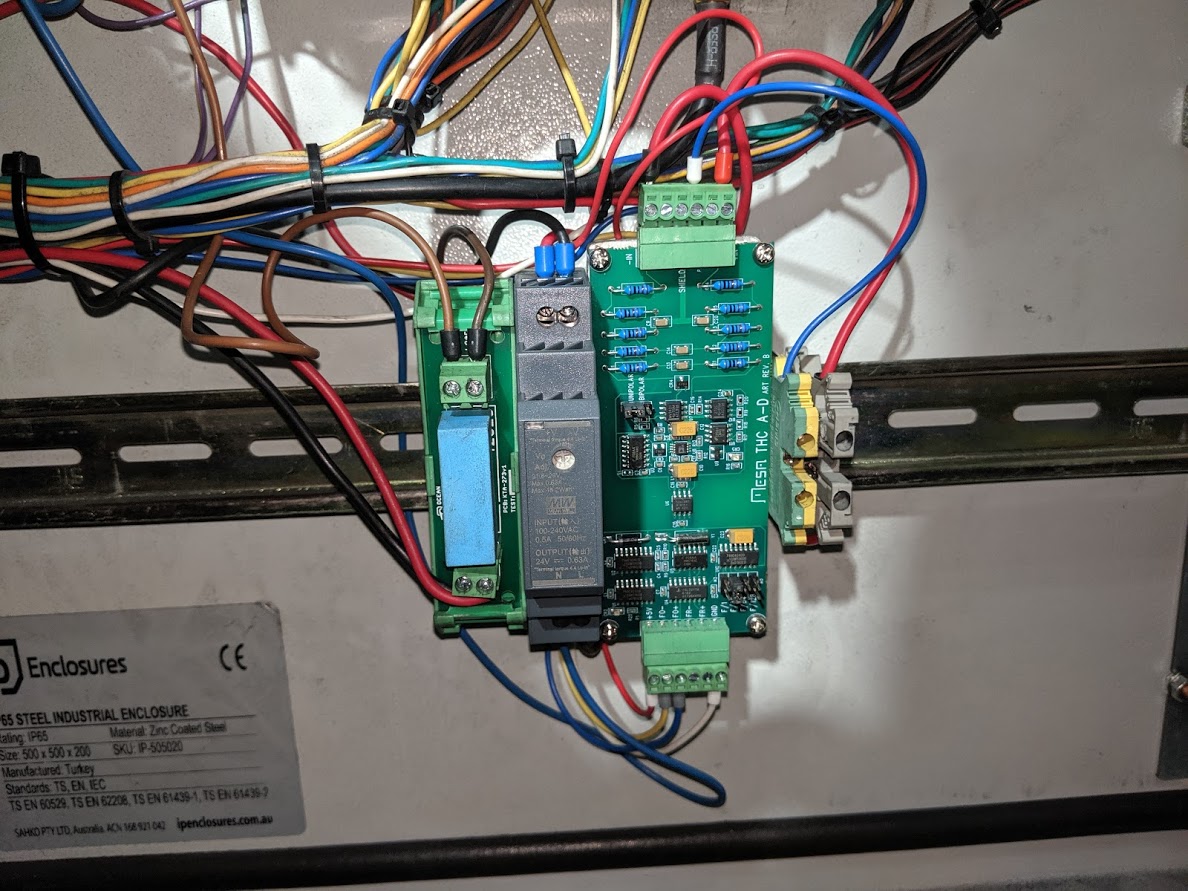

It seems the difference between JT's and my DXF is that his is very expensive in terms of the DIN rail they use.

If you cut the mount and used one of those clips to mount the plate, you would run the THCAD perpendicular with the rail


This layout makes more sense to me.
Attachments:
Last edit: 29 Nov 2019 11:13 by rodw.
