07 Oct 2020 11:05 #185232
by rodw

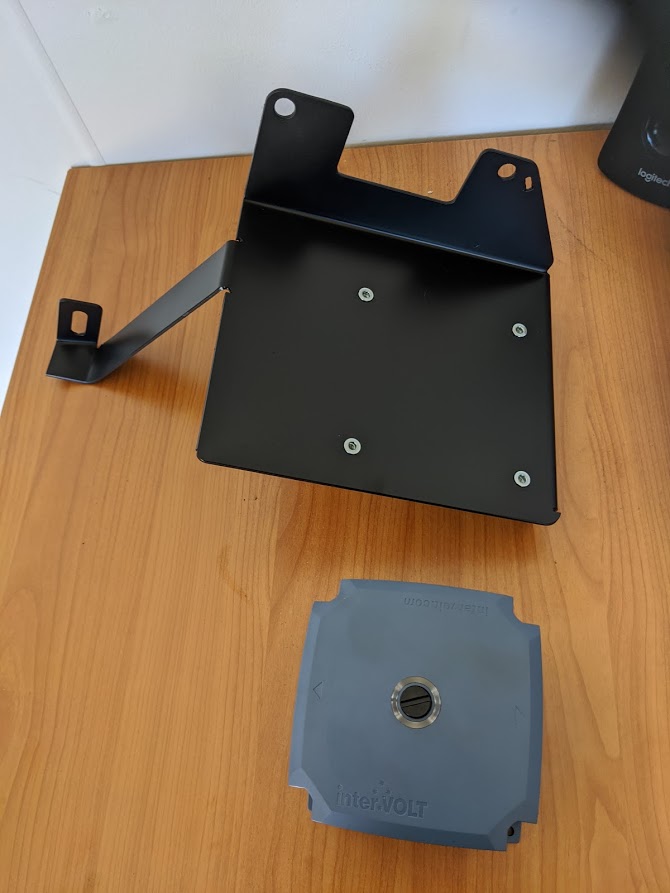

Its always interesting to see what people cut with their plasma cutter. The stuff we do is far more industrial. Like this prototype vehicle specific mounting bracket for a DC-DC battery charger we finished today. We are actually sending it to a customer in Bali tomorrow with a heap of other electrical parts that he finds hard to source.
We are finding it invaluable to be able to fold our own parts on a pressbrake. The CAD is sometimes hard without a 3D scanner, but we nailed this one, picking up 3 seperate mounting bolts to support the brackets on the second attempt! Its taken a while but I have finally got a better understanding of Fusion 360....
The manufacturer recommends the charger is mounted up near the radiator so it can stay cool, then has a light in the centre of the part that changes colour based on status so we could not just mount it on its side which would have been much easier.
We are finding it invaluable to be able to fold our own parts on a pressbrake. The CAD is sometimes hard without a 3D scanner, but we nailed this one, picking up 3 seperate mounting bolts to support the brackets on the second attempt! Its taken a while but I have finally got a better understanding of Fusion 360....
The manufacturer recommends the charger is mounted up near the radiator so it can stay cool, then has a light in the centre of the part that changes colour based on status so we could not just mount it on its side which would have been much easier.
Attachments:
The following user(s) said Thank You: thefabricator03, dvn4life1972
Please Log in or Create an account to join the conversation.
- dvn4life1972
- Offline
- Platinum Member
Less
More
- Posts: 401
- Thank you received: 168
07 Oct 2020 12:22 #185236
by dvn4life1972
Replied by dvn4life1972 on topic Photos
In my old fabrication business we made mostly parts and virtually nothing like what I'm cutting now (read whatever pays lol!). I cut my teeth on Autocad 2000, and let me tell you it earned every bit of it's reputation as a tricky thing to use.
I moved to Solidworks for design needs some years later and found it to be difficult to use due to it's simplicity in comparison to Autocad, but man it sure was nice doing 3D modeling with. Looks like nowadays Autodesk has responded nicely over that time period and I'm finding Fusion 360 very much easier to use than either of those other two.
P.S.
I have a 20T air/hydraulic finger brake. Invaluable piece of equipment for fabrication work!
I moved to Solidworks for design needs some years later and found it to be difficult to use due to it's simplicity in comparison to Autocad, but man it sure was nice doing 3D modeling with. Looks like nowadays Autodesk has responded nicely over that time period and I'm finding Fusion 360 very much easier to use than either of those other two.
P.S.
I have a 20T air/hydraulic finger brake. Invaluable piece of equipment for fabrication work!
The following user(s) said Thank You: rodw, thefabricator03
Please Log in or Create an account to join the conversation.
- snowgoer540
- Offline
- Moderator
Less
More
- Posts: 2388
- Thank you received: 779
24 Dec 2020 23:58 #193155
by snowgoer540
Replied by snowgoer540 on topic Photos
Cut these earlier in the week (video
here
). Finished these up today by powder coating them. Ornaments/gifts for the fam.
Attachments:
Please Log in or Create an account to join the conversation.
27 Feb 2021 19:12 #200331
by crowloy

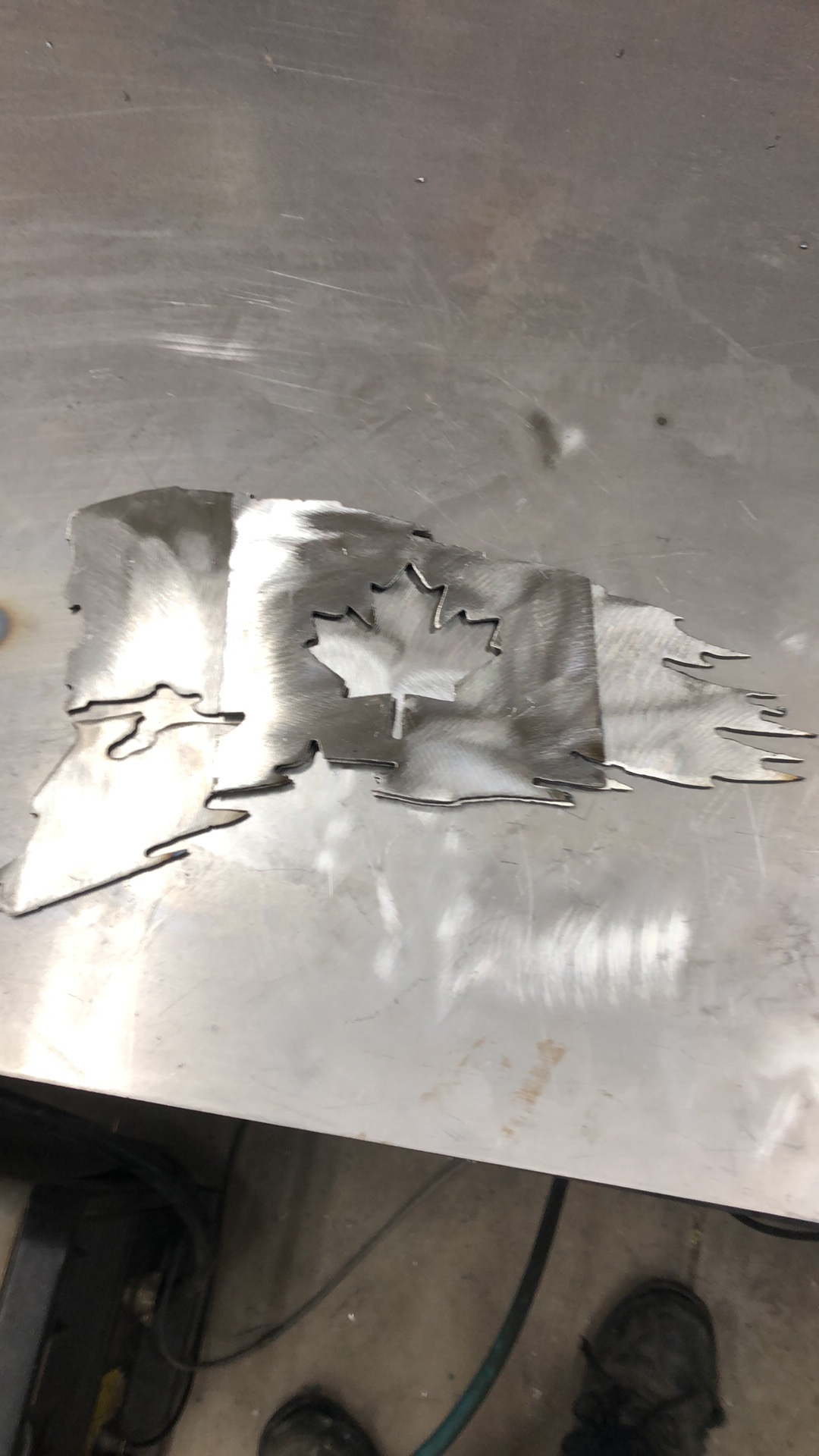

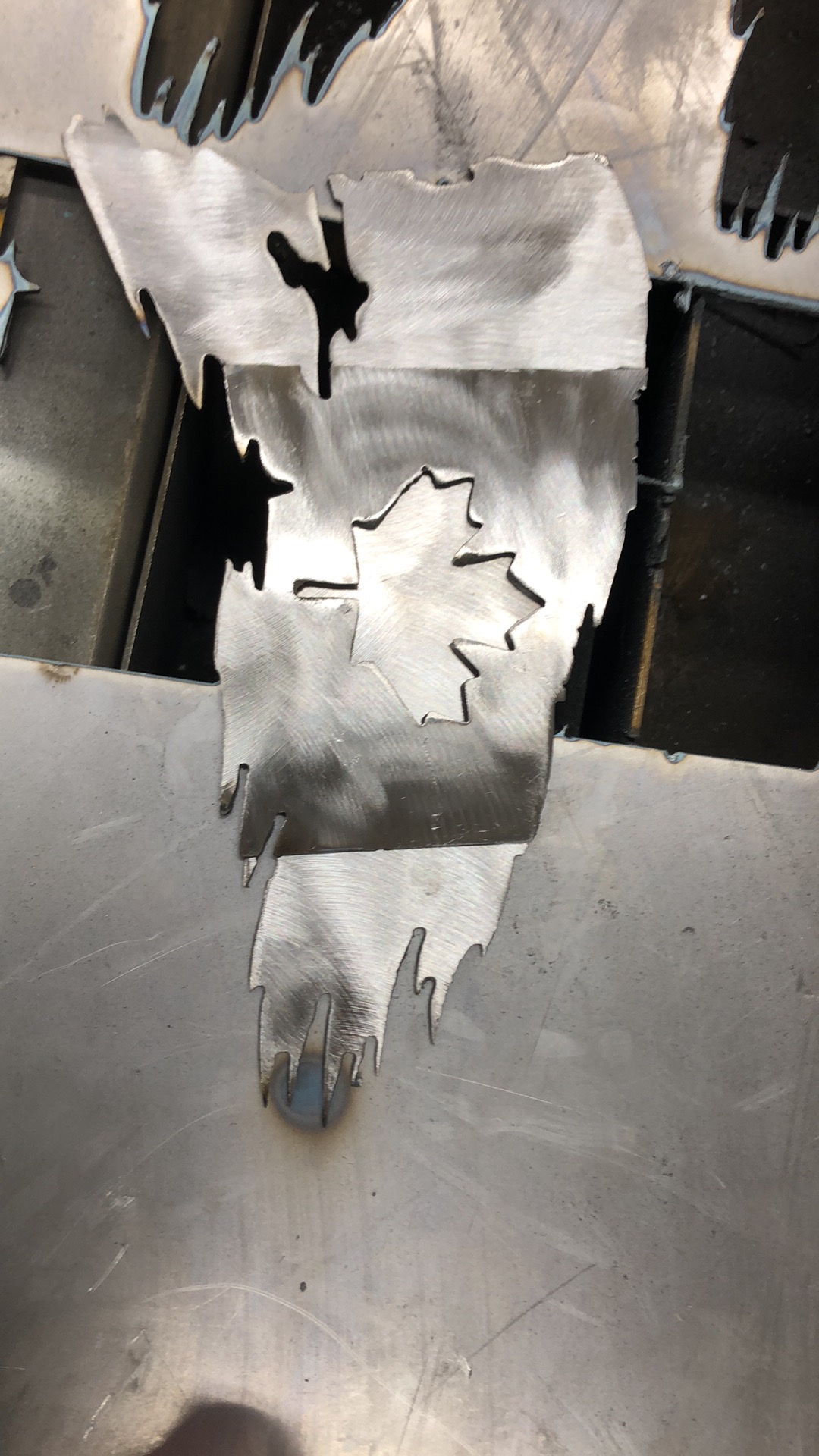

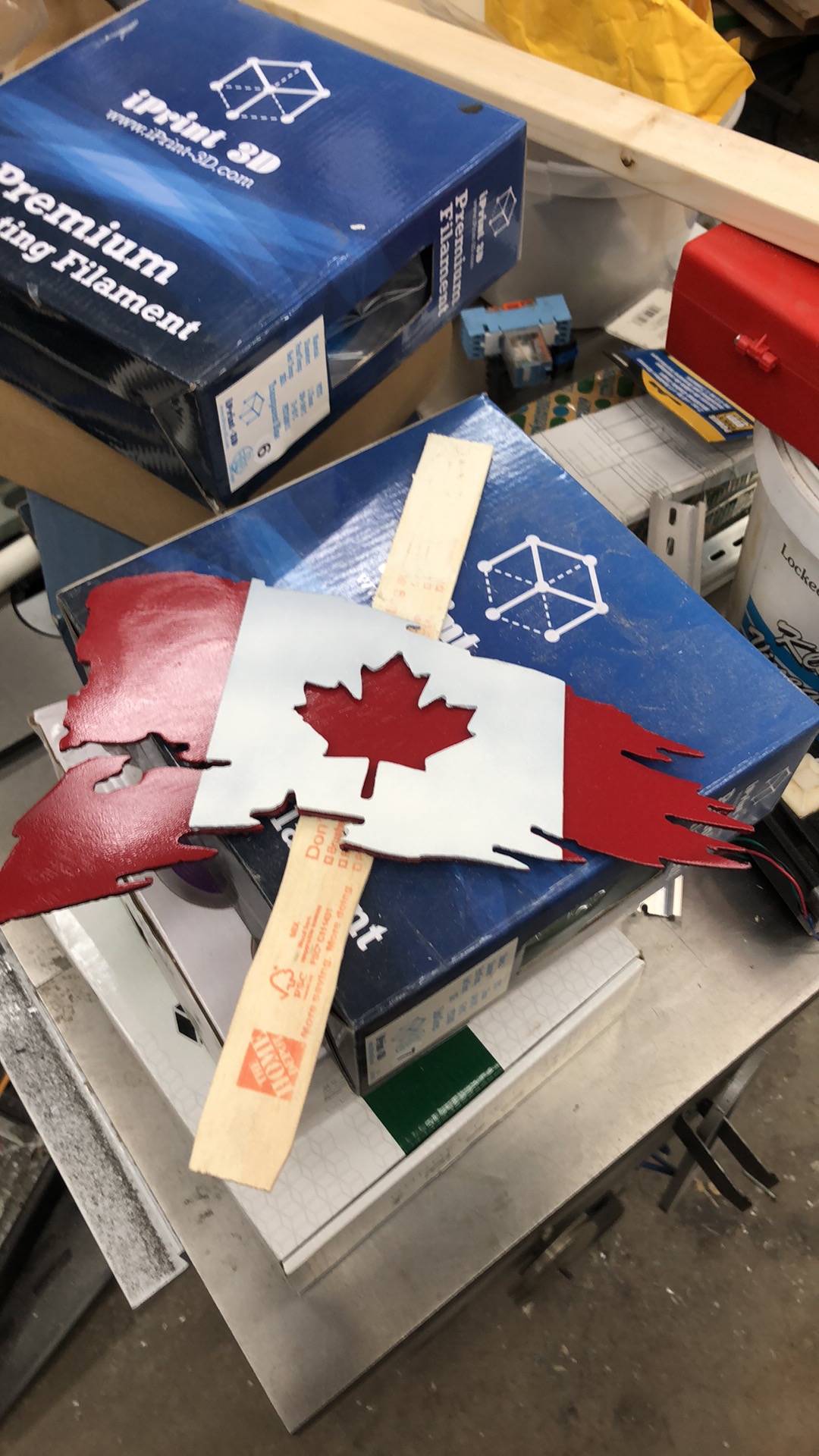

Since everyone else is I might as well. just finishing up a 4x4 table based on Making Stuff's video series. THC is working although my float switch just destroyed itself so, I'll be remaking a few parts on the 3d printer.
Anyways, this is my second cut. The first being a back scratcher which I don't have any pics of.
Anyways, this is my second cut. The first being a back scratcher which I don't have any pics of.
The following user(s) said Thank You: phillc54, tommylight, thefabricator03, snowgoer540, dvn4life1972
Please Log in or Create an account to join the conversation.
27 Feb 2021 20:20 #200338
by rodw
The wonderful powers of Plasmac!
My second cut was still a headscratcher! (preplasmac)
The first being a back scratcher which I don't have any pics of.
The wonderful powers of Plasmac!
My second cut was still a headscratcher! (preplasmac)
Please Log in or Create an account to join the conversation.
- tommylight
- Offline
- Moderator
Less
More
- Posts: 19300
- Thank you received: 6462
27 Feb 2021 21:08 #200343
by tommylight
Very nice, indeed.
Thank you.
Replied by tommylight on topic Photos
Back scratcher, head scratcher, i am lost !
The first being a back scratcher which I don't have any pics of.
The wonderful powers of Plasmac!
My second cut was still a headscratcher! (preplasmac)
Very nice, indeed.
Thank you.
Please Log in or Create an account to join the conversation.
27 Feb 2021 21:14 #200346
by rodw
Maybe you need an ass scratcher to add to your collection too
Back scratcher, head scratcher, i am lost !
The first being a back scratcher which I don't have any pics of.
The wonderful powers of Plasmac!
My second cut was still a headscratcher! (preplasmac)
Very nice, indeed.
Thank you.
Maybe you need an ass scratcher to add to your collection too
The following user(s) said Thank You: tommylight, thefabricator03
